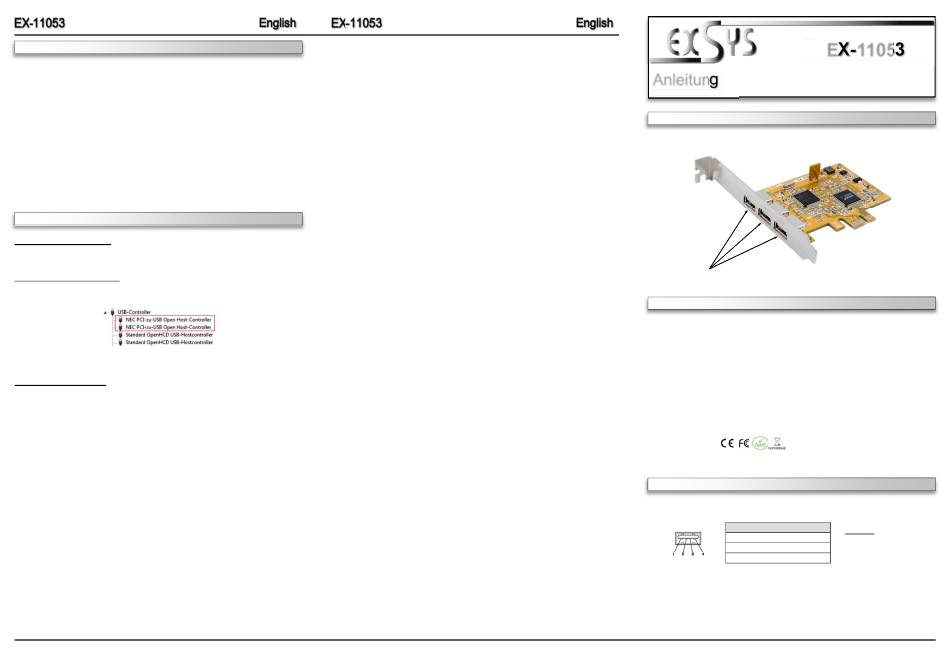

HARDWARE INSTALLATION
Please note the following installation instructions. Because there are large differences between the
PC's, we can give you only a general installation instructions for the EX-11053. Please refer your
computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Computer and
gently slide the cover off.
3. Locate an available PCI-Express expansion slot and insert the card. Make sure that the card
is plugged in correctly.
4. Then attach the card with a screw to the rear panel of the computer.
5. Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION
All Operating Systems
After the hardware installation, the operating system will recognize the device automatically and
install the drivers.
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „USB-Controller" the following new entry's:
If you see this or a similar information the device is installed correctly.
NEC Driver (optional)
If you experience any performance problems or if you want to use older operating systems
which doesn't support USB 2.0 such as Windows 98SE. You can download the driver at our
website www.exsys.de or you can find the driver on our driver CD. Then you can install the
optional VIA Drivers as follows. The driver are available up to Vista.
Open and run the file "U2v2_1.exe" by double click on your mouse and follow the setup pro-
gram to finish installation process. After that shut down windows and follow the instructions for
the Hardware installation. After installing the card simply start your computer and the card will
be recognized automatically by your system.
5
AUFBAU
J1, J3 & J4: 3x externe USB 2.0 A-Buchse
BESCHREIBUNG & TECHNISCHE DATEN

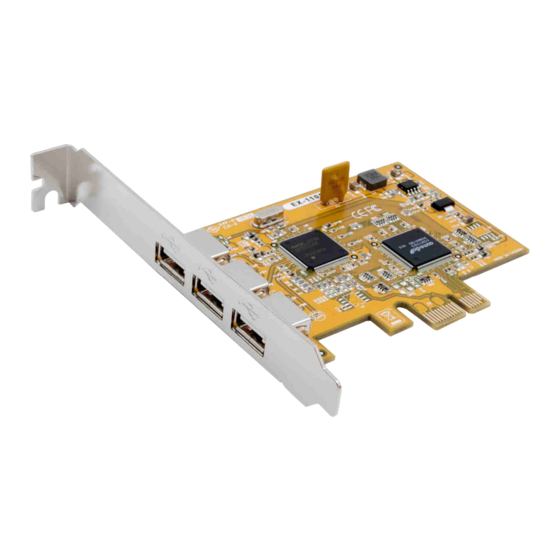

Die EX-11053 ist eine USB 2.0 PCI-Express Karte. Sie ist mit 3 externen Ports ausgestattet, die
jeweils 500mA Strom zu Verfügung stellen. Sie unterstützt alle PCI-Express Slots von x1 bis
x16. Der serielle PCI-Express Bus unterstützt optimal die Leistung des schnellen NEC Chipset.
Die USB Karte gewährleistet so eine sichere Datenübertragung und exzellente Performance
von bis zu 480Mbit/s! Die USB 2.0 PCI-Express Karten sind voll kompatibel mit Microsoft
Windows Standard OpenHCD Treibern und sind nach den Normen des USB Rev. 2.0 entwickelt
worden. Sie haben einen Dual Speed USB Transceiver. Die EX-11053 unterstützt alle USB
Anschlüsse von 1.1 bis 3.1.
Kompatibilität:
Betriebssysteme:
Anschlüsse:
Lieferumfang:
Zertifikate:
ANSCHLÜSSE
J1, J3 & J4:
6
EX-11053
Anleitung
Vers. 1.0 / 27.09.18
PCI-Express x1 bis x16
Windows ME/ 2000/ XP/ Vista/ 7/ 8.x/ 10/ Server 20xx/ MAC/ Linux
3x USB 2.0 A-Buchse extern
EX-11053, Low Profile Bügel, Anleitung
USB 2.0 Pin's
Pin Signal Pin Signal
1 VCC 3 DATA+
2 DATA- 4 GND
1
Achtung!
Bitte Stecker nie mit Gewalt
oder umgekehrt in den
Anschluss stecken!
