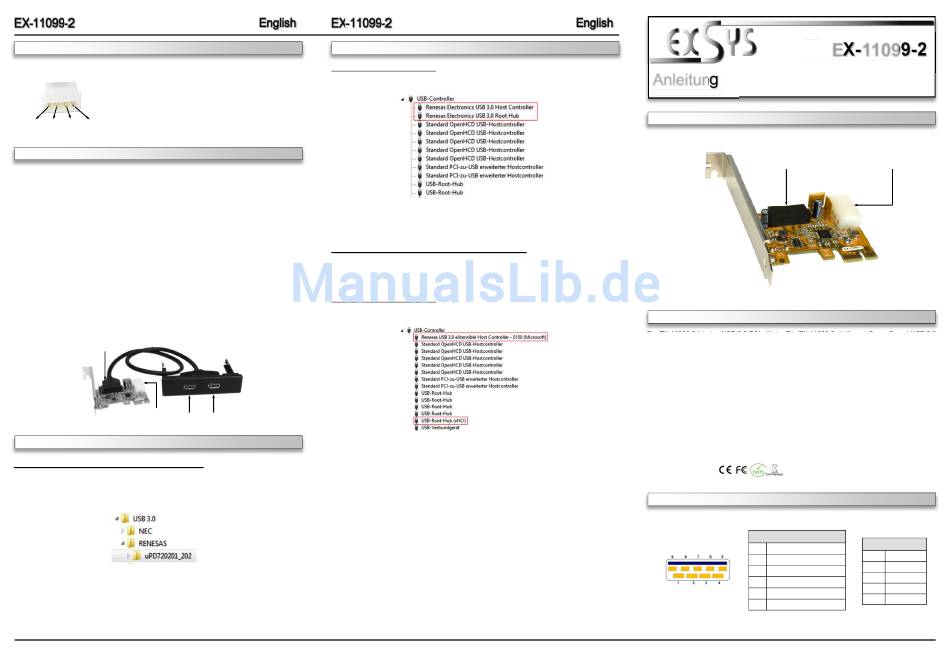

CONNECTORS
J5:
For support the 900mA at the USB ports, you need to connect J5
with the PC Power Supply.
Please make sure you connect the plug in the right direction!
Attention! Never connect or release the plug while the PC
1 2 3 4
power is on!
+12V GND GND +5V
HARDWARE INSTALLATION
Please note the following installation instructions. Because there are large differences between the
PC's, we can give you only a general installation instructions for the EX-11099-2. Please refer your
computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Computer and
gently slide the cover off.
3. Install now the external power supply to the card (see at Connectors at J5).
4. Locate an available PCI-Express expansion slot and remove its covers from the rear panel of
your computer.
5. Align the EX-11099-2 with the expansion slot, and then gently but firmly, insert the card. Make
sure the card is seated and oriented correctly.
6. Then attach the card with a screw to the rear panel of the computer.
7. Install the 3.5-inch Front-Bay cable adapter and connect its cable to J3 connector.
8. Gently replace your computer's cover and the mounting screws.
J3
J5
USB 3.0 Buchse 1 & 2
DRIVER INSTALLATION
Windows XP/ Vista/ 7/ Server 2003 & 2008R2
After starting Windows is recognizes a new "USB (Universal Serial Bus)-Controller". Start the
„SETUP" file which is in the "uPD720201_202" folder (see picture):
Follow the installation instructions and complete the installation.
Windows will now install automatically you right driver for your particular operating system. After
the installation the operating system detects the card and automatically install them.
5
DRIVER INSTALLATION
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „USB-Controller" the following new entry's:
If you see this or a similar information the device is installed correctly.
Windows 8.x/ 10/ Server 2012R2 / Server 2016
After the hardware installation, the operating system will recognize the device automatically and
install the drivers.
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „USB-Controller" the following new entry's:
If you see this or a similar information the device is installed correctly.
6
Anleitung
Vers. 1.1 / 16.11.17
AUFBAU
J3: 20-Pin Header Anschluss
für USB 3.0 Buchse 1 & 2
BESCHREIBUNG & TECHNISCHE DATEN

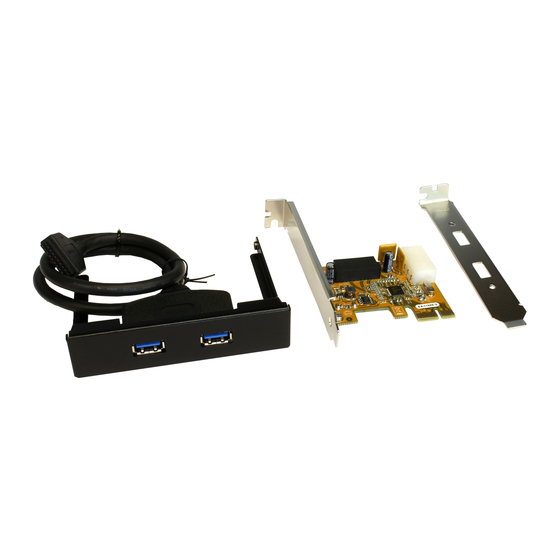

Die EX-11099-2 ist eine USB 3.0 PCIe Karte. Die EX-11099-2 stellt zwei Super-Speed USB 3.0
Ports in eine 3.5" Schacht (Fronteinbau) zur Verfügung. Die EX-11099-2 unterstützt die volle
Leistung von 900mA an beiden externen Ports, jedoch wird hierfür zusätzlicher Strom vom PC-
Netzteil benötigt. Die EX-11099-2 ist die perfekte Technologie für externe Speicher Gehäuse,
digitale Kameras, Webcam, Scanner und mehr. Sie unterstützt alle PCIe Slots von x1 bis x16.
Der PCI-Express Bus unterstützt optimal die Leistung des schnellen Renesas Chipsatz. Die EX-
11099-2 gewährleistet so eine sichere Datenübertragung und exzellente Performance von bis
zu 5Gbit pro Sekunde! Sie unterstützt alle USB Anschlüsse von 1.1 bis 3.1. Mit der EX-11099-2
wird ein Standard Bügel mitgeliefert für die zwei USB Ports.
Kompatibilität: PCI-Express x1 bis x16
Betriebssysteme: Windows XP/ Vista/ 7/ 8.x/ 10/ Server 20xx
Anschlüsse: 2x USB 3.0 A-Buchse extern, 1x 20-Pin Header, 1x 4-Pin Molex
Lieferumfang: EX-11099-2, 3.5" Fronteinbau HUB, Standard Bügel, Treiber CD,
Anleitung
Zertifikate:
ANSCHLÜSSE
USB 3.0 Buchse:
USB 3.0 Pin's
Pin Signal
5 SSTX+
6 SSTX-
7 GND
8 SSRX+
9 SSRX-
1
EX-11099-2
J5: 4-Pin Molex Power
Anschluss für PC-Netzteil
USB 2.0 Pin's
Pin Signal
1 VCC
2 DATA-
3 DATA+
4 GND
