Exsys EX-43073 Bedienungsanleitung

EX- EX EX - - 43073 43073 43073

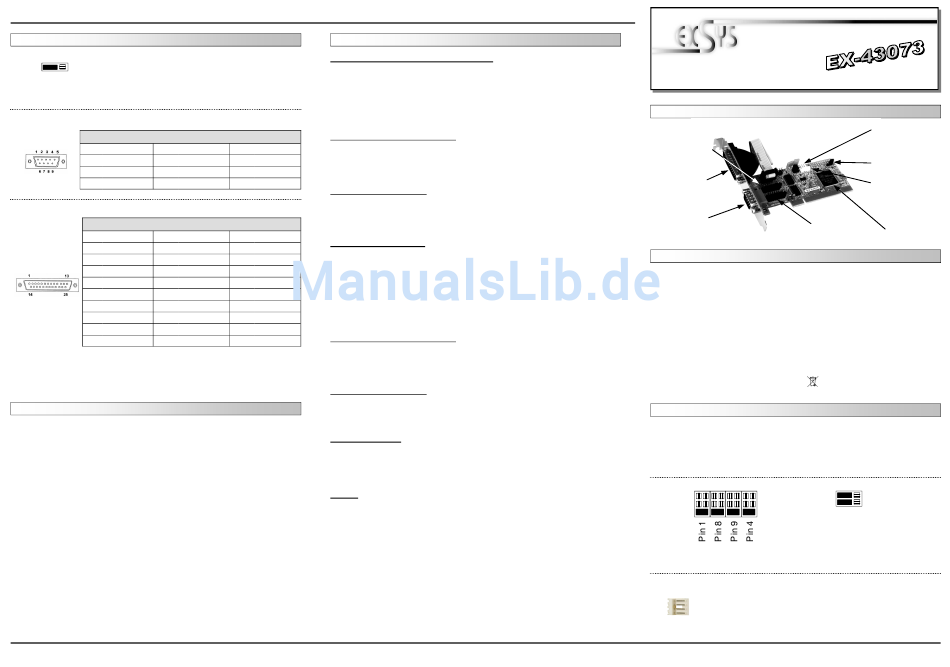

JUMPER SETTING & CONNECTORS
JP4:
JP4 to DIS = Parallel Port disable (Factory Setting)
JP4 to ENA = Parallel Port enable (No Function)
DIS/ENA
Attention! This jumper don't have function for the EX-43073.
DB9M:
Serial 9 Pin D-SUB male connector (S1)
Pin Signal Pin
1 DCD 4
2 RXD 5 GROUND
3 TXD 6
DB25M:
Serial 25 Pin D-SUB male connector (S2)
Pin Signal Pin
1 GROUND 10
2 TXD 11
3 RXD 12
4 RTS 13
5 CTS 14
6 DSR 15
7 GND 16
8 DCD 17
9 NC 18
NC = Not connect
HARDWARE INSTALLATION
If you are ready with the jumper settings, please proceed with the following installation
instructions. Because there are large differences between PC's, we can give you only a
general installation guide. Please refer to your computer's reference manual whenever
in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Com-
puter and gently slide the cover off.
3. Locate an available expansion slot and remove its covers from the rear panel of your
computer. Make sure it is the right expansion slot for the card (see card description)
4. Align the card with the expansion slot, and then gently but firmly, insert the card.
Make sure the card is seated and oriented correctly. Never insert the card by force!
5. Then connect the card with a screw to the rear panel of the computer case.
6. Gently replace your computer's cover and the mounting screws.
5
English English English EX EX EX- - - 43073 43073 43073
DRIVER INSTALLATION
Windows 9x/ ME/ 2000/ XP/ Vista/ 7/ 8
After starting Windows it recognizes a new "PCI Controller" and opens the hardware
assistant. Please choose manual installation and put the driver CD into your CD-ROM
drive. Now enter the Path "D:\IO\OXFORD\" and then the directory of your operating
system into the box for the Path/Source and click at >next/continue<. Now Windows
searches for the drivers in the specified directory. Follow the hardware assistant and
finish the installation. If Windows recognizes other new devices repeat the above de-
scribed steps. Attention! Restart Windows in any case after installing the drivers.
CHECK THE INSTALLED DRIVER
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows
Signal Pin Signal
that opens select >Device Manager<. Under „Ports (COM and LPT)" you should find
DTR 7 RTS
a new „PCI Port" as sample (Com3). If you see this or similar entries the card is in-
8 CTS
stalled correctly.
DSR 9 RI
CHANGE PORT NUMBER
If you like to change the port number for example COM3 to COM5, open the >Device
Manager< click at >COM3<, >Settings< and then >Advance<. There you can change
between COM3 to COM256.
Signal Pin Signal
Windows Server 200x
NC 19 NC
After starting Windows it recognizes a new "PCI Controller" and opens the hardware
NC 20 DTR
assistant. Please choose manual installation and put the driver CD into your CD-ROM
drive. Now enter the Path "D:\IO\OXFORD\" and then the directory of your operating
NC 21 NC
system for Server 2000 "2000", for Server 2003 "XP32" or "XP64", for Server 2008
NC 22 RI
„Vista32" or „Vista64" and for Server 2008 R2 „Win7_8_32bit" or „Win7_8_64bit" into
NC 23 NC
the box for the Path/Source and click at >next/continue<. Now Windows searches for
the drivers in the specified directory. Follow the hardware assistant and finish the instal-
NC 24 NC
lation. If Windows recognizes other new devices repeat the above described steps.
NC 25 NC
Attention! Restart Windows in any case after installing the drivers.
NC
CHECK THE INSTALLED DRIVER
NC
Click at Start<>Run< then enter "compmgmt.msc" and click at >OK<. In the windows
that opens select >Device Manager<. Under „Ports (COM and LPT)" you should find
a new „PCI Port" as sample (Com3). If you see this or similar entries the card is in-
stalled correctly.
CHANGE PORT NUMBER
If you like to change the port number for example COM3 to COM5, open the >Device
Manager< click at >COM3<, >Settings< and then >Advance<. There you can change
between COM3 to COM256.
Windows NT 4.0
Start Windows NT and insert the driver CD into your CD-ROM drive (for example D:).
Click at >Start< >Run< and enter „D:\IO\OXFORD\NT4\Install_Serial.exe" then click
>OK<. Windows NT will now start the setup program and install the driver. Please
Restart Windows NT after installing the drivers.
LINUX
There are no drivers available for Linux, but the card is supported by the most versions
of Linux. Because each individual distribution and kernel version of Linux is different,
sadly we cant provide a installation instruction. Please refer to the installation manual
for standard I/O ports from your Linux version! In some newer versions the card will
even be installed automatically after starting Linux.
English English English
JP2: +5V oder +12V
S2:
S1:

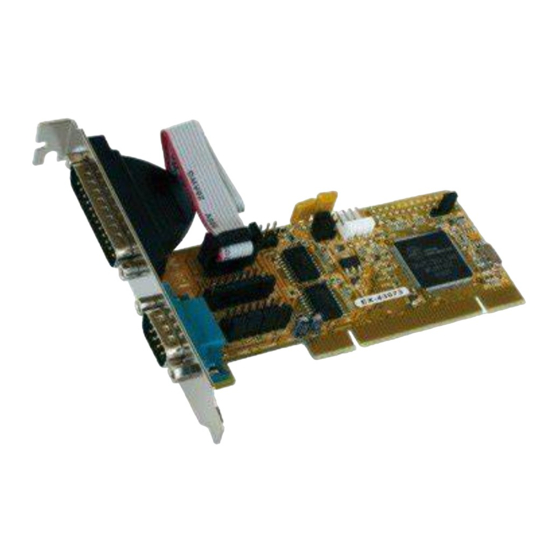

Die EX-43073 ist eine PCI serielle RS-232 Karte mit zwei seriellen FIFO 16C95x Ports,
für den Anschluss von High-Speed seriellen RS-232 Peripherie Geräten (z.B. Terminal,
Modem, Plotter usw.). Sie unterstützt den 32 und 64-Bit PCI bzw. PCI-X Bus mit 5 Volt
und 3,3 Volt. Es ist nicht möglich die I/O Adressen und Interrupts manuell einzustellen,
da die Einstellungen der Karte vom System (BIOS) und beim Installieren des Betriebs-
systems automatisch vorgenommen werden. Es besteht bei Bedarf die Möglichkeit, +5V
- oder +12V auf einen von vier Pins der Stecker zu legen (POS System).
Kompatibilität:
Betriebssysteme:
Anschlüsse:
Lieferumfang:
Zertifikate:
Mit der EX-43073 haben Sie die Möglichkeit +5V- oder +12V auf einen der folgenden
vier Pins, des 9 Pin Steckers S1 und S2 zu konfigurieren :
Achtung!! Nur konfigurieren wenn für das Peripheriegerät auch +5Volt oder +12Volt
gebraucht wird. Für normale Anwendungen, Jumper nicht verändern.
JP1 & JP2:
(S1 + S2)
J4:
6
Bedienungsanleitung
Bedienungsanleitung
Vers. 1.2 / 27.06.13
AUFBAU
einstellbar auf
den 9 Pin von S2
25 Pin Stecker
Seriell Anschluss
9 Pin Stecker
Seriell Anschluss
JP1: +5V oder +12Veinstellbar auf
den 9 Pin von S1
BESCHREIBUNG & TECHNISCHE DATEN
PCI & PCI-X 3,3Volt & 5Volt bei 33Mhz
WIN 9x/ ME/ NT4.0/ 2000/ XP/ Vista/ 7/ 8/ Server 200x/ Linux
1x 9 Pin Seriell D-SUB Stecker, 1x 25 Pin Seriell D-SUB Stecker
EX-43073, Treiber CD, Anleitung
CE CE CE / FCC / RoHS / WEEE CE DE97424562 / WHQL
JUMPER EINSTELLUNG & ANSCHLÜSSE
+5V JP3:
+12V
Dis
JP3 auf PCI
JP3 auf AUX = 5 oder +12V
Wenn JP3 auf AUX gestellt ist muss J4 mit dem Stromanschluss vom
1 +5V
2 GND
PC Netzteil verbunden werden! Bitte auf die richtige Polarität achten!
3 GND
Achtung! Stecker nie bei eingeschaltetem PC ein oder ausstecken!
4 +12V
1
JP3: Umschaltung der
Spannung von
PCI-BUS auf
PC-Netzteil
JP4: Ein/Ausschaltung
Parallel-Port
J4: Anschluss vom
PC Netzteil für
+5V oder +12V
Spannung
Oxford OXuPCI952
+5V
+12V
PCI AUX
= +5 or +12V
kommt vom PCI BUS
kommt vom PC Netzteil
