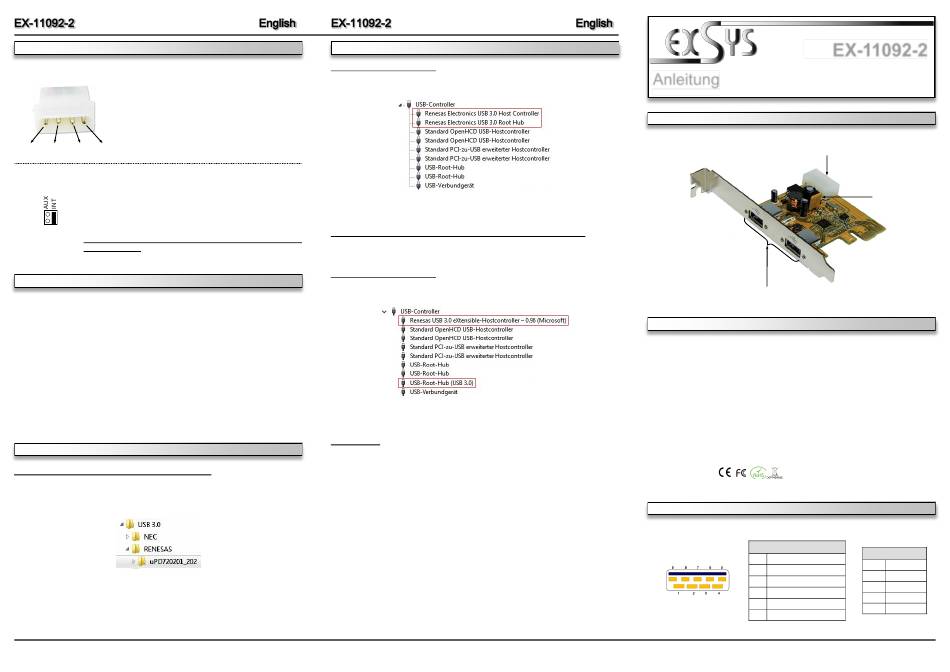

Exsys EX-11092-2 Anleitung

CONNECTORS
4-Pin Molex Power Connector :
If JP1 is set to AUX, the connector must be connected to
the power connector from the PC power supply.
Please make sure you connect the plug in the right
direction!
Attention! Never connect or release the plug while the
PC power is on!
1 +12V 2 GND 3 GND 4 +5V
JP1:
INT = Power 900mA from PCI-Express BUS (Factory Setting)
AUX = Power 900mA from PC power supply
(For safe direct power from PC power supply to provide sufficient power
for devices with high power consumption)
The 4-Pin Molex Power Connector must then be connected to the
PC power supply!
HARDWARE INSTALLATION
Please note the following installation instructions. Because there are large differences between the
PC's, we can give you only a general installation instructions for the EX-11092-2. Please refer your
computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Computer and
gently slide the cover off.
3. Locate an available PCI-Express expansion slot and insert the card. Make sure that the card
is plugged in correctly.
4. If necessary please install now the external power supply to the card.
5. Then attach the card with a screw to the rear panel of the computer.
6. Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION
Windows XP / Vista / 7 / Server 2003 & 2008R2
After starting Windows is recognizes a new "USB (Universal Serial Bus)-Controller". Now
insert the Driver CD into your CD-ROM drive (e.g. drive D:) and start the „setup" which is
located in the folder „USB 3.0/RENESAS/uDP720201_202" (see picture):
Follow the installation instructions and complete the installation.
Windows will now install automatically you right driver for your particular operating system. After
the installation the operating system detects the card and automatically install them.
5
DRIVER INSTALLATION
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „USB-Controller" the following new entry's:
If you see this or a similar information the device is installed correctly.
Windows 8.x / 10 / 11 / Server 2012R2 & 2016 & 2019 & 2022
After the hardware installation, the operating system will recognize the device automatically and
install the drivers.
CHECK INSTALLED DRIVER
Open the >Device manager<. Now you should see at „USB-Controller" the following new entry's:
If you see this or a similar information the device is installed correctly.
Linux / Mac
After the hardware installation, the operating system will recognize the device automatically and
install the drivers.
6
Anleitung
Vers. 1.5 / 26.02.24
AUFBAU
4-Pin Molex Power Anschluss für PC-Netzteil
2x USB 3.2 Gen 1 A-Buchse (verschraubbar)
BESCHREIBUNG & TECHNISCHE DATEN
Die EX-11092-2 ist eine USB 3.2 Gen 1 PCIe Karte. Sie ist mit zwei externen Buchsen ausge-
stattet, die jeweils 900mA Strom zu Verfügung stellen. Die EX-11092-2 unterstützt die volle
Leistung von 900mA an beiden externen Buchsen ohne das Sie zusätzlichen Strom vom PC-
Netzteil benötigen. Sie unterstützt alle PCIe Slots von x1 bis x16. Der PCI-Express Bus unter-
stützt optimal die Leistung des schnellen Renesas Chipsatz. Die EX-11092-2 gewährleistet so
eine sichere Datenübertragung und exzellente Performance von bis zu 5Gbit pro Sekunde! Sie
unterstützt alle USB Anschlüsse von 1.1 bis 3.2. Zusätzlich bietet die EX-11092-2 Ihnen die
Möglichkeit das USB Kabel an die UBS Buchsen der Karte zu verschrauben.
Kompatibilität: PCI-Express x1 bis x16
Betriebssysteme: Windows XP / Vista / 7 / 8.x / 10 / 11 / Server 20xx / Linux / Mac
Anschlüsse: 2x USB 3.2 Gen 1 A-Buchse (verschraubbar), 1x 4-Pin Molex Power
Anschluss
Lieferumfang: EX-11092-2, Low Profile Bügel, Treiber CD, Anleitung
Zertifikate:
ANSCHLÜSSE & JUMPER EINSTELLUNG
USB 3.2 Gen 1 Buchse:
USB 3.2 Pin's
Pin Signal
5 SSTX+
6 SSTX-
7 GND
8 SSRX+
9 SSRX-
1
EX-11092-2
JP1:
Jumper zur Auswahl
der Stromquelle
(Netzteil oder
PCI-Express Bus)
USB 2.0 Pin's
Pin Signal
1 VCC
2 DATA-
3 DATA+
4 GND
