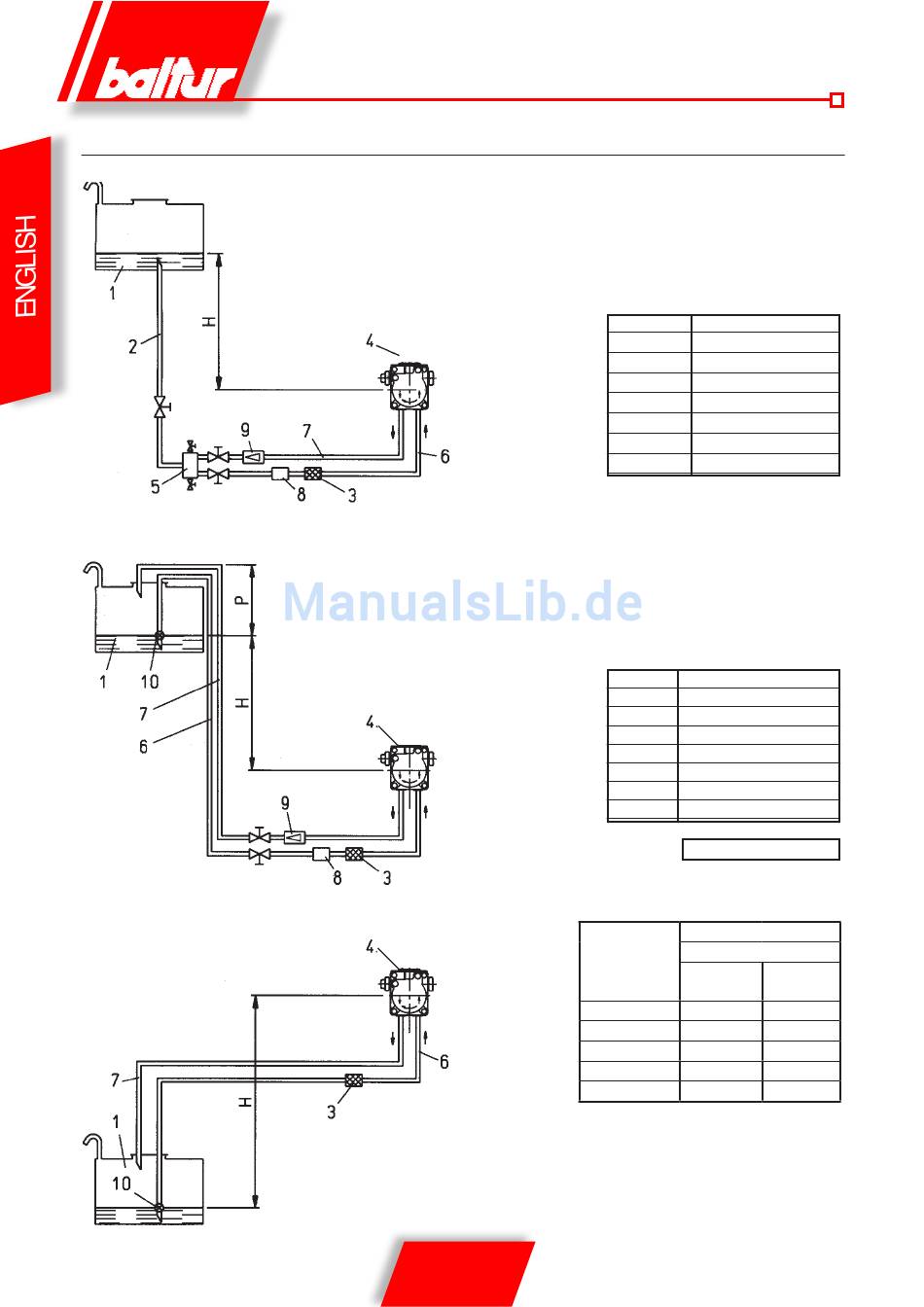

PIPE SIZING DIAGRAMS TBML 80 MC
1 Tank
3 Wire-net filter
4 Pump
6 Suction pipe
7 Return pipe
10 Foot valve
GRAVITY SUPPLY SYSTEM
1 Tank
2 Feeding pipe
3 Wire-net filter
4 Pump
5 Degasifier
PUMP AXIS
DROP-TYPE SYSTEM WITH SUPPLY FROM THE TANK TOP
1 Tank
3 Wire-net filter
4 Pump
6 Intake pipe
7 Return pipe
PUMP AXIS
INTAKE SUPPLY SYSTEM
PUMP AXIS
NOTE:
H = Difference in level between level in the tank and the pump axis.
L = Maximum length of suction pipe including the vertical lift.
Deduct 0.25 m for each elbow or gate.
0006160035_201408
6 Suction pipe
7 Burner return pipe
8 Automatic fuel interception
with the burner off
9 Non-return valve
8 Automatic fuel interception device at
burner shut off
9 Non-return valve
10 Foot valve
H
Meter
meters
For any components missing in the pipes, comply with current
regulations.
12 / 36
H
Gesamte L.
Meter Meter
Ø i. 14 mm.
1 30
1.5 35
2 35
2.5 40
3 40
Gesamte L.
Meter
Ø i. 14 mm.
1 30
1.5 35
2 35
2.5 40
3 40
Maßzahl T = 3.5 m. (Max.)
Total meters
H
meters
Ø i. 14 Ø i. 16
mm. mm.
0.5 26
1 22
1.5 19
2 14
2.5
11
