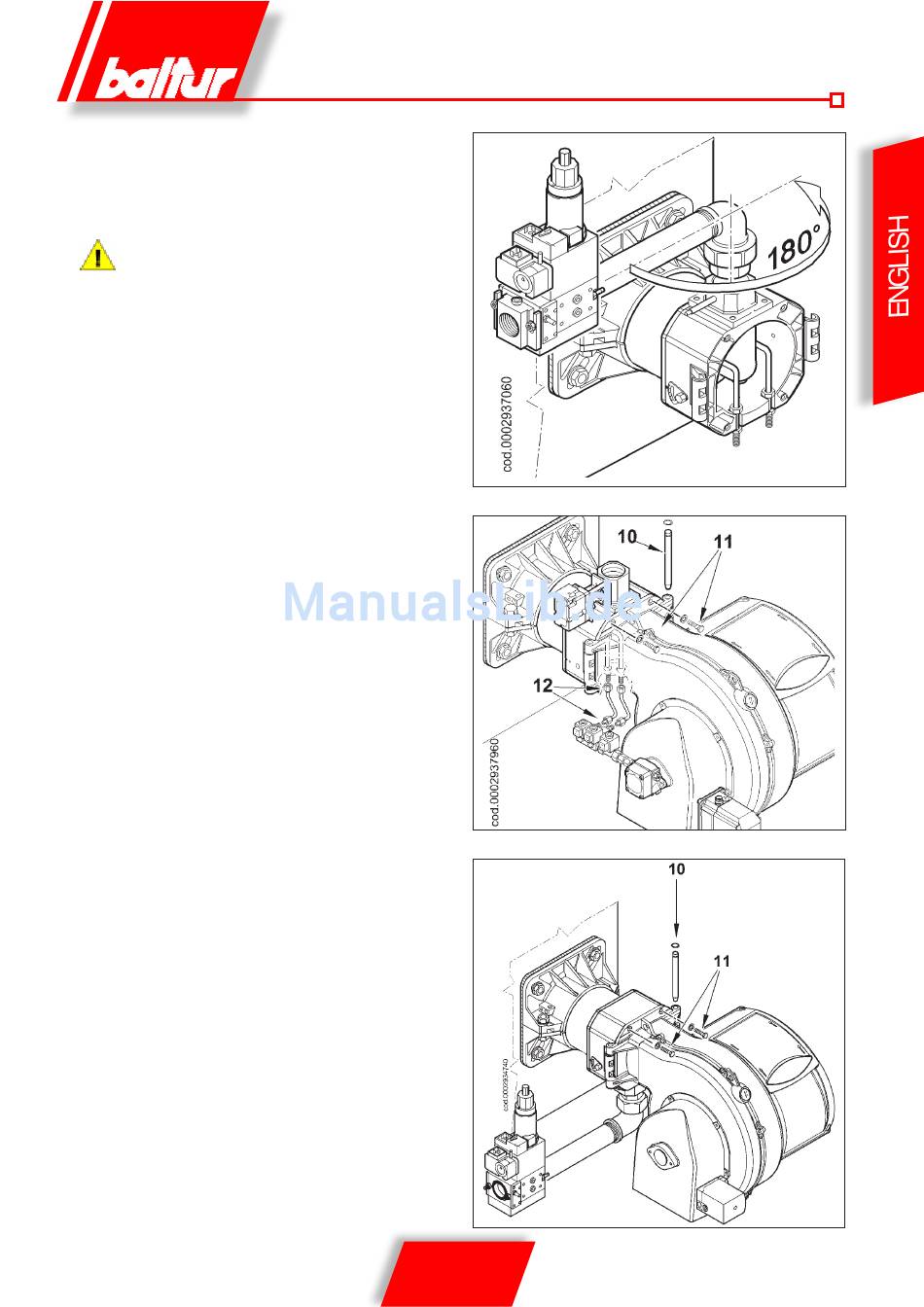

ASSEMBLING THE GAS TRAIN
T h e r e a r e d i f f e r e n t w a y s o f a s s e m b l i n g t h e
v a l v e t r a i n , a s s h o w n i n d r a w i n g 0 0 0 2 9 3 7 0 6 0
Choose the most rational position for the set-up of the boil-
er room and the position in which the gas pipeline arrives.
In case of very large valves, e.g. DN65 or DN80, make sure
there is a suitable support to prevent excessive stress on
the gas train fitting.
ASSEMBLING VENTILATING UNIT
• Position the half-hinge on the burner scroll in line with those on
the combustion head assembly.
• Put the hinge pin 10 in the position considered most suitable.
• Connect the cable switch on to the corresponding electrodes,
close the hinge, locking the burner by means of screws 11.
COMPLETING BURNER SETUP
• Remove the protective (yellow) caps from the couplings placed
beneath the head unit and near the electrovalves.
• Connect the 12 light oil pipes provided with the burner to their
corresponding connectors, making sure they are properly sealed.
.
