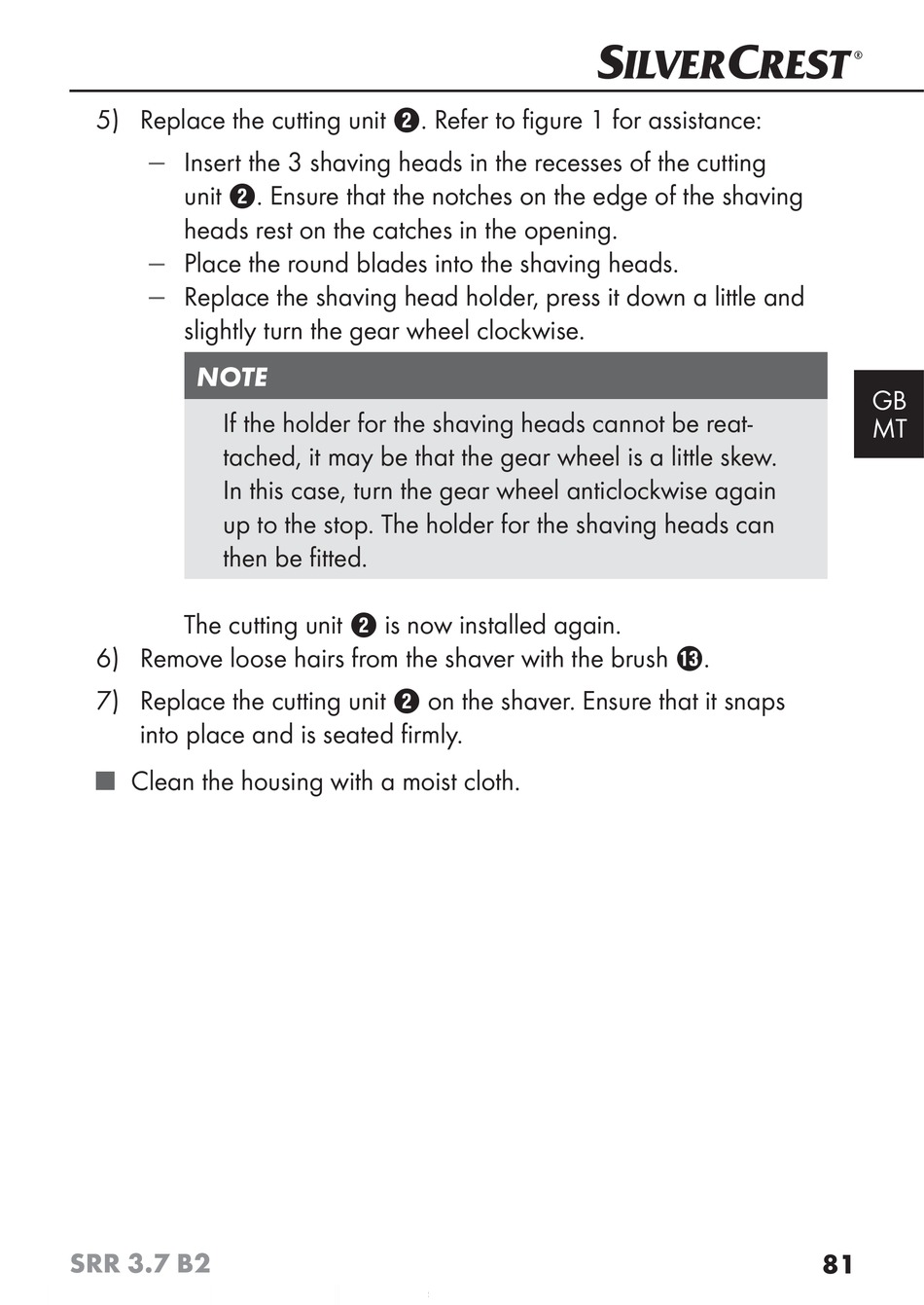

Silvercrest SRR 3.7 B2 Bedienungsanleitung Seite 85

5) Replace the cutting unit 2. Refer to fi gure 1 for assistance:
Insert the 3 shaving heads in the recesses of the cutting
–
unit 2. Ensure that the notches on the edge of the shaving
heads rest on the catches in the opening.
Place the round blades into the shaving heads.
–
Replace the shaving head holder, press it down a little and
–
slightly turn the gear wheel clockwise.
NOTE
If the holder for the shaving heads cannot be reat-
tached, it may be that the gear wheel is a little skew.
In this case, turn the gear wheel anticlockwise again
up to the stop. The holder for the shaving heads can
then be fi tted.
The cutting unit 2 is now installed again.
6) Remove loose hairs from the shaver with the brush e.
7) Replace the cutting unit 2 on the shaver. Ensure that it snaps
into place and is seated fi rmly.
■ Clean the housing with a moist cloth.
SRR 3.7 B2
GB
MT
81
