4. OPERATING INSTRUCTIONS

4.1. INSTRUMENT DESCRIPTION

4.1.1. Front panel

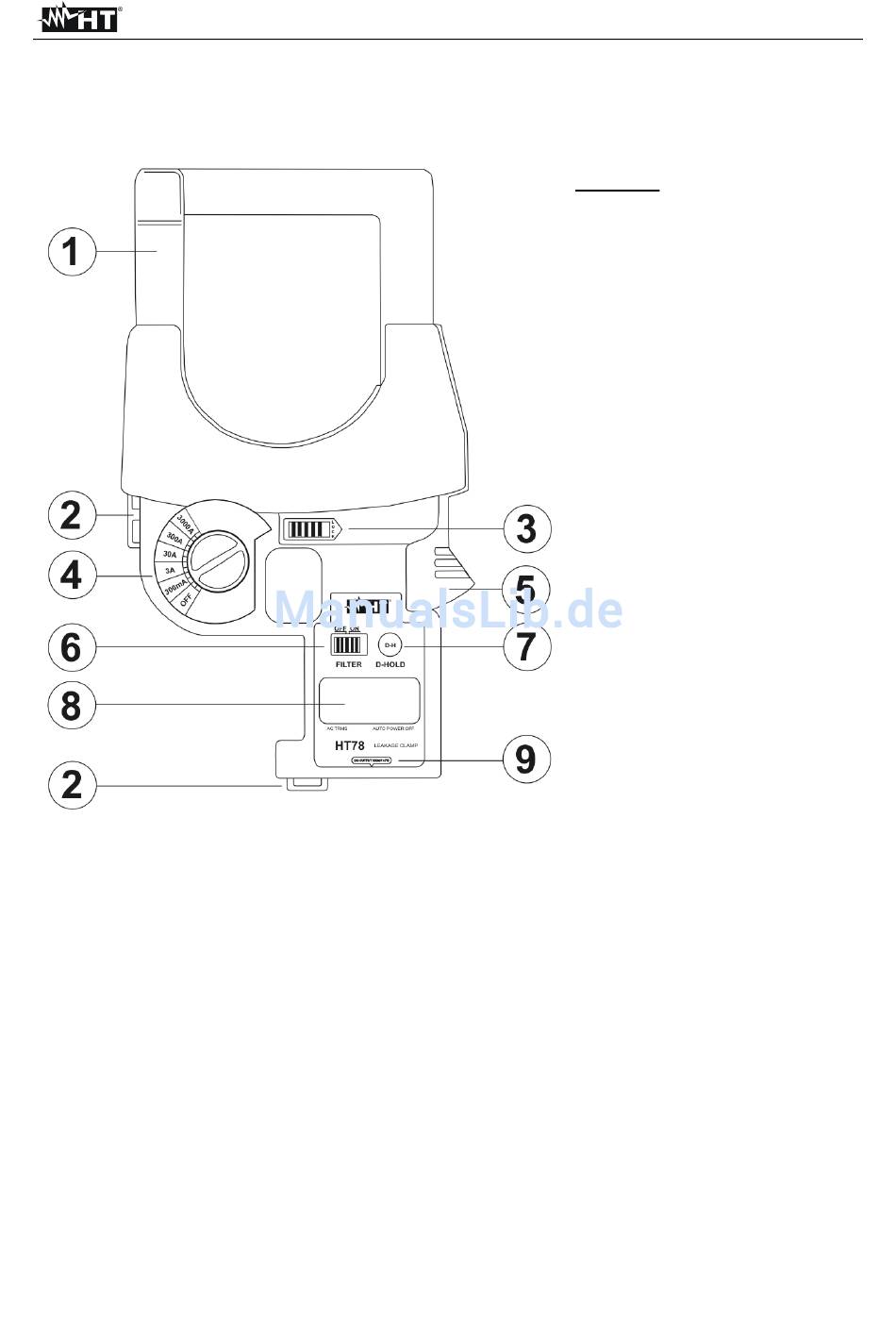

Fig. 1: Instrument description
EN - 6
LEGEND:
1. Inductive clamp jaw
2. Holes for carrying straps
3. LOCK selector
4. Selector with
measurement ranges and
ON/OFF feature
5. Jaw trigger
6. FILTER selector
7. D-HOLD key
8. LCD display
9. DCV analogical output
terminal
HT78
