3.2.4

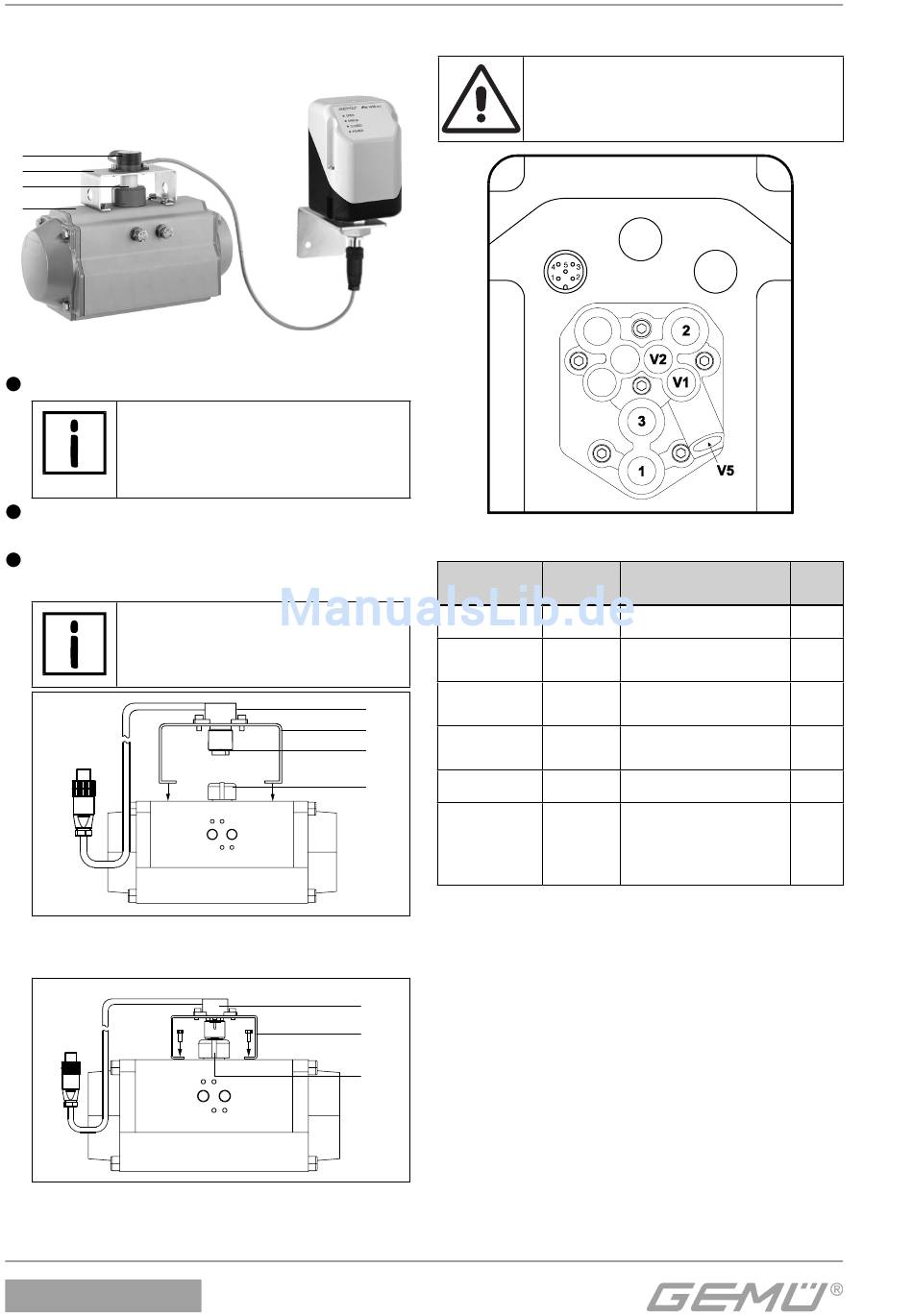

Mounting the external travel

sensor (only for version with

remote mounting)

4
6
9
3
Valve with external travel sensor
Fix the positioner 1 at a suitable location.
The mounting bracket GEMÜ
1446 00 ZMP can be used
for this purpose (it must be
ordered separately).
Assemble the travel sensor (see chapter
3.2.2 "Assembling the travel sensor").
Place the travel sensor 4 with the adapter 9
and mounting bracket 6 onto the actuator 3.
The adapter lug 9 must
engage in the actuator shaft
groove.
Attach the mounting bracket 6 to the
G
actuator 3 with the enclosed screws.
1436 cPos eco
4

Pneumatic connections

Attention:Observe maximum
actuator control pressure!
Connection
P
R
V1
4
6
V2
9
V5
3
A1
4
6
3
36 / 56
Pneumatic connections
DIN ISO
Designation
1219-1
1 Air supply connection
Venting connection
3
with silencer
Additional air throttle
V1
for A1 (connector 2)
Exhaust air throttle for
V2
A1 (connector 2)
V5 Check valve
Working connection
for process valve
2
(control function 1
and 2)
Size
G 1/8
G 1/8
-
-
-
G 1/8
