Screw the positioner 1 or the travel
sensor 4 onto the mounting bracket 6.
OPEN
ERROR
CLOSED
POWER
View X
eco
1
9
6
4
9
6
35 / 56
3.2.3

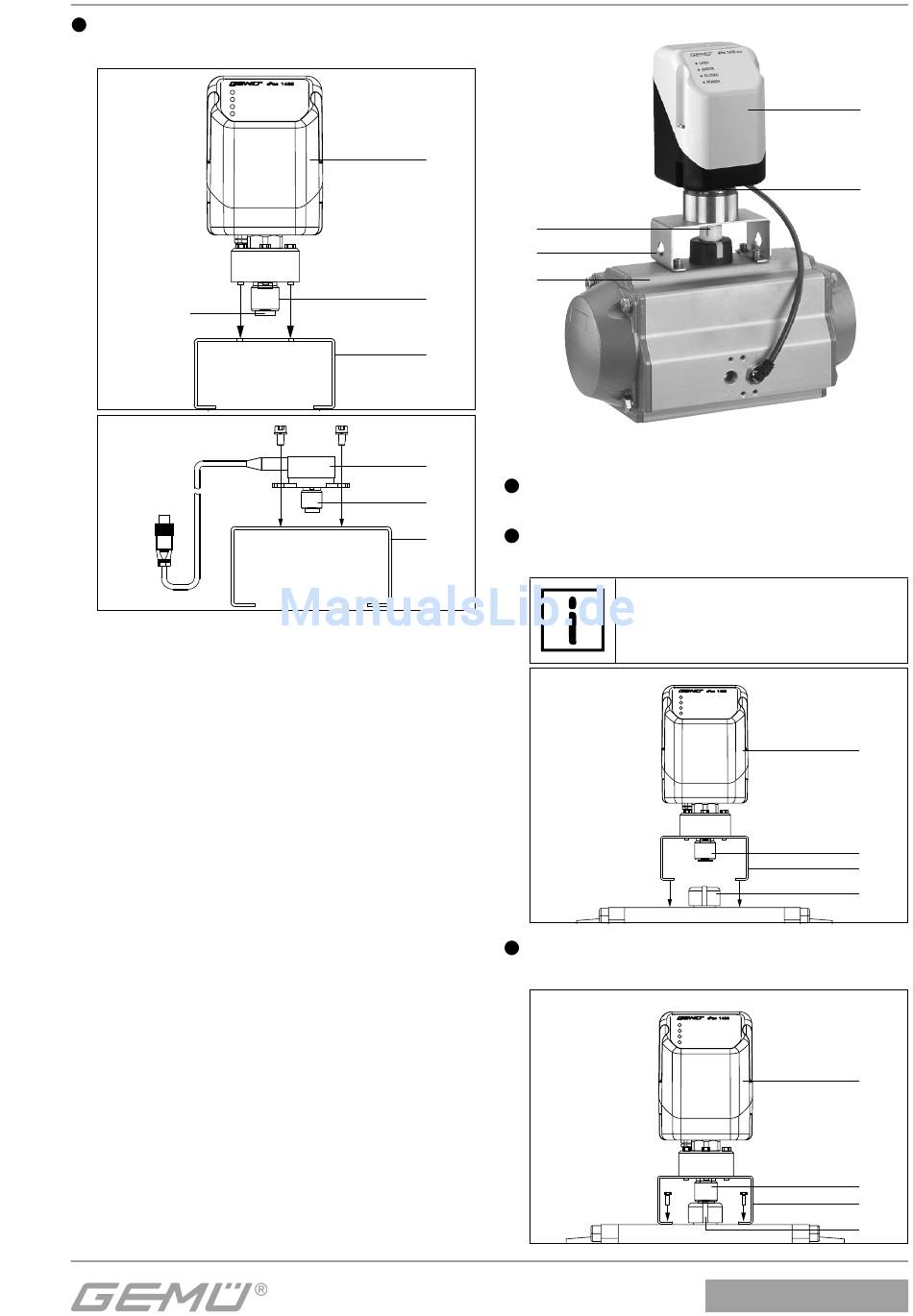

Mounting the positioner

9
6
3
Valve with positioner
Assemble the travel sensor (see chapter
3.2.2 "Assembling the travel sensor").
Place the positioner 1 with the adapter 9
and mounting bracket 6 onto the actuator 3.
The adapter lug 9 must
engage in the actuator shaft
groove.
Attach the mounting bracket 6 to the
actuator 3 with the enclosed screws.
eco
OPEN
ERROR
CLOSED
POWER
eco
OPEN
ERROR
CLOSED
POWER
1436 cPos eco
1
2
1
9
6
3
1
9
6
3
