b) Setting of tooth backlash
Control the tooth backlash at regular intervals. The tooth backlash has to be adjusted at the latest when the electric
motor, the motor pinion or the main pinion is exchanged.

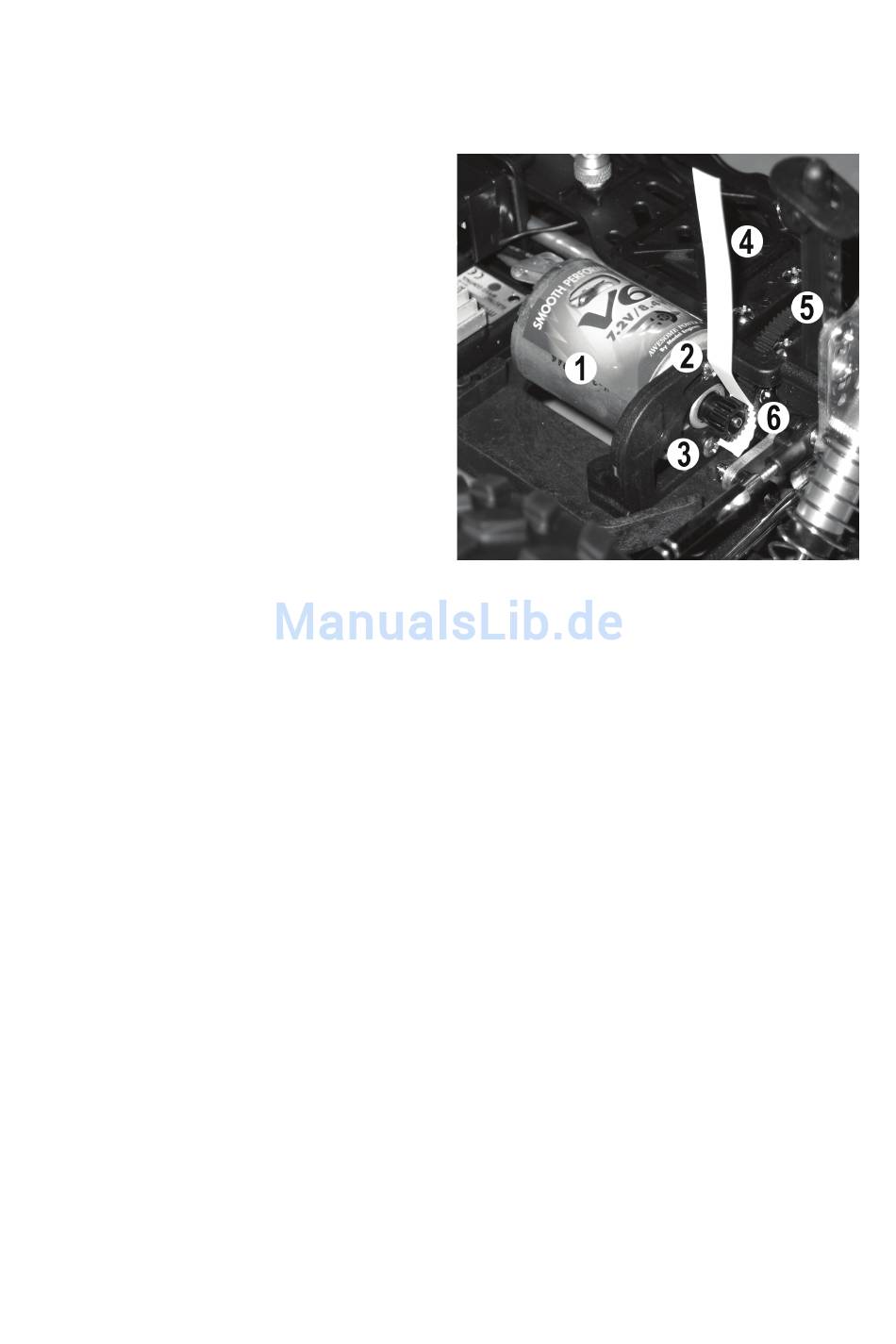

To do this loosen the two fastening screws (2 and 3) of the
electric motor (1) so that you can move the motor with slight
pressure in the direction of the main pinion (5).
Motor pinion (6) and the main pinion (5) now engage into
each other without tolerance.
Now take a narrow paper strip (4) and place it on the top
between the toothed wheels.
Now move the main pinion by hand so that the paper strip
between the two toothed wheels is pulled in.
The pressure of the paper pushes back the electric motor
by the degree necessary. Now fasten the fastening screws
of the motor again in this position.
When you turn back the main pinion afterwards so that the
paper strip can be taken out again, both toothed wheels will
Figure 11
have the necessary distance to each other.
c) Changing the crystal
There may be no other transmitter/models with the same frequency in the range of the transmitter, as these transmitters
interfere with each other. As a result, the models no longer respond correctly to the transmitter commands. If there are
other model vehicles in your range, talk to the other operators about the frequencies they use.
Only use suitable accessory crystals for the transmitter and the receiver.
Prior to a quartz change, first turn off the vehicle and then the transmitter.
