b) Setting the Swash Plate Control

The swash plate (1) is controlled via two micro servos. The
right servo (2) (seen in flight direction) controls the nod func-
tion and the left servo (3) controls the roll function.
When the control lever and the trim control for the roll and
nod functions are in their centre positions, the two servo
levers (4) must be aligned horizontally and must not be tilted.
If the servo lever is badly misadjusted, the holding screw
can be loosened and the lever can be reattached adjusted
by one "tooth".
The two control rods (5) must be set so that the model shows
no tendency to drift always into the same direction when
the trim sliders for nodding and rolling are at their centre
positions. In this case, the swash plate must be aligned hori-
zontally.
After disconnecting the ball joint sockets (6) at the swash
plate, you can adjust the rod length by twisting the joint sock-
ets.

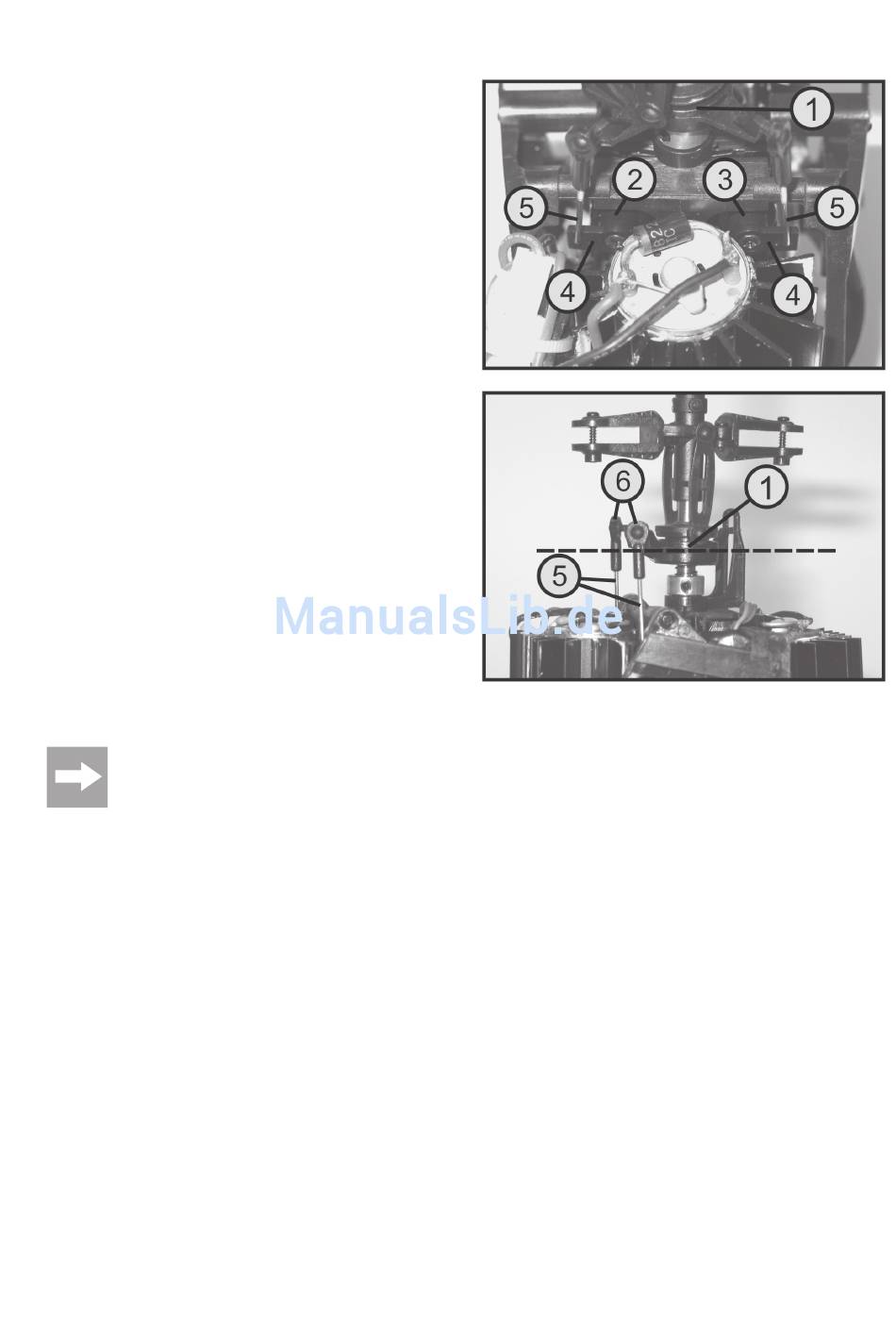

For better illustration, the mechanics were removed from the fuselage for the photographs in figures 22
and 23. Generally, it is easily possible to set the gyro sensitivity and linkage rods for the swash plate with
the mechanics installed as well.
58
Figure 23
