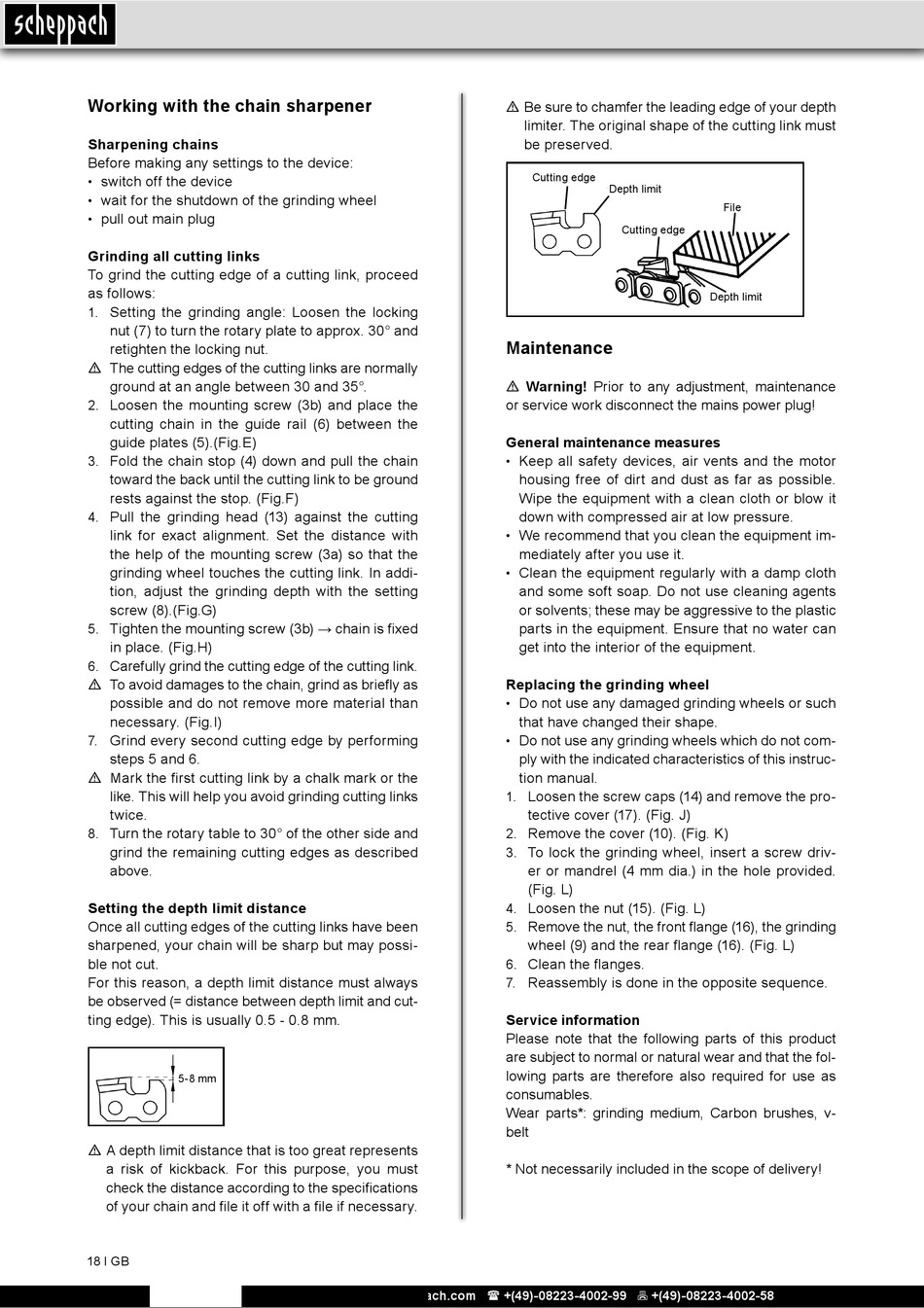

Working with the chain sharpener

Sharpening chains
Before making any settings to the device:
• switch off the device
wait for the shutdown of the grinding wheel
•
pull out main plug
•
Grinding all cutting links
To grind the cutting edge of a cutting link, proceed
as follows:
1. Setting the grinding angle: Loosen the locking
nut (7) to turn the rotary plate to approx. 30° and
retighten the locking nut.
m The cutting edges of the cutting links are normally
ground at an angle between 30 and 35°.
Loosen the mounting screw (3b) and place the
2.
cutting chain in the guide rail (6) between the
guide plates (5).(Fig.E)
Fold the chain stop (4) down and pull the chain
3.
toward the back until the cutting link to be ground
rests against the stop. (Fig.F)
Pull the grinding head (13) against the cutting
4.
link for exact alignment. Set the distance with
the help of the mounting screw (3a) so that the
grinding wheel touches the cutting link. In addi-
tion, adjust the grinding depth with the setting
screw (8).(Fig.G)
Tighten the mounting screw (3b) → chain is fixed
5.
in place. (Fig.H)
Carefully grind the cutting edge of the cutting link.
6.
m To avoid damages to the chain, grind as briefly as
possible and do not remove more material than
necessary. (Fig.I)
Grind every second cutting edge by performing
7.
steps 5 and 6.
m Mark the first cutting link by a chalk mark or the
like. This will help you avoid grinding cutting links
twice.
Turn the rotary table to 30° of the other side and
8.
grind the remaining cutting edges as described
above.
Setting the depth limit distance
Once all cutting edges of the cutting links have been
sharpened, your chain will be sharp but may possi-
ble not cut.
For this reason, a depth limit distance must always
be observed (= distance between depth limit and cut-
ting edge). This is usually 0.5 - 0.8 mm.
5-8 mm
m A depth limit distance that is too great represents
a risk of kickback. For this purpose, you must
check the distance according to the specifications
of your chain and file it off with a file if necessary.
18 І GB
 www.scheppach.com  service@scheppach.com  +(49)-08223-4002-99  +(49)-08223-4002-58
m Be sure to chamfer the leading edge of your depth
limiter. The original shape of the cutting link must
be preserved.
Cutting edge
Depth limit
Cutting edge

Maintenance

m Warning! Prior to any adjustment, maintenance
or service work disconnect the mains power plug!
General maintenance measures
Keep all safety devices, air vents and the motor
•
housing free of dirt and dust as far as possible.
Wipe the equipment with a clean cloth or blow it
down with compressed air at low pressure.
We recommend that you clean the equipment im-
•
mediately after you use it.
Clean the equipment regularly with a damp cloth
•
and some soft soap. Do not use cleaning agents
or solvents; these may be aggressive to the plastic
parts in the equipment. Ensure that no water can
get into the interior of the equipment.
Replacing the grinding wheel
Do not use any damaged grinding wheels or such
•
that have changed their shape.
Do not use any grinding wheels which do not com-
•
ply with the indicated characteristics of this instruc-
tion manual.
1. Loosen the screw caps (14) and remove the pro-
tective cover (17). (Fig. J)
Remove the cover (10). (Fig. K)
2.
To lock the grinding wheel, insert a screw driv-
3.
er or mandrel (4 mm dia.) in the hole provided.
(Fig. L)
Loosen the nut (15). (Fig. L)
4.
5. Remove the nut, the front flange (16), the grinding
wheel (9) and the rear flange (16). (Fig. L)
Clean the flanges.
6.
Reassembly is done in the opposite sequence.
7.
Service information
Please note that the following parts of this product
are subject to normal or natural wear and that the fol-
lowing parts are therefore also required for use as
consumables.
Wear parts*: grinding medium, Carbon brushes, v-
belt
* Not necessarily included in the scope of delivery!
File
Depth limit
