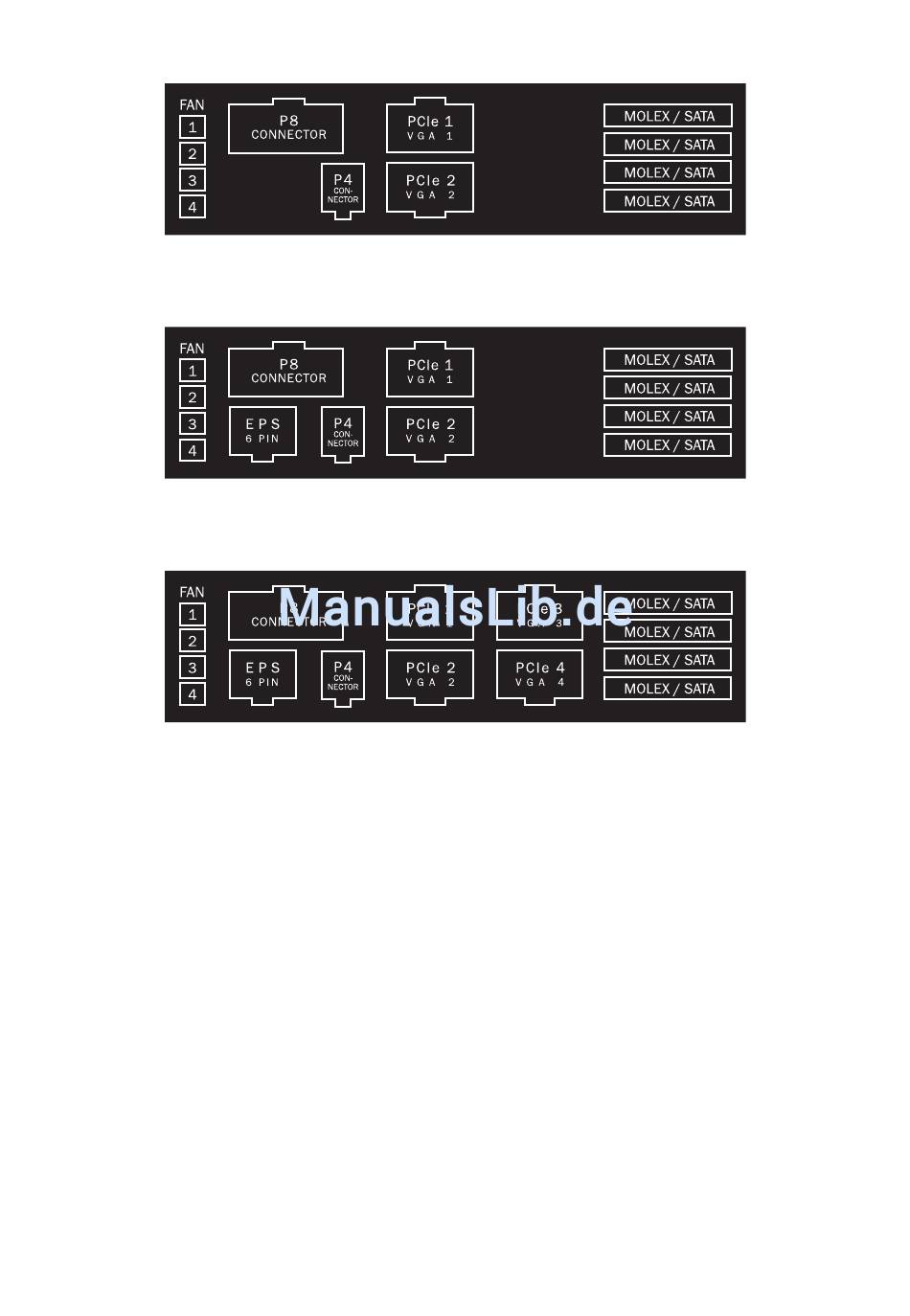

The allocation of the sockets on the power supply is as follows:
450W & 550W MODELS
650W MODEL
750W, 850W, 1000W & 1200W MODEL
FAN
The four fan connections are indicated with FAN. The fan connections are to be attached at these junctions. The
attached fans are later controlled by the internal automatic controls.
Attention: only one fan per connection cable!
Maximum load for all connections in sum 1.2A/14.4W!
P8 CONNECTOR
The P8 connector is required for mainboards with several processors. These provide the processors with an extra
12V circuit that is required for a stable operation.
EPS ( AS OF 650W )
The additional 6 Pin EPS connector is, for special mainboards, required in the server and workstation area. This
connector is available to you as of the 650W model
MB
The connector with the MB indicator helps the additional supply of a 12V and 5V circuit for a more stable system.
PCIE1 AND PCIE2
The first two graphic card connectors are indicated in red. These serve to supply the high performance graphic cards
with electricity. There is, in each case, a 6 pin connector on each end of the cable. These can then convert into 8 pin
connectors by applying the pluggable pins.
