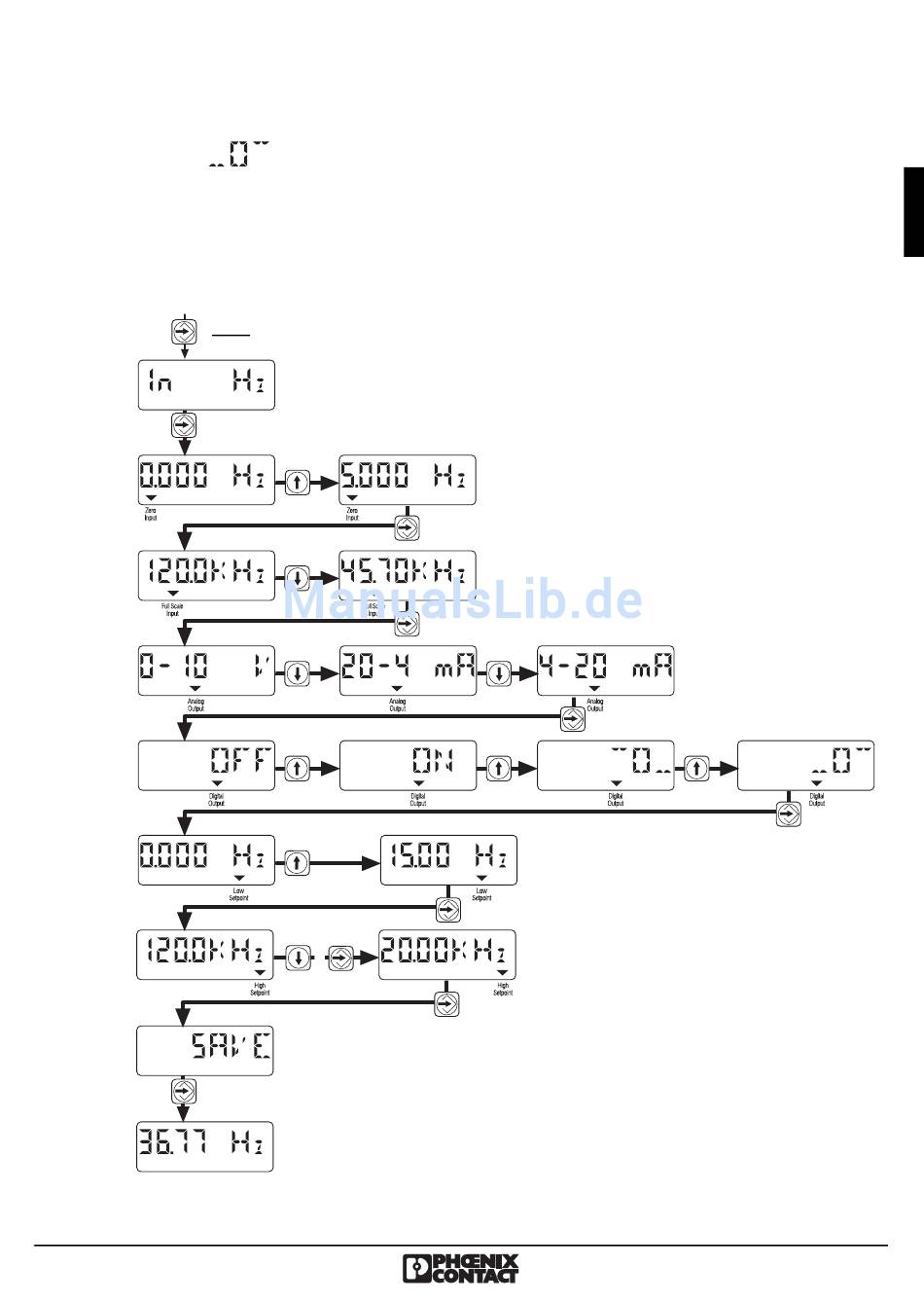

7.4. Example: Configuration based on a frequency input signal

The module MCR-f-UI-DC has the following functions:
Frequency range:
Output signal:
Switching behavior:
ON delay:
OFF delay:
Wire-break detection time:
Operating mode
f-input
measuring
range
start
measuring
range
end
analog
output
switching
output
bottom
switching
point
top
switching
point
example:
5...45700 Hz, 3-wire NPN sensor
4...20 mA
bottom switching point ("High" to "Low") at 15 Hz
top switching point ("Low" to "High") at 20 kHz
10 s
5 s
1 s
press briefly
3-wire NPN
+
operating mode
25
