7. Menu flowcharts

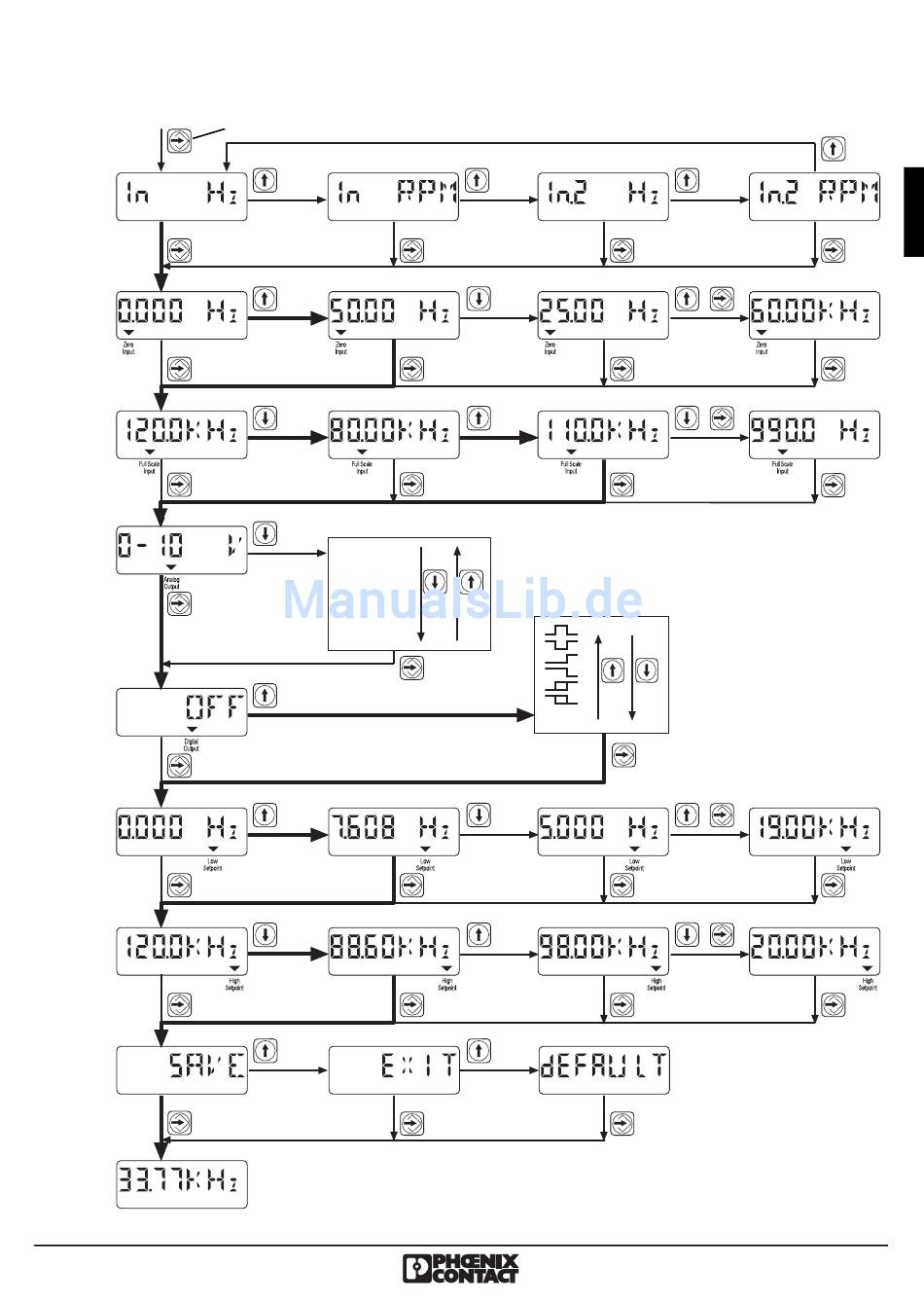

7.1. Configuration of the frequency input – Sequence of menu
operating mode
f-input
measuring
range
start
measuring
range
end
analog
output
switching
output
bottom
switching
point
top
switching
point
saving
values
operating
mode
press briefly
example
example
all options
20 - 4 mA
4 - 20 mA
20 - 0 mA
0 - 20 mA
5 - 0 V
0 - 5 V
10 - 0 V
example
example
example
+
example
+
all options
ON
example
+
example
+
example
example
example
example
