10. Transporting, storing the device

WARNING
Danger of fire caused by hot parts of the equipment. Allow the device to cool
down completely.
• Switch off the device (See „Switching the device on, off)
• Allow the device to cool down completely
• Unplug the power supply cable from the device
• If necessary clean the device
(See „Cleaning the device")
• Lay the device and all disassembled elements into
the original article packaging box and transport of
store as specified in the technical specifications.
See technical specifications.

11. Troubleshooting

1. O nly black-and-white display:
Check whether the color saturation is properly setup or not.
2. P ower on but no pictures:
Check whether the cables of HDMI are correctly connected or not. Please use
the standard power adapter coming with the product package. Improper power
input may cause damage.
3. W rong or abnormal colors:
Check whether the cables are correctly and properly connected or not. Broken or
loose pins of the cables may cause a bad connection.
4. W hen on the picture shows size error:
Press "MENU → FUNCTION → Underscan" to zoom in/out pictures automatical-
ly when receiving HDMI signals
5. O ther problems:
Please press dial button and choose "MENU→SYSTEM→ Reset →ON"
NOTE
Due to constant effort to improve products and product features, specifications
may change without notice.
28

12. Mounting the device on the tripod (optional)

NOTE
Please follow the user information issued by the tripod manufacturer.
WARNING
Only mount the device on a tripod that has been designed for the weight
and dimensions of the device. See technical specifications.
Make sure that the tripod with the mounted device is safe against tipping over or
slipping.

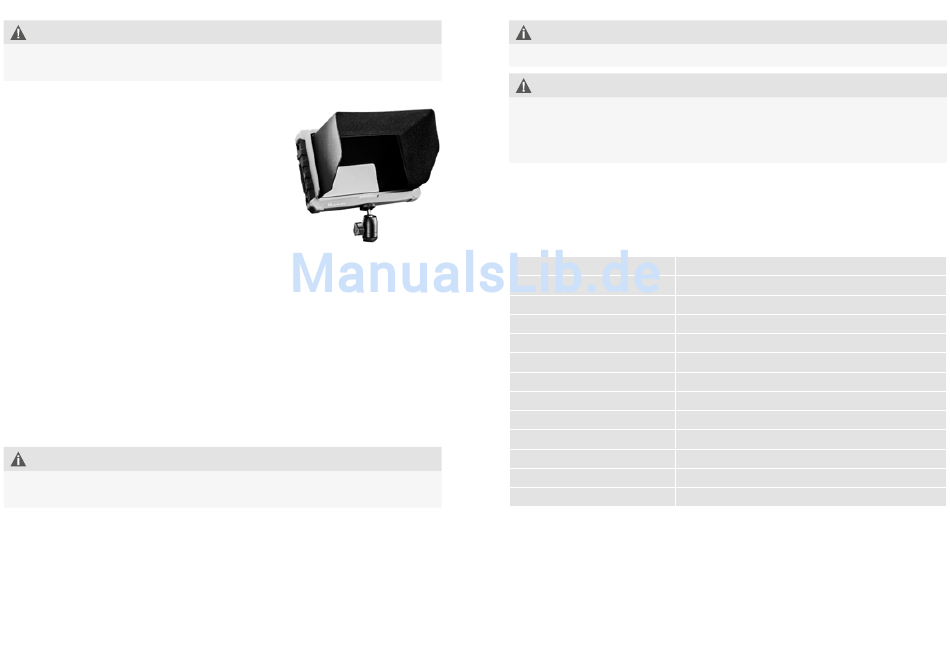

13.1 S crew the monitor on to the 1/4 inch thread of the tripod.
13.2 A ttach the monitor to the ball head: Screw the ball head to the monitor using
the 1/4 inch
thread.
13. Technical specifications
Panel 7" IPS
Physical Resolution 1920×1200 (324 ppi)
Brightness 470 cd/m
Contrast 900 : 1
Viewing Angle 170°/ 170°(H/V)
Input Voltage DC 7-24V
Input Signal HDMI
Output Signal HDMI
Power Consumption ≤11W
Operating Temperature -20°C~60°C
Storage Temperature -30°C~70°C
Dimension (LWD) 182*124*20.5 mm
Weight 317 g incl. Battery plate
