3. Assembly
Note! Before assembling the product, make sure that all the parts are present.

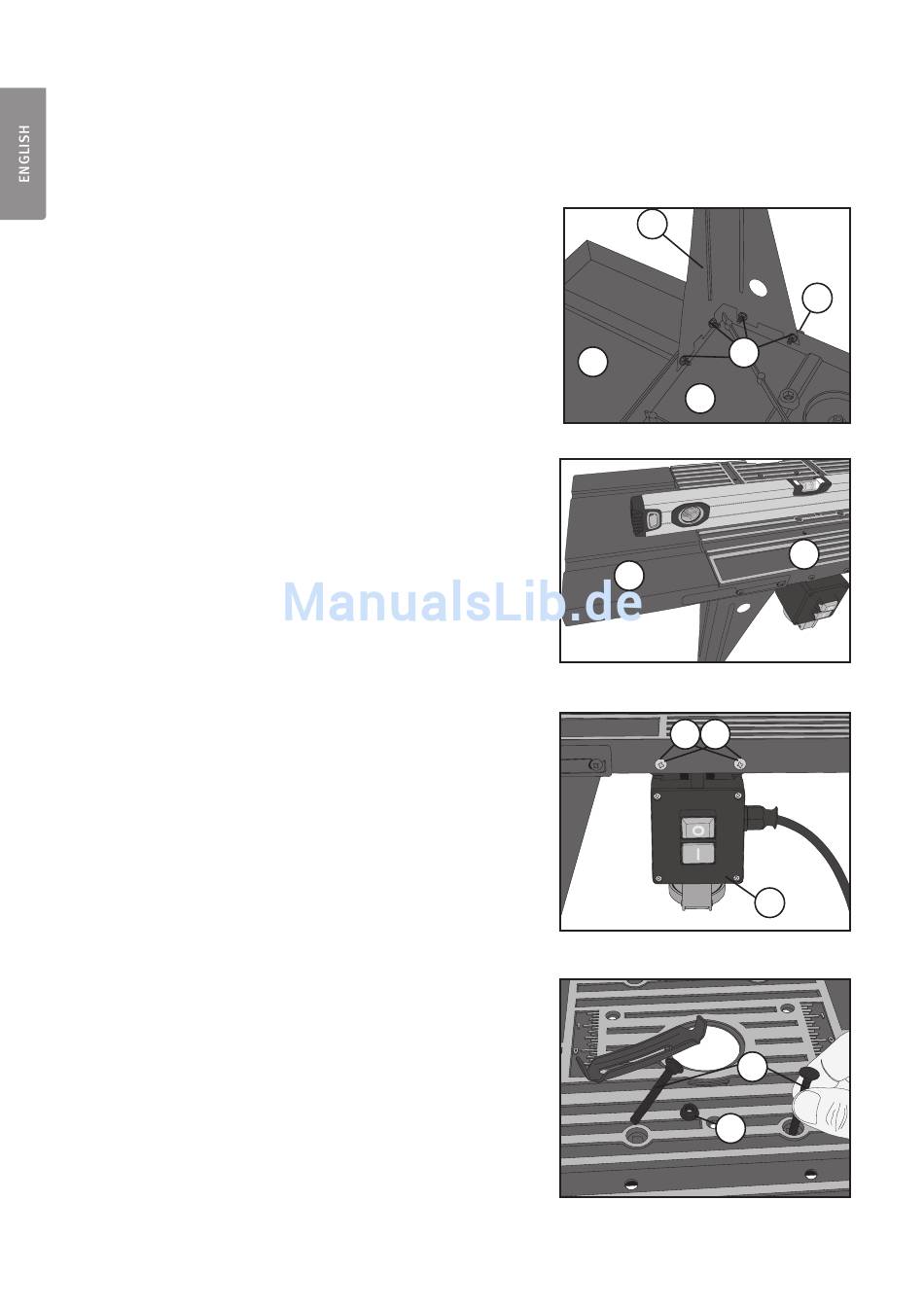

Step 1. Attaching the legs and table extensions
1. Lay the router tabletop (1) onto a bench or work surface with the
underside up. Bolt the legs (3) onto the inside of the tabletop and
the extensions (2) onto the outside. Use bolts (26) and nuts (24).
2. Turn over the tabletop (1) and lay a metal rule or straight edge
over the tabletop and the extensions (2). Adjust the extensions
so that they are level with the tabletop.
Step 2. Attaching the NVR switch
Secure the NVR switch (10) using bolts (26) and nuts (24).
Step 3. Attaching your router to the table
1. Read the router's instruction manual before installing it.
2. Pass the four router fastening bolts (29) through the tabletop from
the upper side and screw on the nuts (24) a few turns so that
the bolts hold the router in place whilst the table is turned over.
