GB / US
C Metal coated water hose (OUT)
F Drain valve
I Hose for water inlet (IN)
4.4

Freshwater connection

• Connect the other end of the water inlet hose (I) to a closeable freshwater tap.
• Freshwater temperature: not below + 5 ° C and not above +40 ° C.
• Supply pressure: 1 bar to 10 bar
• Permissible ingredients: max. permissible chlorine content: 0,1 mg / l.
4.5

Connection to the climatic chamber

Connect the metal hose (C) to the fresh water connection on the rear of the climatic chamber. Insert one
of the two gaskets supplied with the water hose.
Observe the notes on the water connection of the climatic chamber in the operating instructions.
Mounting instructions BINDER Pure Aqua Service (E3) 12/2017

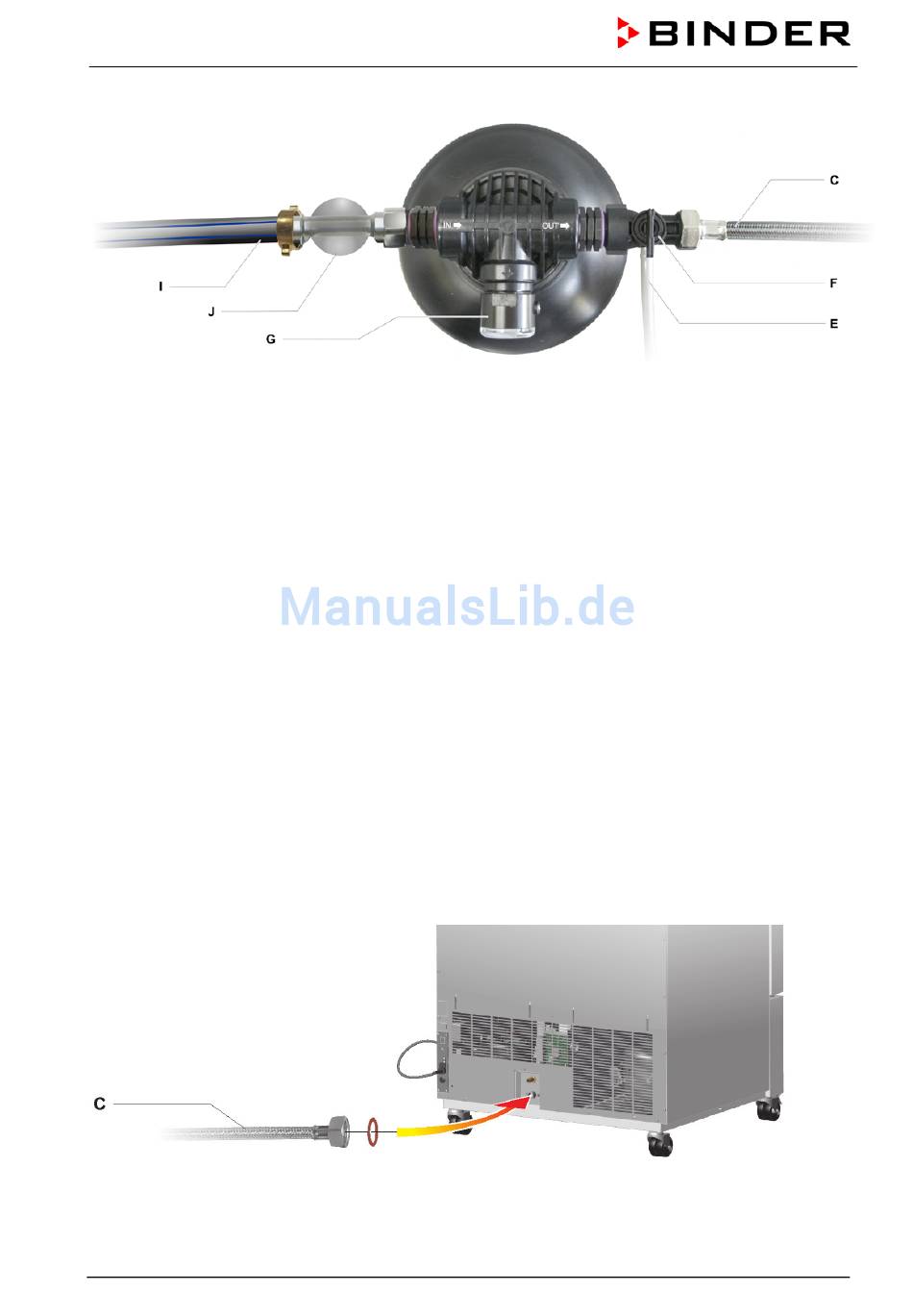

Figure 6: Complete water connection of the cartridge
Figure 7: Water connection to the climatic chamber
E Hose for drain valve
G Conductivity measuring equipment
J Water hammer arrester
page 31/57
