STUDER Innotec COMPACT
2.2.6 Remote control for Power Sharing
This remote control RPS-01 can be connected to the COMPACT in the dedicated
plug. The maximum current available from the energy source can be adjusted by the
turning button.
2.3

Battery connecting

Lead-acid batteries are normally available in blocks of 2V, 6V or 12V. In most cases,
to generate the necessary operating voltage and the capacity of the batteries for the
COMPACT many batteries have to be connected together in parallel and or in series.

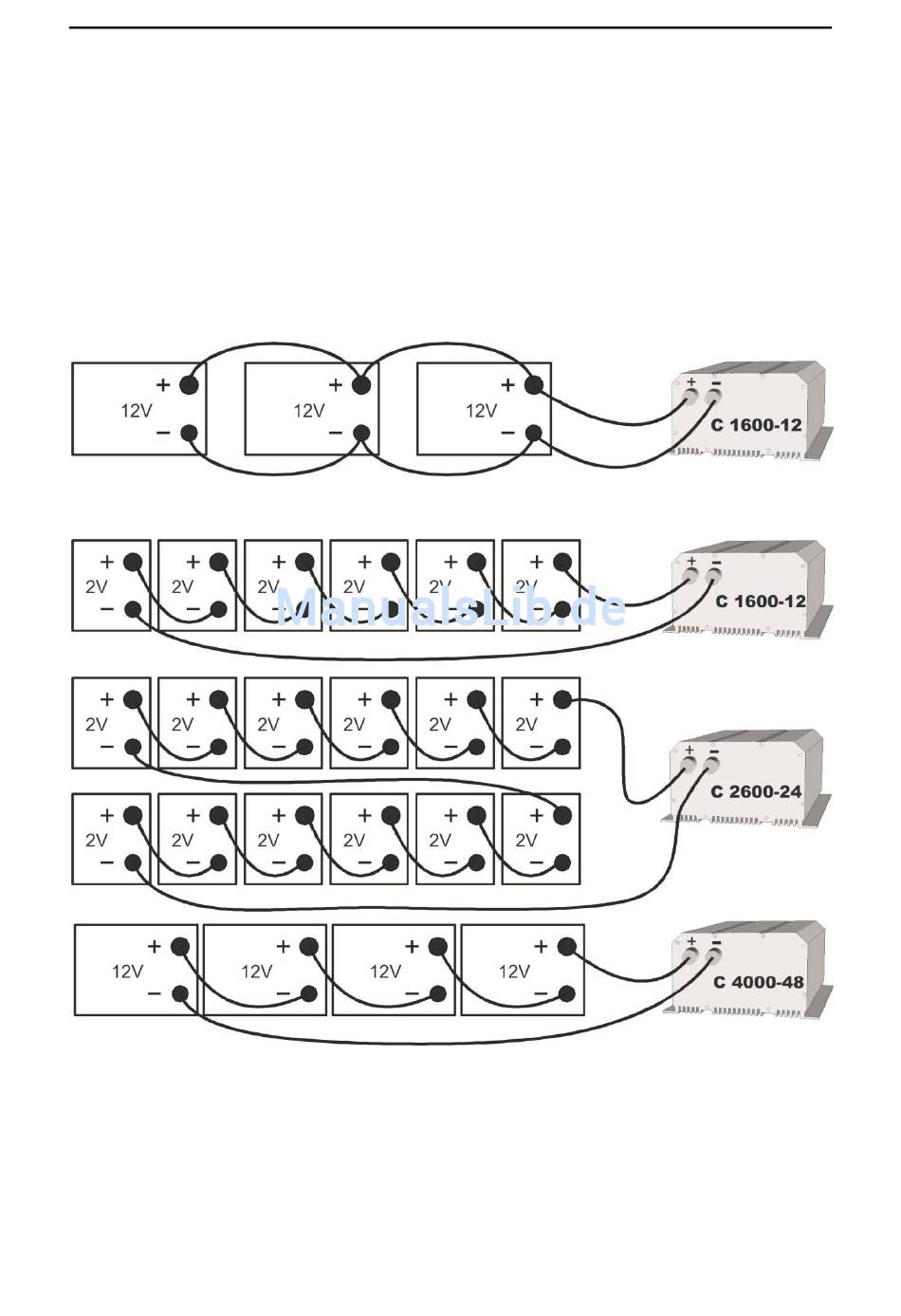

Here are 3 examples of connection:

2.3.1 Connection in parallel

2.3.2 Serial connection

COMPACT V6.9.0 9/84
