STUDER Innotec
4.8

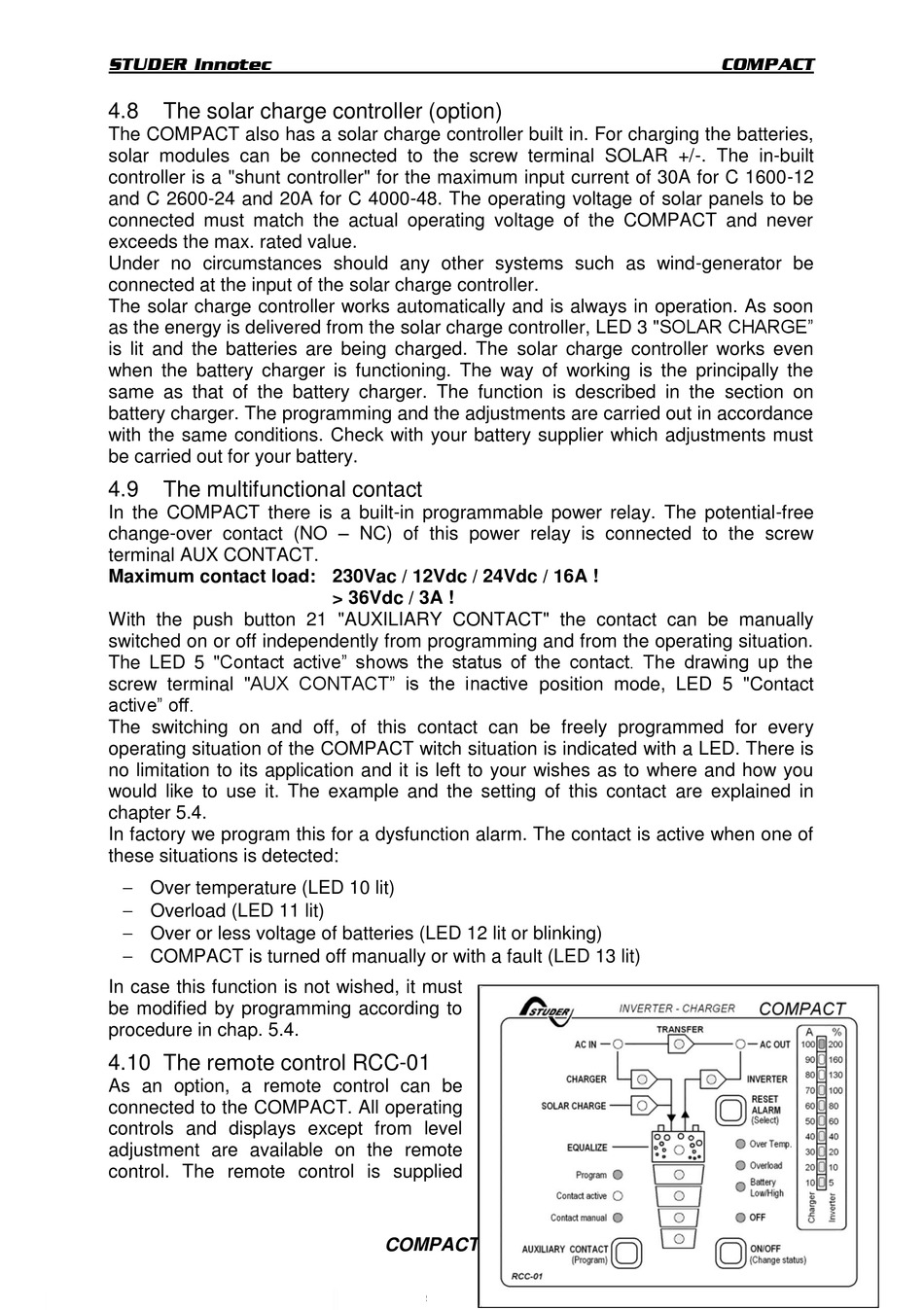

The solar charge controller (option)

The COMPACT also has a solar charge controller built in. For charging the batteries,
solar modules can be connected to the screw terminal SOLAR +/-. The in-built
controller is a "shunt controller" for the maximum input current of 30A for C 1600-12
and C 2600-24 and 20A for C 4000-48. The operating voltage of solar panels to be
connected must match the actual operating voltage of the COMPACT and never
exceeds the max. rated value.
Under no circumstances should any other systems such as wind-generator be
connected at the input of the solar charge controller.
The solar charge controller works automatically and is always in operation. As soon
as the energy is delivered from the solar charge controller, LED 3 "SOLAR CHARGE"
is lit and the batteries are being charged. The solar charge controller works even
when the battery charger is functioning. The way of working is the principally the
same as that of the battery charger. The function is described in the section on
battery charger. The programming and the adjustments are carried out in accordance
with the same conditions. Check with your battery supplier which adjustments must
be carried out for your battery.
4.9

The multifunctional contact

In the COMPACT there is a built-in programmable power relay. The potential-free
change-over contact (NO – NC) of this power relay is connected to the screw
terminal AUX CONTACT.
Maximum contact load: 230Vac / 12Vdc / 24Vdc / 16A !
With the push button 21 "AUXILIARY CONTACT" the contact can be manually
switched on or off independently from programming and from the operating situation.
The LED 5 "Contact active" shows the status of the contact. The drawing up the
screw terminal "AUX CONTACT" is the inactive position mode, LED 5 "Contact
active" off.
The switching on and off, of this contact can be freely programmed for every
operating situation of the COMPACT witch situation is indicated with a LED. There is
no limitation to its application and it is left to your wishes as to where and how you
would like to use it. The example and the setting of this contact are explained in
chapter 5.4.
In factory we program this for a dysfunction alarm. The contact is active when one of
these situations is detected:
 Over temperature (LED 10 lit)
 Overload (LED 11 lit)
 Over or less voltage of batteries (LED 12 lit or blinking)
 COMPACT is turned off manually or with a fault (LED 13 lit)
In case this function is not wished, it must
be modified by programming according to
procedure in chap. 5.4.

4.10 The remote control RCC-01

As an option, a remote control can be
connected to the COMPACT. All operating
controls and displays except from level
adjustment are available on the remote
control. The remote control is supplied
> 36Vdc / 3A !
COMPACT V6.9.0
COMPACT
22/84
