Control

4.1

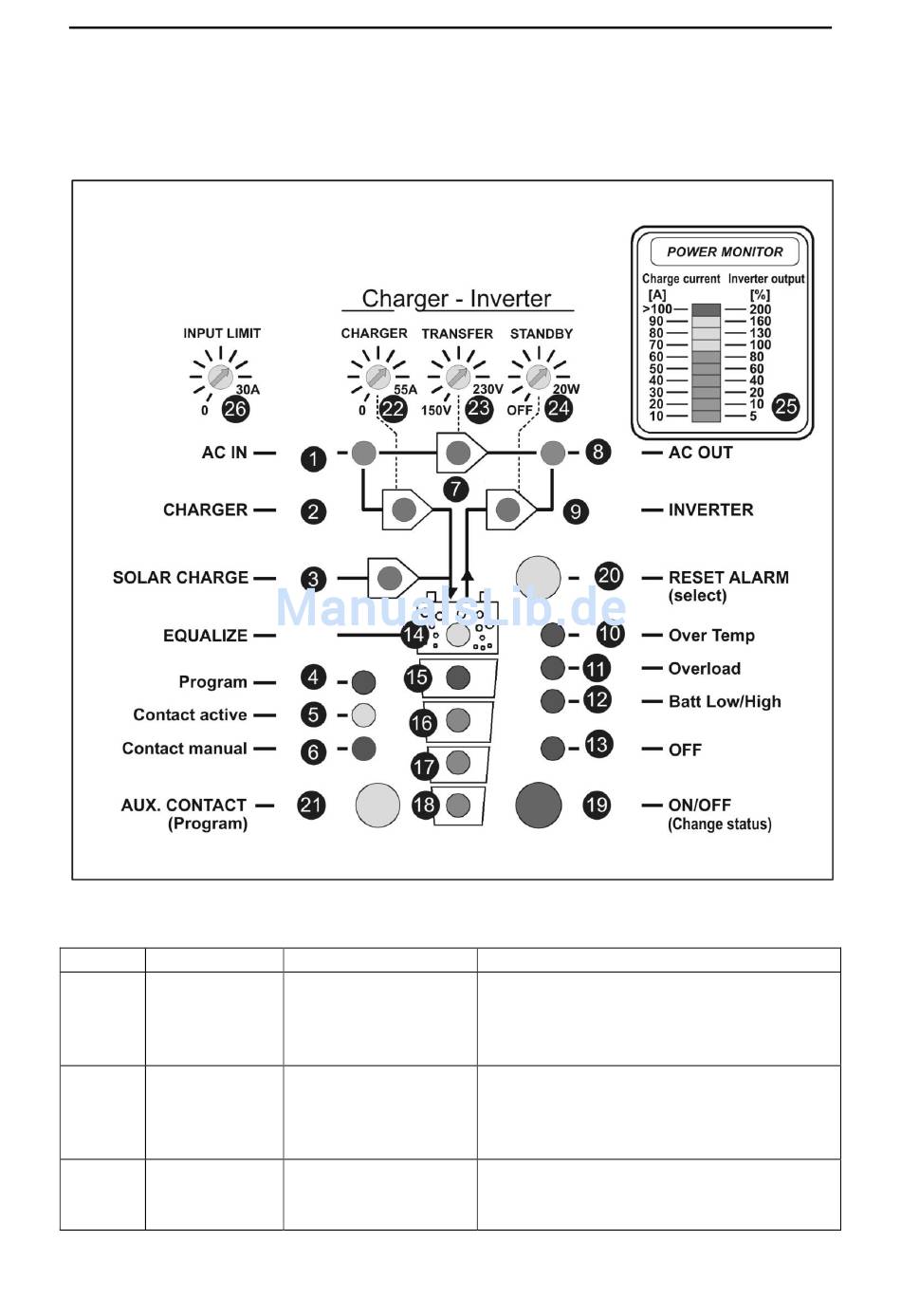

Display and control parameters

4.2

Light emitting diodes (LED)

LED Marking
1 AC IN
2 CHARGER
SOLAR
3
CHARGE
LED lit
Voltage corre-
sponding to self-
adjusted values is
at the AC IN input.
Battery charger is
working
Connected solar
modules are
delivering energy
COMPACT V6.9.0
LED blinks
A voltage outside the self-adjusted
values is at the AC IN input, or the
COMPACT is in synchronization
phases
The battery charger is locked OFF
(see chap. 4.6) or provisory out of
order. In that last case it will restart
within 10 seconds
