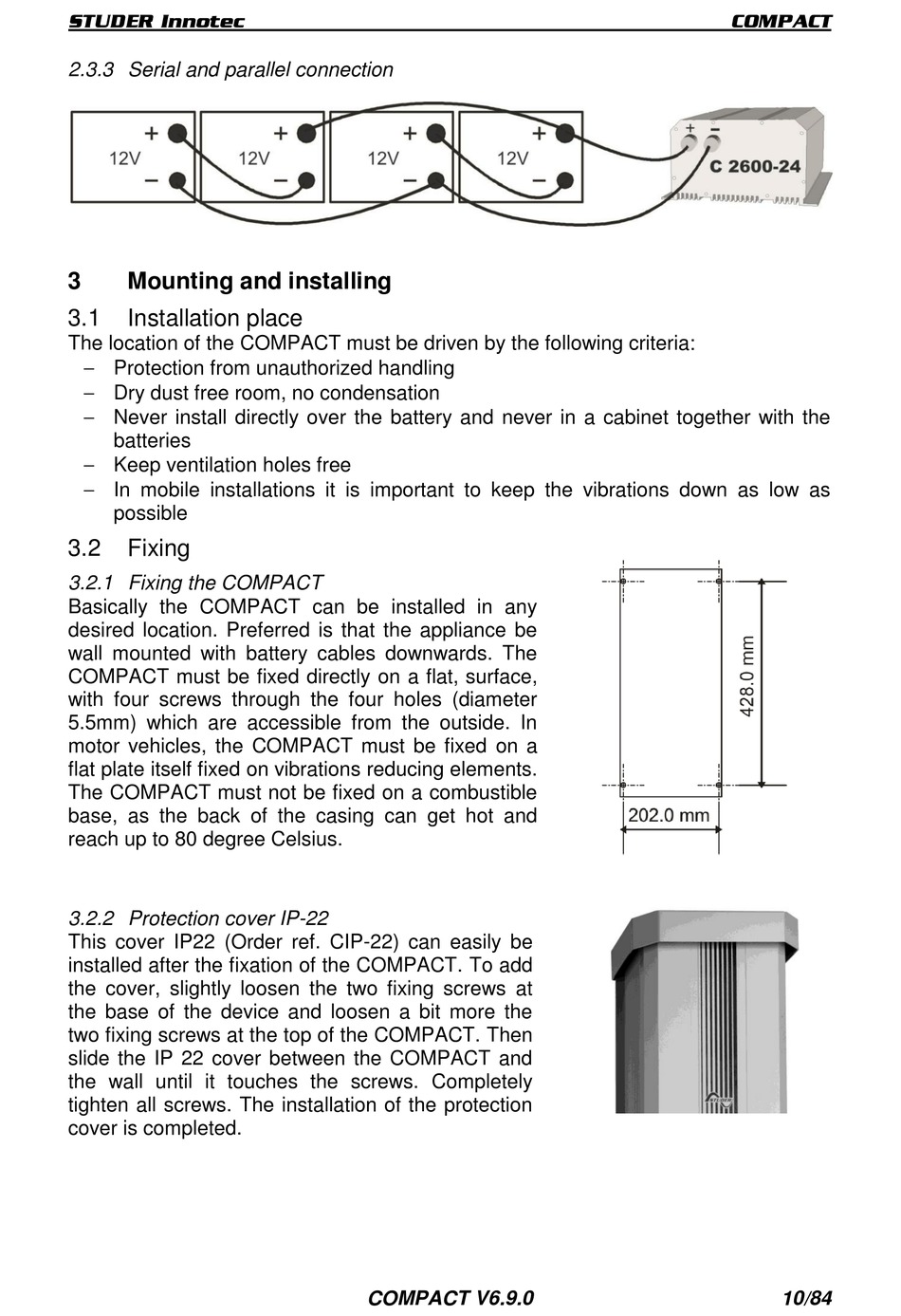

2.3.3 Serial and parallel connection
3

Mounting and installing

3.1

Installation place

The location of the COMPACT must be driven by the following criteria:
 Protection from unauthorized handling
 Dry dust free room, no condensation
 Never install directly over the battery and never in a cabinet together with the
batteries
 Keep ventilation holes free
 In mobile installations it is important to keep the vibrations down as low as
possible
3.2

Fixing

3.2.1 Fixing the COMPACT
Basically the COMPACT can be installed in any
desired location. Preferred is that the appliance be
wall mounted with battery cables downwards. The
COMPACT must be fixed directly on a flat, surface,
with four screws through the four holes (diameter
5.5mm) which are accessible from the outside. In
motor vehicles, the COMPACT must be fixed on a
flat plate itself fixed on vibrations reducing elements.
The COMPACT must not be fixed on a combustible
base, as the back of the casing can get hot and
reach up to 80 degree Celsius.
3.2.2 Protection cover IP-22
This cover IP22 (Order ref. CIP-22) can easily be
installed after the fixation of the COMPACT. To add
the cover, slightly loosen the two fixing screws at
the base of the device and loosen a bit more the
two fixing screws at the top of the COMPACT. Then
slide the IP 22 cover between the COMPACT and
the wall until it touches the screws. Completely
tighten all screws. The installation of the protection
cover is completed.
