STUDER Innotec COMPACT
with a 20m long cable. It can as long as 40m. The remote control is suitable for
surface mounting on the wall or on to a switch board. It is fixed with 4 screws. The
COMPACT can also be programmed with the remote control. The programming is
descry-bed in the section "Programming".
The output power and the charging currents are displayed on the remote control.

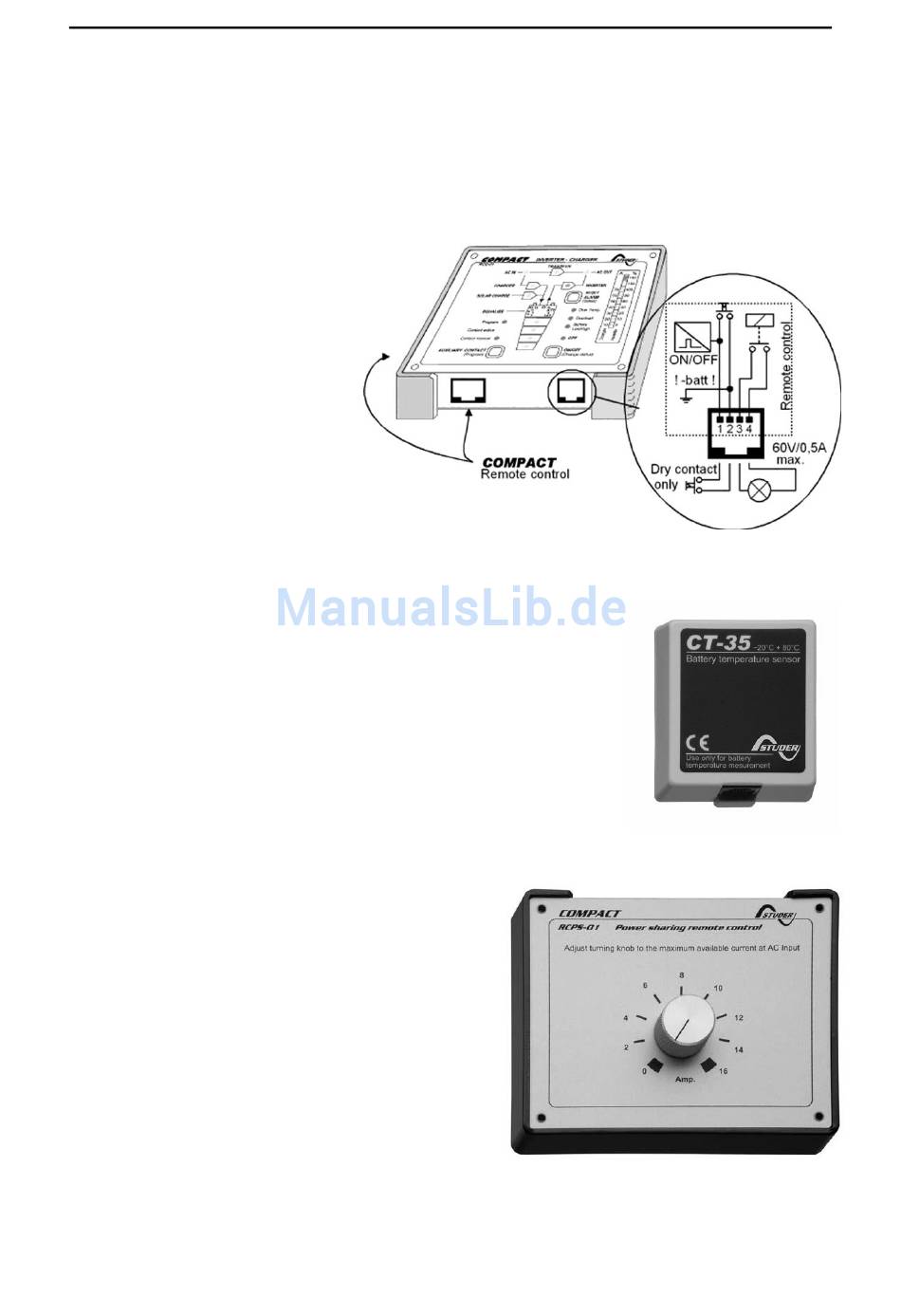

In the remote control there is an additional alarm contact and a built-in control Input.
These two functions are available through Tip-jack RJ11/4 for use. This auxiliary
contact is Front / Work Contact (max. 0.5A!), which is independent from the auxiliary
contact of the COMPACT. This
con-tact is active in case of an
alarm of the COMPACT.
The control input is connected
in parallel to the ON/OFF-
push button. The COMPACT
can be switched on or off
through this input with an
impulse button or an impulse
contact.
Caution: No external voltage
should be connected to this
input control.
Order number for remote control: RCC-01
Dimensions: H x B x T / 111.5 x 136.5 x 25mm

4.11 The temperature sensor CT-35

Operating voltage of lead-acid batteries change depends on
the temperature. To correct the operating voltages according
to the actual temperatures, a temperature sensor can be
connected to the COMPACT.
The compensation through the sensor is –3mV/°C/Cell.
Order number: CT-35
Dimensions: H x B x T / 58 x 51.5 x 22mm

4.12 Remote control for "Power Sharing" RPS-01

If the remote control RPS-01 is installed, the
trimmer (26) "INPUT LIMIT" has to be set on
the value max.. The COMPACT takes into
account the lowest values set on the inverter
and on the remote control.
The current available at the COMPACT input
will be determined by the power of the
connected source (generator, grid etc...).
The potentiometer on the RPS-01 must be
adjusted lower or equal to max. value of the
power source.
For instance if the source is a generator of
2000 Watt, the potentiometer has to be set
at max. 8A. This value is obtained in dividing 2000 Watt by 230V. If the COMPACT is
connected to a power source which is protected by a 6A circuit breaker, the
potentiometer must be set at a max. value of 6A.
COMPACT V6.9.0 23/84
