Caution: the COMPACT will not limit if an appliance draws more current than
available from the source! This means that the connected generator will be
over-loaded or that the circuit-breaker before the COMPACT will break.
5

Programming

The COMPACT is equipped with a Flash processor fitted out with a Flash memory,
which means that even when it is disconnected from the battery, the parameters that
were programmed for the application remain after a new connection to the battery.
It is possible to reinitialize (RESET) the COMPACT by pressing simultaneously on
the three push buttons 19/20/21 during at least 2 seconds. A beep will confirm the
RESET. The inverter switches off after this operation. It can be turned on again after
the beep. The programmed parameters will remain.
5.1

Standard setting

The COMPACT is delivered with the following default settings:
Auxiliary contact: active in case of defect or manual turn off with the LED 10/11/12/13
Battery voltage :
Absorption time :
Equalizing time :
5.2

Reset value (default settings)

To come back to the default settings, press simultaneously on the push buttons
20/21 during at least 2 seconds. A beep will confirm the comeback to the factory
settings. The inverter switches off after this operation. It can be turned on again after
the beep.
5.3

Battery voltages and absorption time

5.3.1 Set the voltage and timing threshold
The programming is done in
accordance with the following
steps:
Push and hold down, the push
button 21 (Program) and the
push button 19 (Change status)
for minimum
simultaneously.
With the push button 20 (select)
select which of the battery level
and of the absorption time have
to be changed.
These four red LED's show the function set:
Low voltage
Float charge
Absorption (End of charge)
Equalization
Absorption time
Low voltage
Float charge
End of charge voltage
Equalization
2 seconds

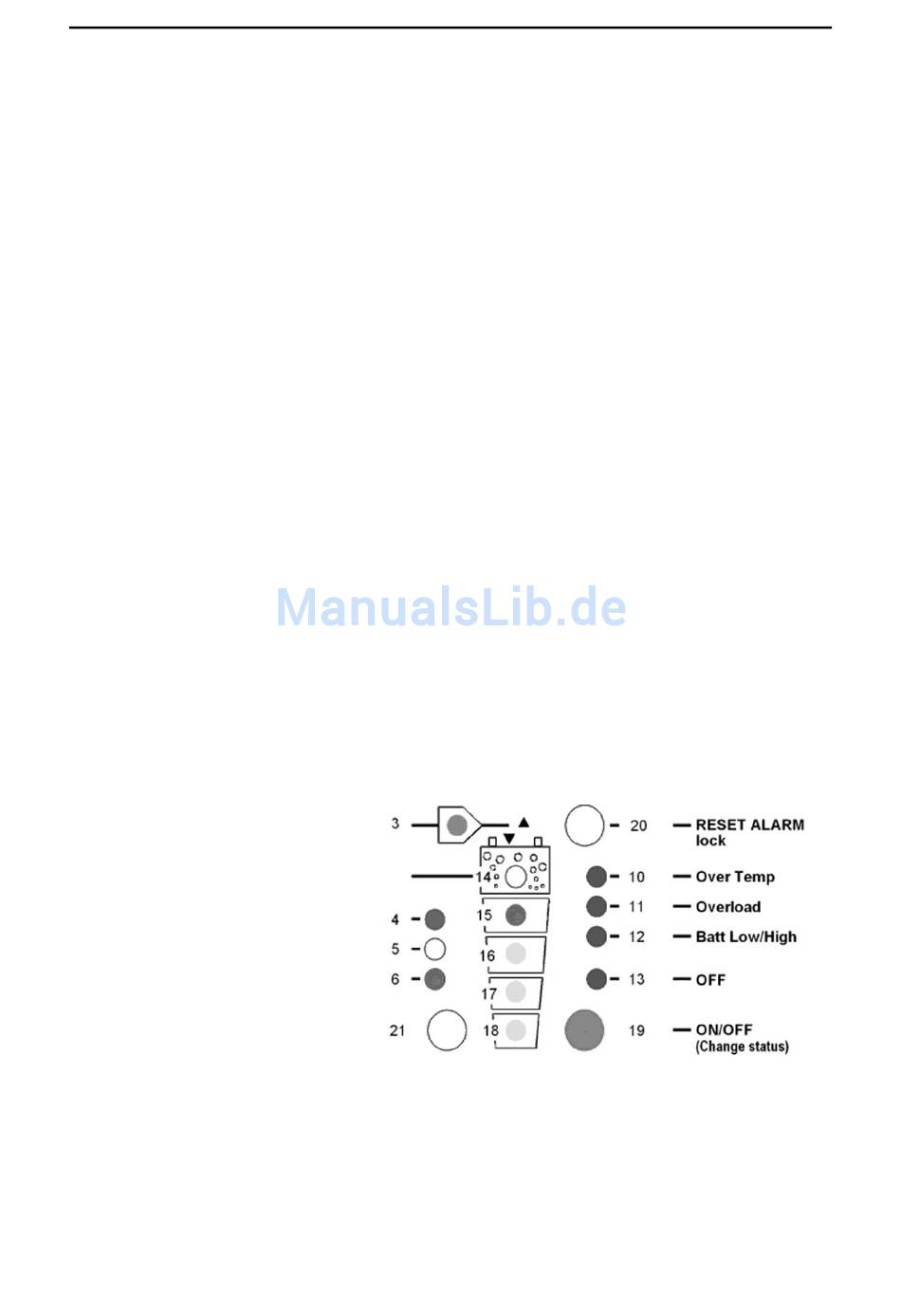

LED 13 (ON/OFF)
LED 12 (Batt. Low/high)
LED 11 (Overload)
LED 10 (Overtemp.)
LED 10/11/12/13 (altogether)
