Setup menu

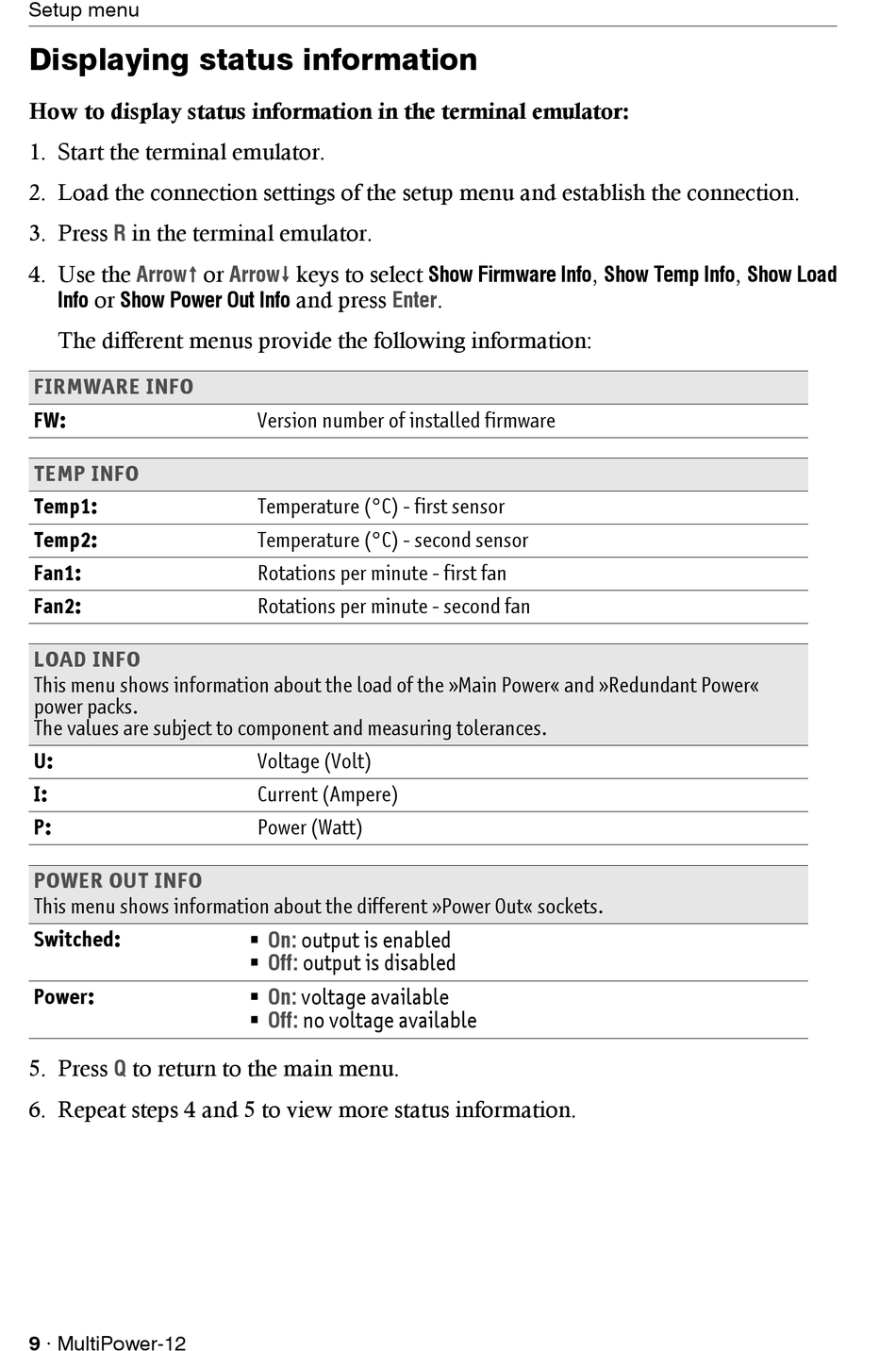

Displaying status information

How to display status information in the terminal emulator:
1. Start the terminal emulator.
2. Load the connection settings of the setup menu and establish the connection.
3. Press in the terminal emulator.
R
4. Use the
Arrow
or
Info Show Power Out Info
The different menus provide the following information:
FIRMWARE INFO
FW:
TEMP INFO
Temp1:
Temp2:
Fan1:
Fan2:
LOAD INFO
This menu shows information about the load of the »Main Power« and »Redundant Power«
power packs.
The values are subject to component and measuring tolerances.
U:
I:
P:
POWER OUT INFO
This menu shows information about the different »Power Out« sockets.
Switched:
Power:
5. Press to return to the main menu.
Q
6. Repeat steps 4 and 5 to view more status information.
9 · MultiPower-12
or keys to select
Arrow
and press
Version number of installed firmware
Temperature (°C) - first sensor
Temperature (°C) - second sensor
Rotations per minute - first fan
Rotations per minute - second fan
Voltage (Volt)
Current (Ampere)
Power (Watt)
output is enabled
 On:
output is disabled
 Off:
On: voltage available

no voltage available
 Off:
Show Firmware Info
.
Enter
, ,
Show Temp Info Show Load
