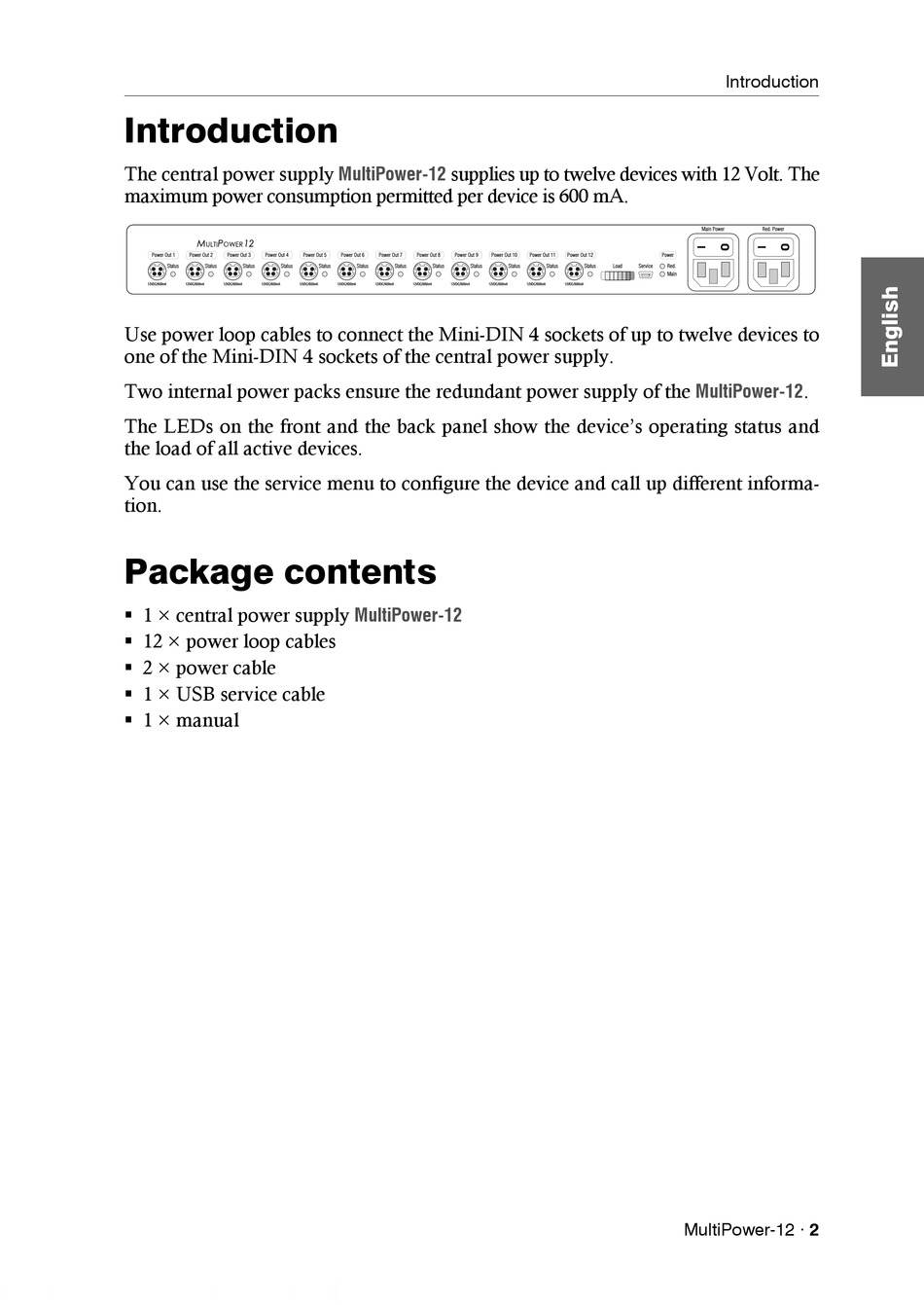

Introduction

The central power supply
maximum power consumption permitted per device is 600 mA.
Power Out 1 Power Out 2 Power Out 3 Power Out 4
Status Status Status Status
12VDC/600mA 12VDC/600mA 12VDC/600mA 12VDC/600mA
Use power loop cables to connect the Mini-DIN 4 sockets of up to twelve devices to
one of the Mini-DIN 4 sockets of the central power supply.
Two internal power packs ensure the redundant power supply of the
The LEDs on the front and the back panel show the device's operating status and
the load of all active devices.
You can use the service menu to configure the device and call up different informa-
tion.

Package contents

 1 × central power supply
 12 × power loop cables
 2 × power cable
 1 × USB service cable
 1 × manual
supplies up to twelve devices with 12 Volt. The
MultiPower-12
Power Out 5 Power Out 6 Power Out 7 Power Out 8 Power Out 9
Status Status Status Status Status
12VDC/600mA 12VDC/600mA 12VDC/600mA 12VDC/600mA 12VDC/600mA
MultiPower-12
Power Out 10 Power Out 11 Power Out 12 Power
Status Status Status Load Service
12VDC/600mA 12VDC/600mA 12VDC/600mA
Introduction
Main Power Red. Power
Red.
Main
MultiPower-12 .
MultiPower-12 · 2
