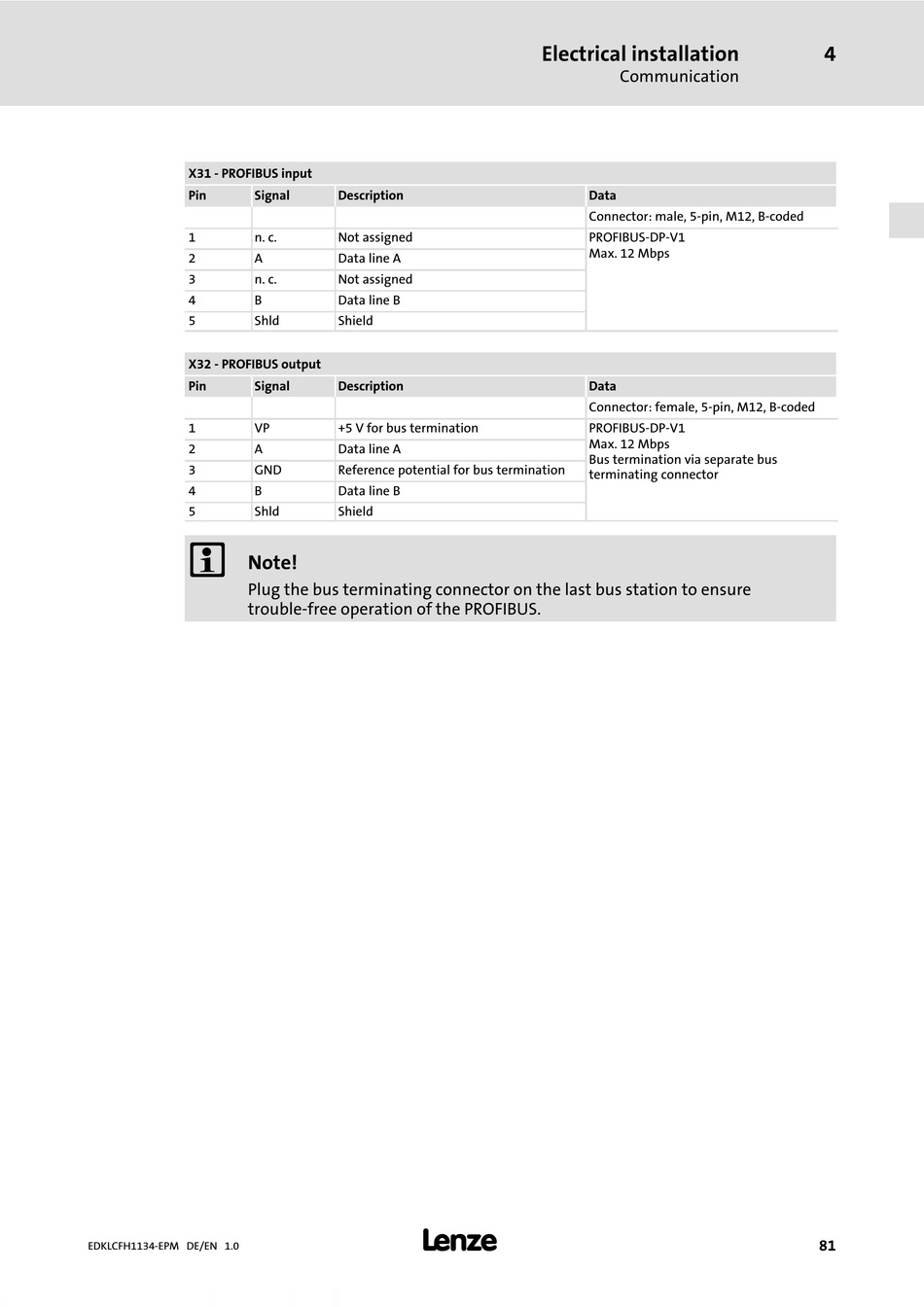

X31 − PROFIBUS input
Pin Signal
1 n. c.
2 A
3 n. c.
4 B
5 Shld
X32 − PROFIBUS output
Pin Signal
1 VP
2 A
3 GND
4 B
5 Shld
)
Note!
Plug the bus terminating connector on the last bus station to ensure
trouble−free operation of the PROFIBUS.
EDKLCFH1134−EPM DE/EN 1.0
Description
Not assigned
Data line A
Not assigned
Data line B
Shield
Description
+5 V for bus termination
Data line A
Reference potential for bus termination
Data line B
Shield
l
Electrical installation
Communication
Data
Connector: male, 5−pin, M12, B−coded
PROFIBUS−DP−V1
Max. 12 Mbps
Data
Connector: female, 5−pin, M12, B−coded
PROFIBUS−DP−V1
Max. 12 Mbps
Bus termination via separate bus
terminating connector
