2. CONNECTIONS & CONTROLS

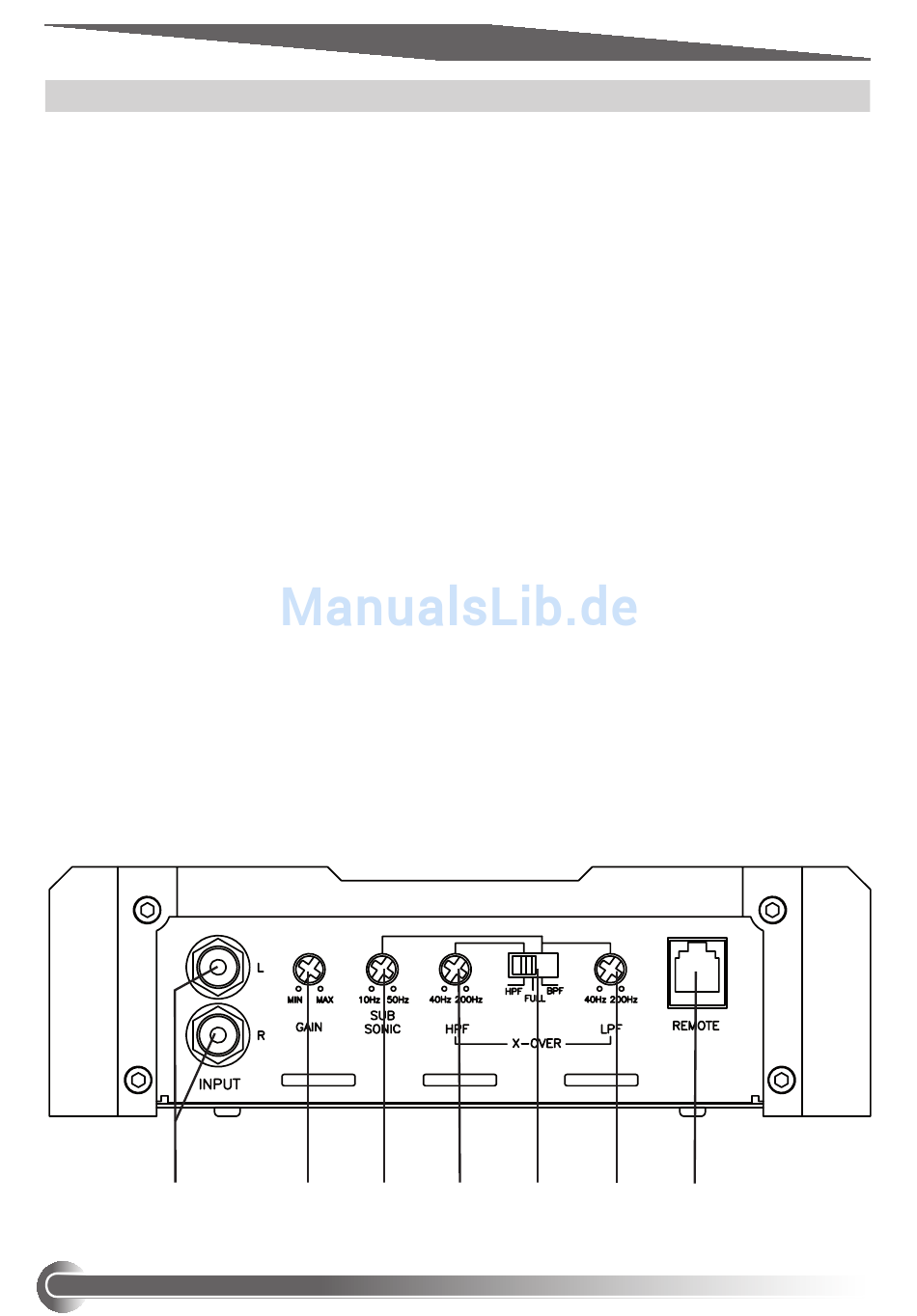

2.2 FRONT PANEL EA2250XT
1 RCA INPUTS
Low-level stereo RCA signal input for connection with line-out of the
head-unit (sub-out).
2 INPUT GAIN CONTROL
Input gain control potentiometer, allowing to match the output voltage of the headunit's
RCA line-outs to the amplifier input section.
3 SUBSONIC CROSSOVER FREQUENCY CONTROL
Crossover control potentiometer for the frequency adjustment of the 12 dB/oct.
subsonic high-pass filter.
4 HIGH PASS FREQUENCY CONTROL
Crossover control potentiometer for the frequency adjustment of the 12 dB/oct.
high-pass filter.
5 OPERATION MODE SWITCH
Switch to select the operation mode of the electronic crossover driving the amplifier
channel(s).
6 LOW PASS CROSSOVER FREQUENCY CONTROL
Crossover control potentiometer for the frequency adjustment of the 12 dB/oct. low-
pass filter.
7 REMOTE LEVEL PORT
Connect dash-mounted level remote unit via telephone jack input socket.
1
8
2 3 4 5 6
7
