2. CONNECTIONS & CONTROLS

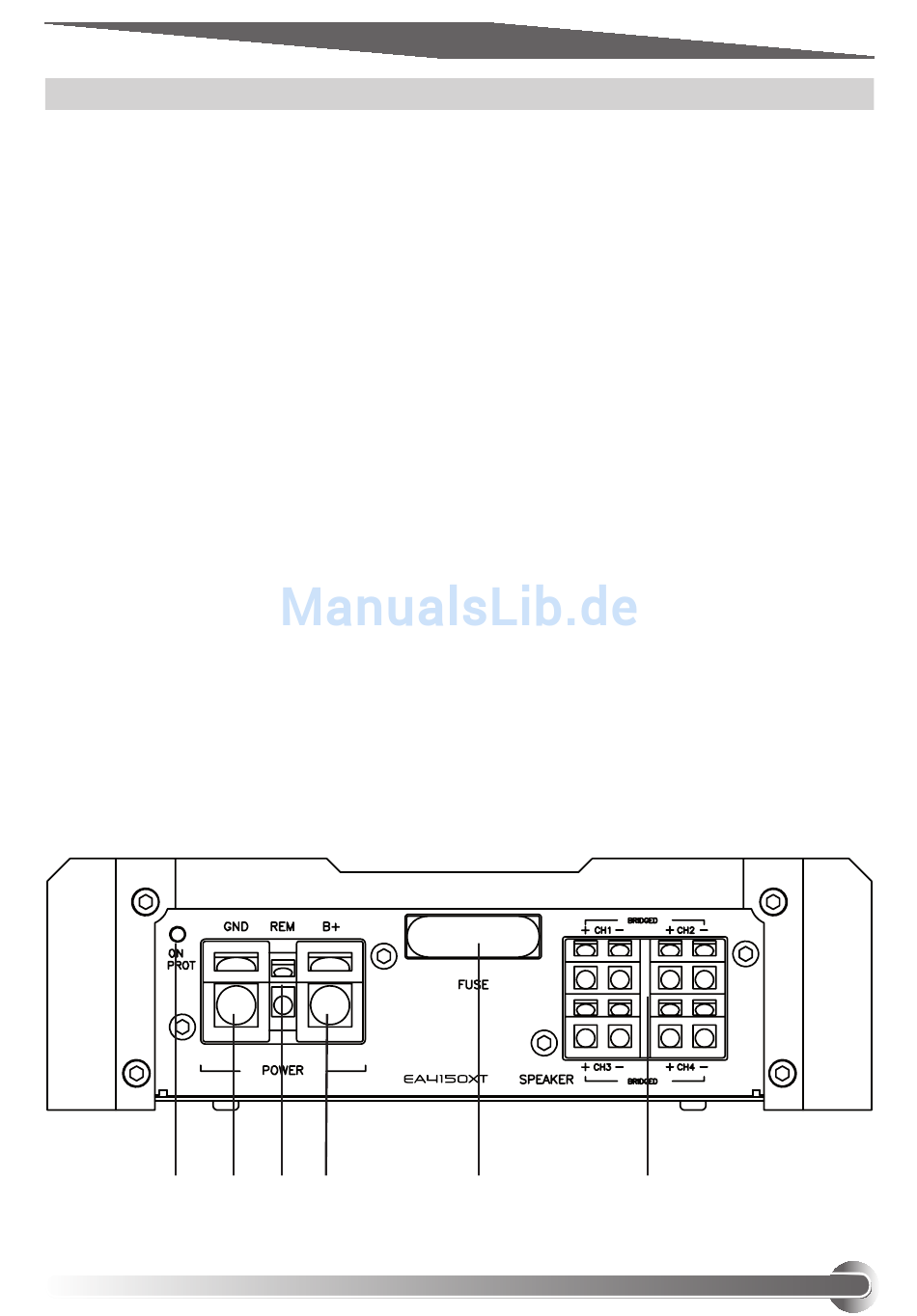

2.3 REAR PANEL EA4150XT
11 POWER LED / PROTECTION LED
Red „protection" LED, signalling faulty connections or malfunction of the amplifier.
Green Power-LED, signalling correct operation of the amplifier.
12 GND POWER INPUT TERMINAL
Moulded direct power input terminal to connect the amplifier to the negative or ground
wire of the vehicle.
13 REM REMOTE INPUT TERMINAL
Terminal to connect the amplifier to the (remote) turn-on /turn-off lead of the head-
unit.
14 +12 V POWER INPUT TERMINAL
Moulded direct power input terminal to connect the amplifier to the positive +12 V
power wire connected to the car battery.
15 FUSE
80 Ampere Maxi fuse.
16 SPEAKER OUTPUT TERMINALS 1/2-CH and 3/4-CH
Moulded output terminals to connect loudspeakers in stereo or bridged mode.
