2. CONNECTIONS & CONTROLS

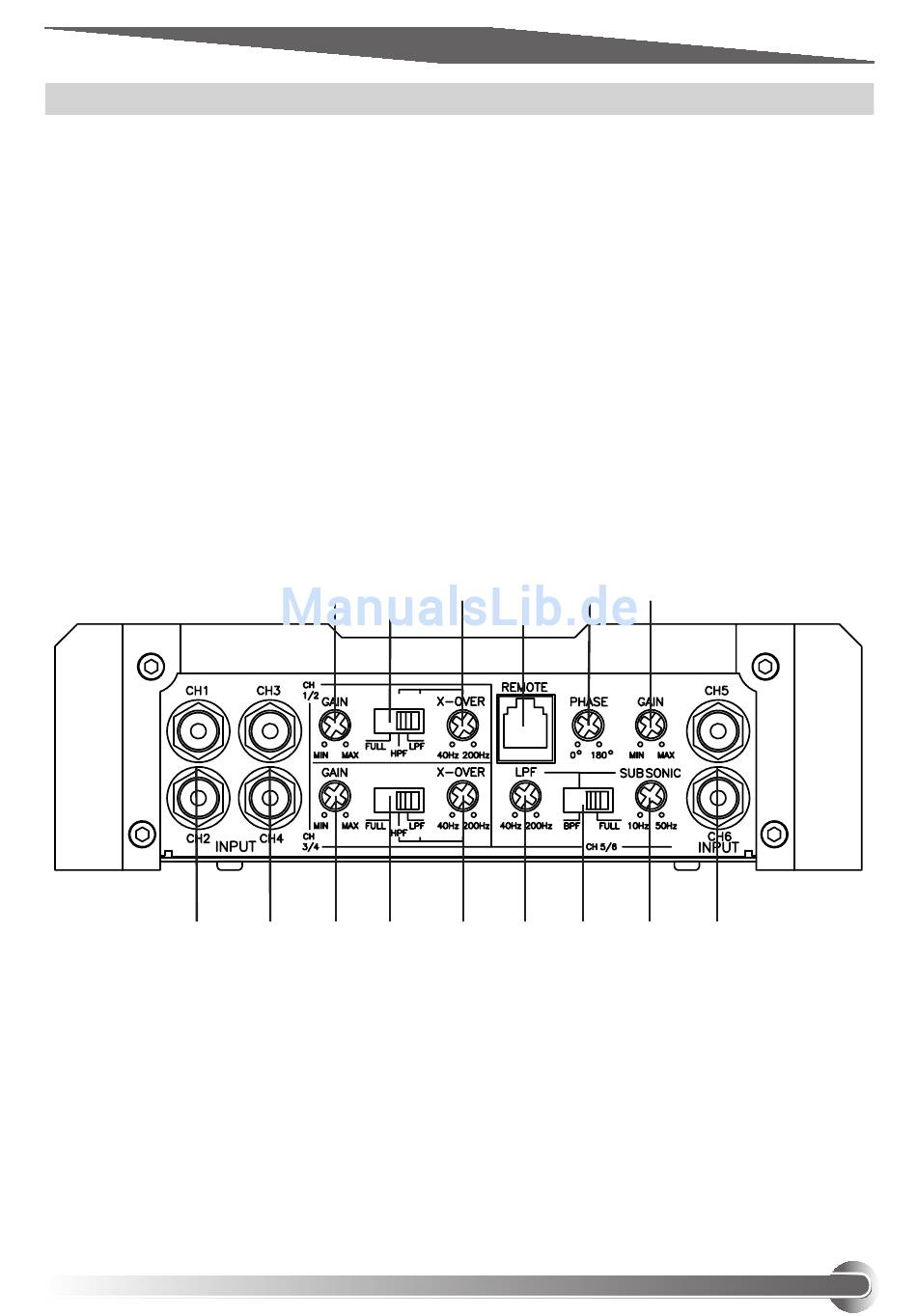

2.4 FRONT PANEL EA460-300XT
12 LOW PASS FREQUENCY CONTROL 5-CH
Crossover control potentiometer for the frequency adjustment of the 12 dB/oct.
low-pass filter for CH 5.
13 OPERATION MODE SWITCH 5-CH
Switch to select the operation mode of the electronic filter driving 5-CH section of the
amplifier.
14 SUBSONIC FREQUENCY CONTROL 5-CH
Crossover control potentiometer for the frequency adjustment of the 12 dB/oct.
subsonic high-pass filter for CH 5.
15 RCA INPUT 5-CH
Low-level stereo RCA signal input for connection with head-unit.
