2. CONNECTIONS & CONTROLS

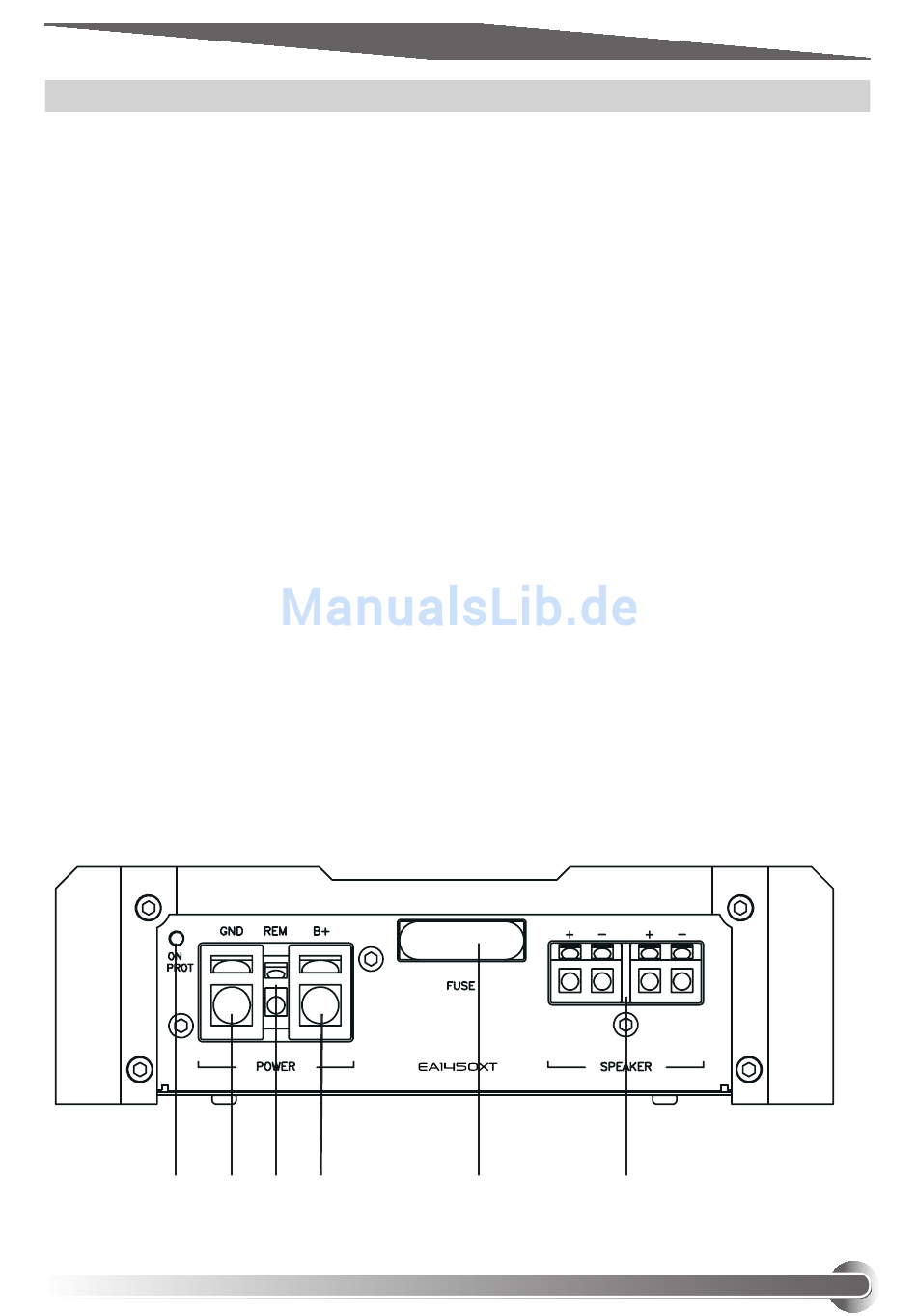

2.1 REAR PANEL EA1450XT
8 POWER LED / PROTECTION LED
Green Power-LED, signaling correct operation of the amplifier. Red "protection" LED,
signaling faulty speaker connections or general malfunction of the amplifier.
9 GND POWER INPUT TERMINAL
Moulded direct power input terminal to connect the amplifier to the negative or ground
wire of the vehicle.
10 REMOTE INPUT TERMINAL
Terminal to connect the amplifier to the automatic (remote) turn-on/turn-off lead of the
head-unit.
11 +12 V POWER INPUT TERMINAL
Moulded direct power input terminal to connect the amplifier to the positive +12 V
power wire connected to the car battery.
12 FUSE
80 Ampere Maxi fuse.
13 SPEAKER TERMINALS
Moulded loudspeaker output terminals to connect loudspeakers. The Mono Amp
EA1450XT features two parallel Plus and two Minus poles.
