2. CONNECTIONS & CONTROLS

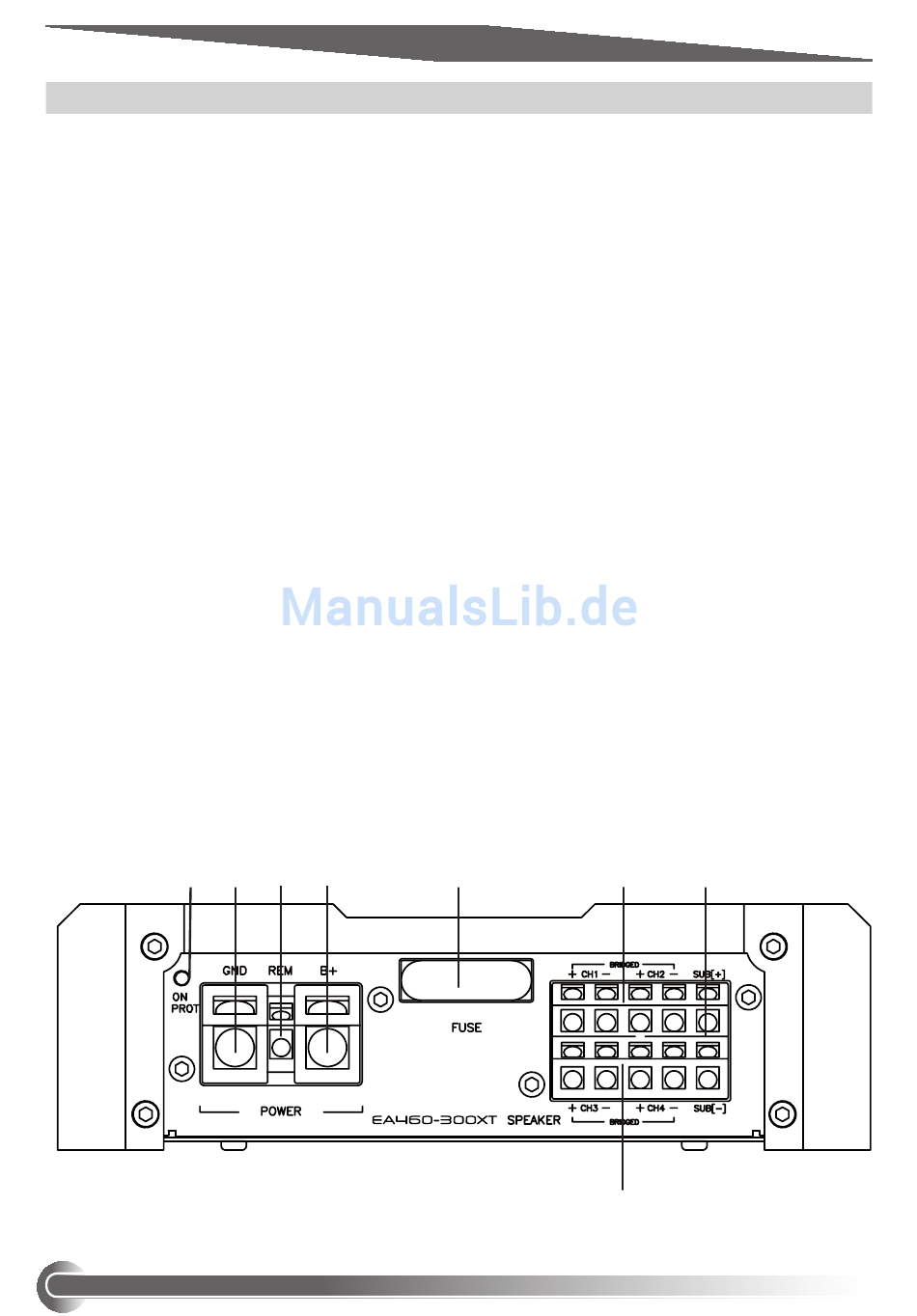

2.4 REAR PANEL EA460-300XT
16 POWER LED / PROTECTION LED
Red „protection" LED, signaling faulty speaker connections or general malfunction of
the amplifier. Green Power-LED, signaling correct operation of the amplifier.
17 GND POWER INPUT TERMINAL
Moulded direct power input terminal to connect the amplifier to the negative or ground
pole of the car battery.
18 REM REMOTE INPUT TERMINAL
Terminal to connect the amplifier to the automatic (remote) turn-on / turn-off lead of
the head-unit.
19 +12 V POWER INPUT TERMINAL
Moulded direct power input terminal to connect the amplifier to the positive +12 V
pole of the car battery.
20 FUSE
80 Ampere Maxi fuse
21 SPEAKER OUTPUT TERMINALS 1/2-CH
Output terminal to connect the speakers to the 1/2-CH channels of the amplifier.
22 SPEAKER OUTPUT TERMINALS 3/4-CH
Output terminal to connect the speakers to the 3/4-CH channels of the amplifier.
23 SPEAKER OUTPUT TERMINALS 5-CH
Output terminal to connect the speakers to the 5-CH mono channel of the amplifier.
16 17 18 19
14
20 21
22
23
