CAB Apollo 4 Serviceanleitung Seite 71

Anlage A
Index 0 99-02-12

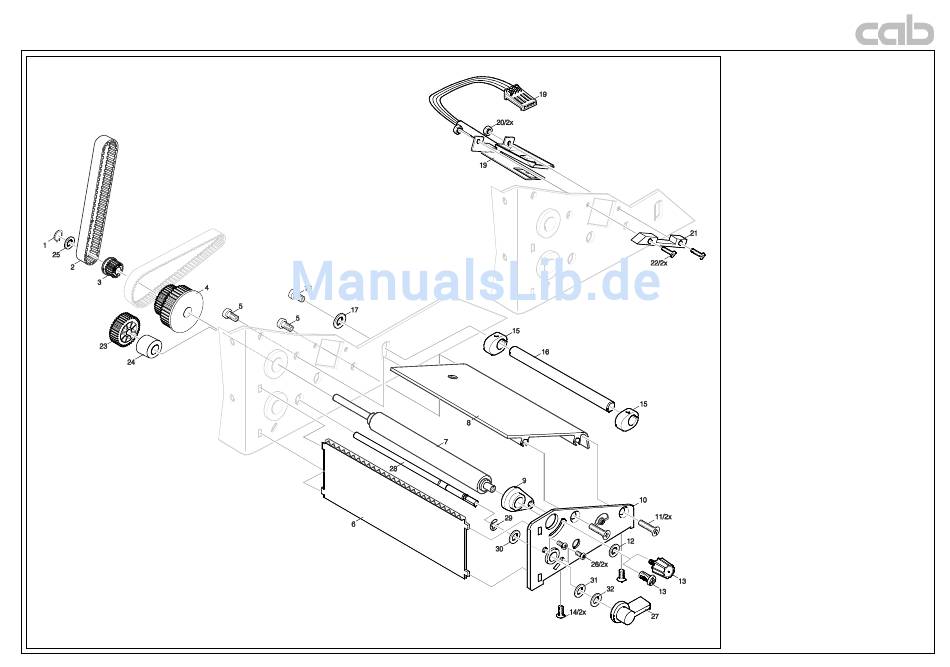

No. Part-No. Description Pieces
1 590 3521 Snap Ring DIN471-6
2 590 5322 Belt 130MXL 037
3 553 0429 Gear 21-teeth
4 553 4102 Gear 42-45-teeth
5 590 2253 Screw DIN7985/DIN7500-M4x8-Z-galZn
6 553 4113 Tear Plate
7 553 4104 Drive Roller
8 553 4165 Drive Roller Housing
9 553 4108 Bearing, cammed adjust for head levelling
10 553 4381 Bearing Plate
10 553 6944 Bearing Plate
11 590 2272 Screw DIN965/DIN7500-M4x12-PZ-galZn
12 590 3004 Washer DIN125-A3.2-galZn
13 553 4511 Thumbscrew
13 590 2084 Pan Head Screw DIN7985-M3x5-4.8-H-galZn 1 3)4)
14 590 2131 Screw KB40x8 WN1412-galZn
15 553 4152 Guide, Media (adjustable)
16 553 0373 Media Guide Shaft
17 590 3037 Washer DIN9021-5.3-galZn
18 590 2138 Screw DIN912-M5x10-8.8-galZn
19 553 6803 Label Sensor Assy, see through photo cell
19 553 6726 Label Sensor Assy, Apollo 4
20 590 2506 Nut, Media Sensor Housing
DIN934-M2.5-8-galNi
21 553 4155 Separator, Gap Sensor
22 590 2177 Flush Screw DIN965-M2.5x12-4.8-galZn
23 553 6795 Tooth Gear
24 553 6798 Spacer Bushing
25 590 3051 Washer DIN988-4x8x0,2
26 590 2042 Screw DIN7985-M2.5x4-4.8-H-galZn
27 553 6946 Lever
28 553 6943 Cutter locking axle
29 590 3505 E-Ring DIN6799-5-St-galZn
30 590 3025 Washer DIN988-6x12x0.2
31 553 0450 Rubber washer
32 590 3079 Washer DIN988-6x10x1
1) Apollo 4/300
2) Apollo 4/200
3) Apollo 4/300C
4) Apollo 4/200C
Apollo 4
1
1
1
1 2)4)
2
1
1
1
1
1 1)2)
1 3)4)
2
1
1 1)2)
2
2
1
1
1
1 1)2)
1 3)4)
2
1
2
1 1)3)
1 1)3)
1
2 3)4)
1 3)4)
1 3)4)
1 3)4)
1 3)4)
1 3)4)
1 3)4)
A-6
