2.2.4 Assign the / PRESETS / buttons:

A / PRESETS / button is assigned to each slider. By default, the / PRESETS / buttons are as follows:
Slider Function
Slider 1 RED
Slider 2 GREEN
Slider 3 BLUE
Slider 4 WHITE
Slider 5 COLOR
Slider 6 GOBO

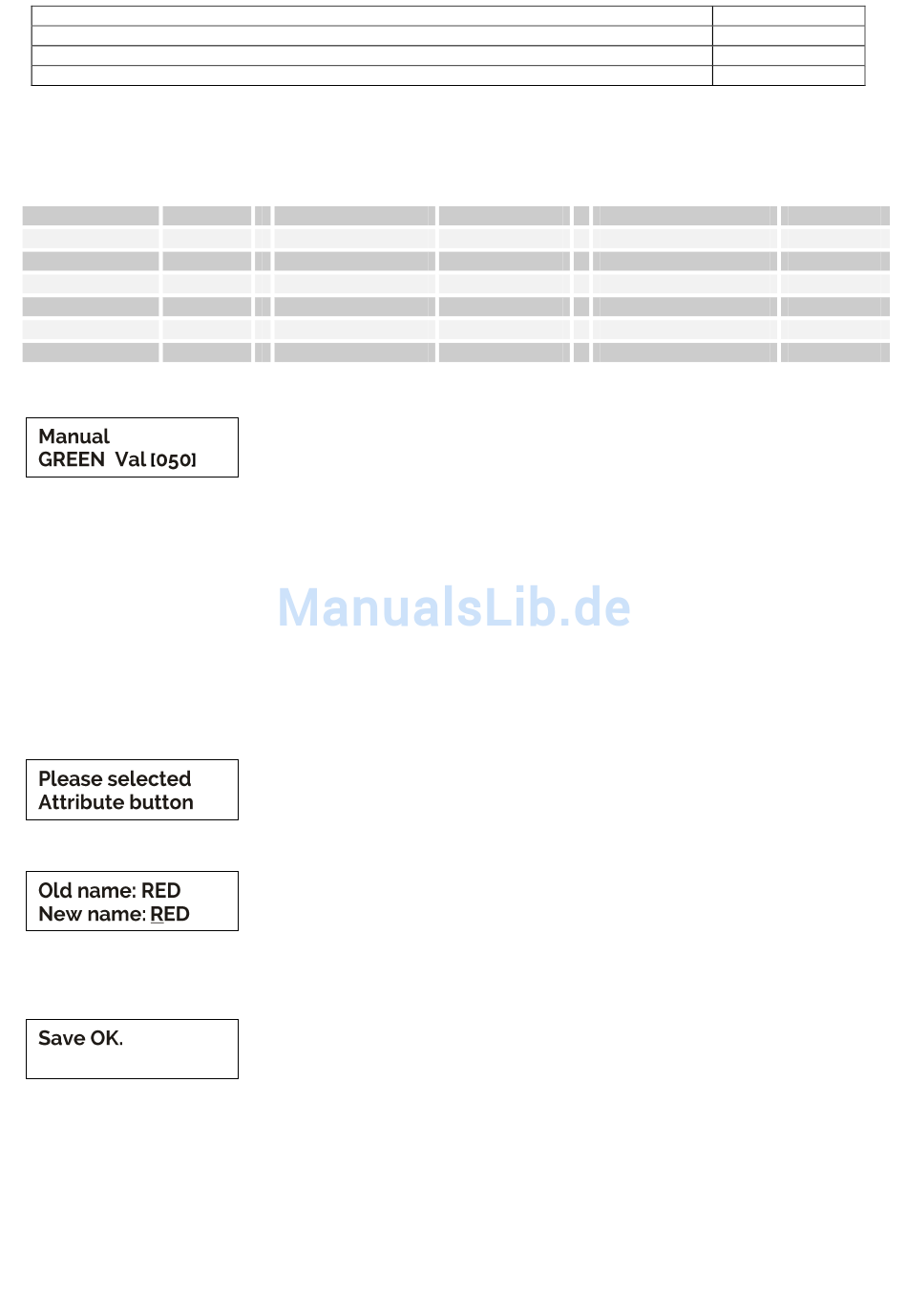

When you press a slider, the display shows the name of the corresponding channel and its DMX value. e.g.:
The / PRESET / buttons can be freely defined and rewritten according to your specific scheme.
You can freely assign DMX channels of the fixtures to the / PRESET / buttons.
To reset / PRESETS / buttons:
1. Turn off the unit.
2. While holding down the / PROGRAM / REC /, / FIXTURE16 / and / PATCH / buttons, turn the unit on. The
display shows:
3. Select a / PRESETS / button that you want to re-record and label. The display shows, for example.:
4. Use the joystick to change the text. Pan movement controls the cursor position. Tilt movement overwrites the
text.
5. To store Press the / PROGRAM / REC / button. The display shows:
6. Repeat steps 3 to 5 to assign the next / PRESETS / buttons.
7. Turn the unit off.

2.2.5 Master Dimmer

Preset channel 16 is leased as standard to the master dimmer. This means that any other preset fader can be
subordinated to it. This is especially useful if the headlamp does not have its own master dimmer or if you want to
operate the headlamp in a mode in which it does not provide its own master dimmer (such as an RGB LED
Slider Function
Slider 7 G-GOBO
Slider 8 STROBE
Slider 9 ZOOM
Slider 10 FOCUS
Slider 11 IRIS
Slider 12 PRISM
23
217
235
253
271
Slider
Slider 13
Slider 14
Slider 15
Function
RPRISM
SHUT
FUN
