Mounting
• Mark through the screw holes where you will make the
corresponding bore holes.
– If you are mounting the bracket on the ceiling, use
the hole in the middle of the bracket's top piece.
– For wall mounting, use the two holes in the side
piece.
Make sure that the wall or ceiling is able to carry a load
at the points where you have marked your bore holes
and that no electricity, gas, water or drain lines, etc. run
there.
• Bore a 5 mm hole to a minimum depth of 35 mm at each
marked position and insert the supplied plugs.
• Position the wall/ceiling bracket above the bore holes and
attach it using the supplied screws.

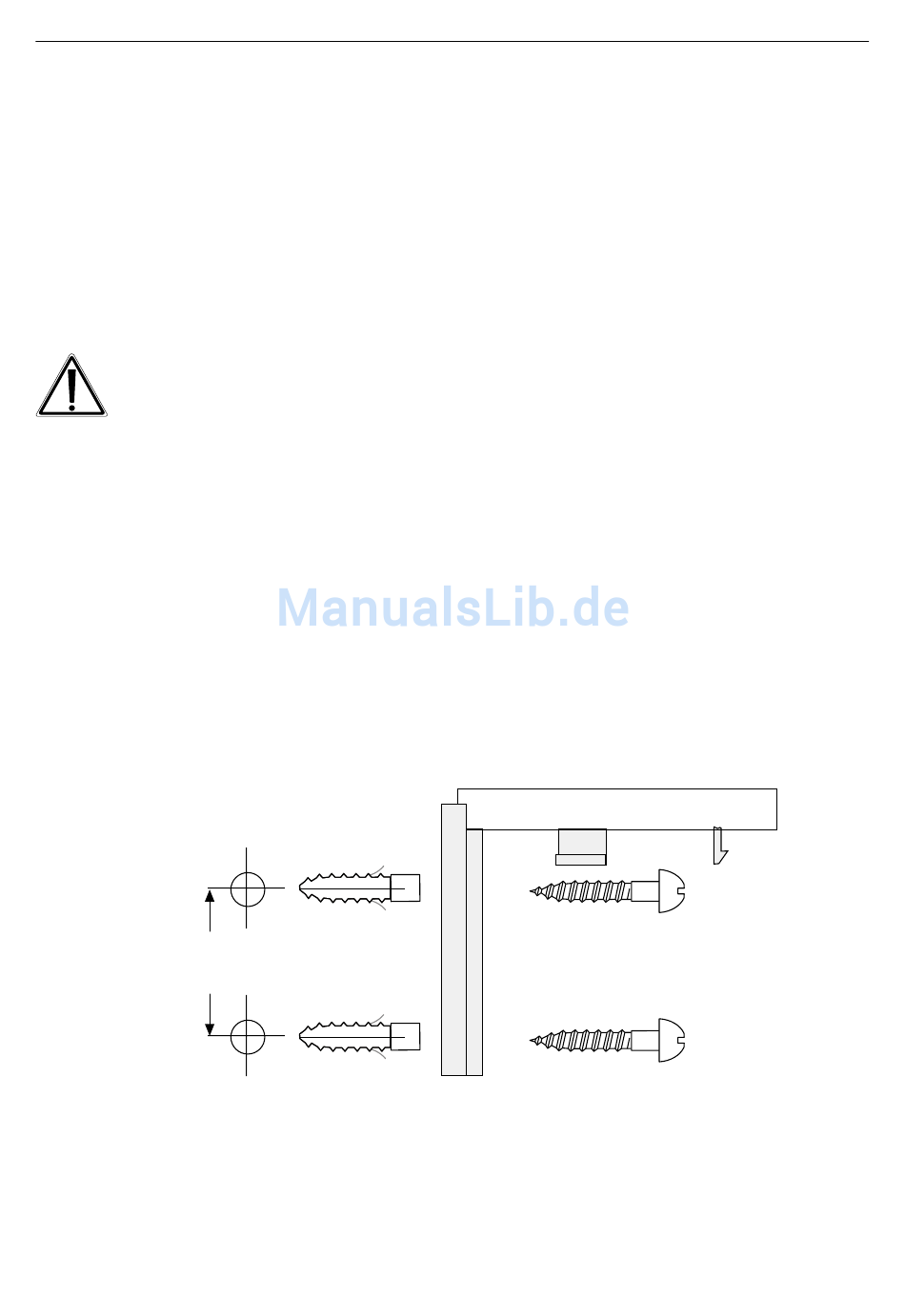

Wall mounting
ø 5 mm
20 mm
42
ø 5 mm
