Side View; Front View - Siemens simovert masterdrives Betriebsanleitung

Installation
Installation
Mounting surface
250 mm
220 mm

Side view

5-2
Cooling air

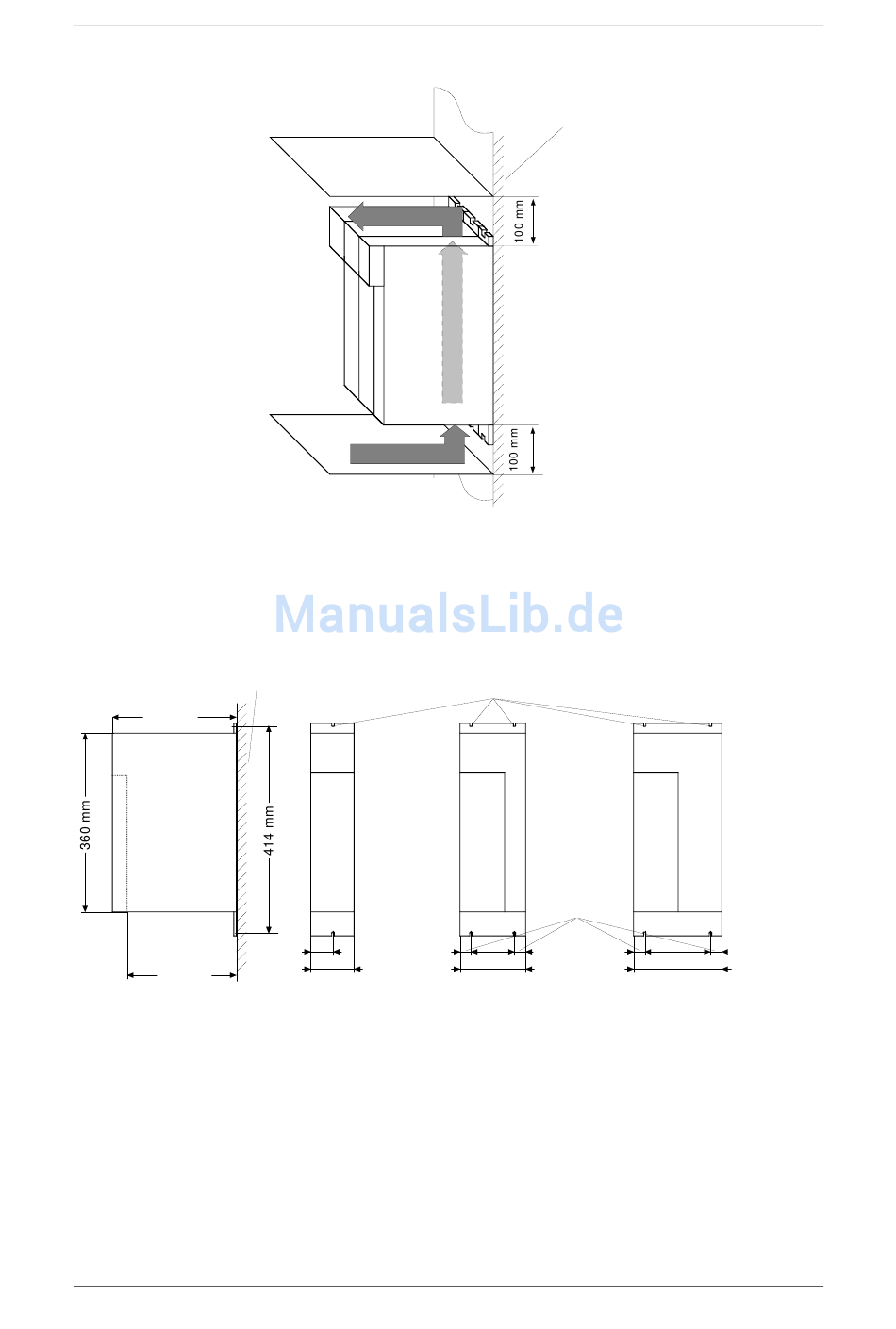

Fig. 5-1 Minimum clearances for cooling
The units are installed directly on a mounting surface. Fixing is by
means of two or four M5 screws.
45 mm
90 mm
15 kW
Fig. 5-2 Dimension drawing of the rectifier units
Mounting
surface
Cutouts for
M5 screw
20 mm
135 mm
50 kW

Front view

6SE7087-6NP85-0AA0
Operating Instructions
05.2005
180 mm
100 kW
