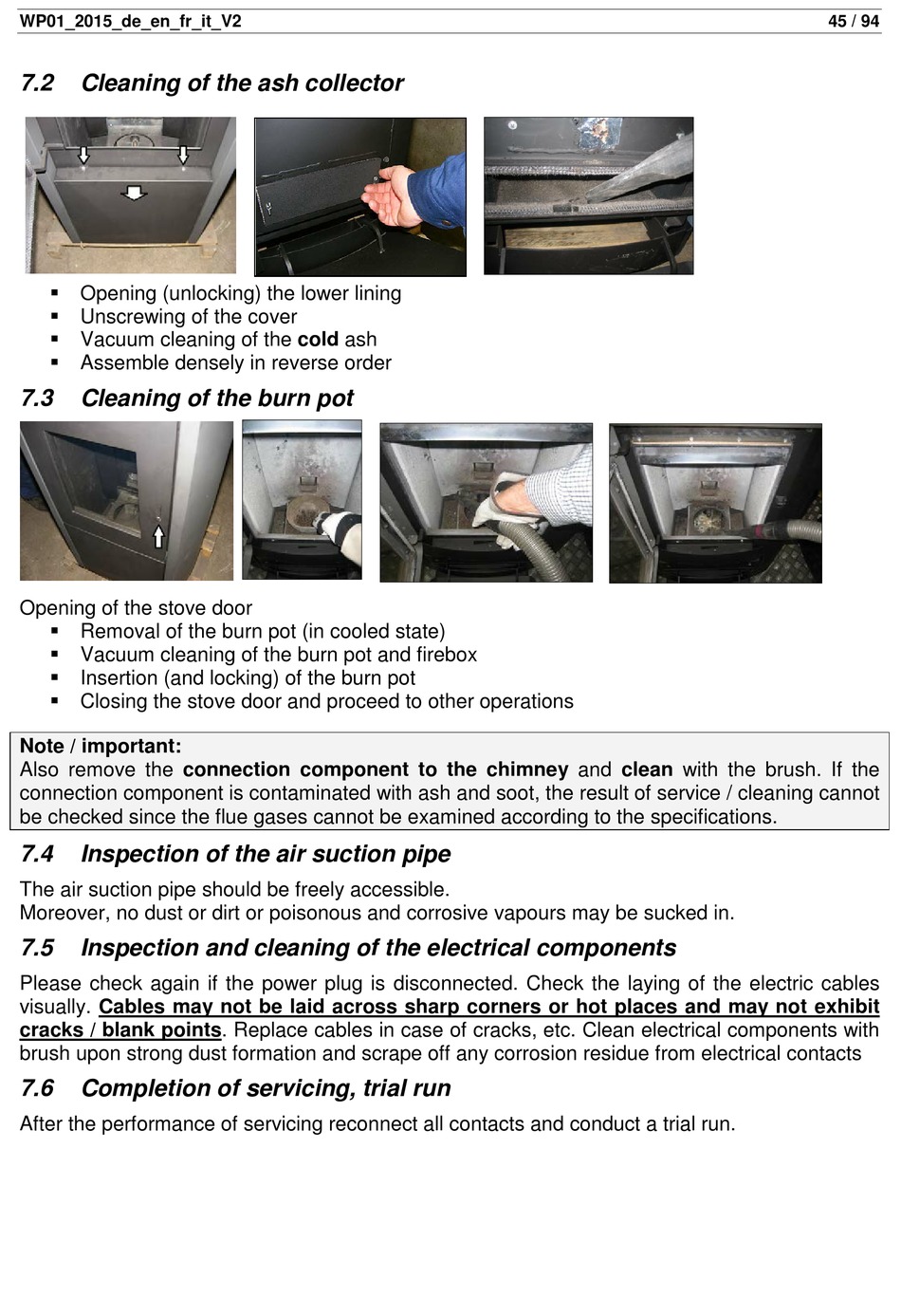

7.2

Cleaning of the ash collector

 Opening (unlocking) the lower lining
 Unscrewing of the cover
 Vacuum cleaning of the cold ash
 Assemble densely in reverse order
7.3

Cleaning of the burn pot

Opening of the stove door
 Removal of the burn pot (in cooled state)
 Vacuum cleaning of the burn pot and firebox
 Insertion (and locking) of the burn pot
 Closing the stove door and proceed to other operations
Note / important:
Also remove the connection component to the chimney and clean with the brush. If the
connection component is contaminated with ash and soot, the result of service / cleaning cannot
be checked since the flue gases cannot be examined according to the specifications.
7.4

Inspection of the air suction pipe

The air suction pipe should be freely accessible.
Moreover, no dust or dirt or poisonous and corrosive vapours may be sucked in.
7.5

Inspection and cleaning of the electrical components

Please check again if the power plug is disconnected. Check the laying of the electric cables
visually. Cables may not be laid across sharp corners or hot places and may not exhibit
cracks / blank points. Replace cables in case of cracks, etc. Clean electrical components with
brush upon strong dust formation and scrape off any corrosion residue from electrical contacts
7.6

Completion of servicing, trial run

After the performance of servicing reconnect all contacts and conduct a trial run.
