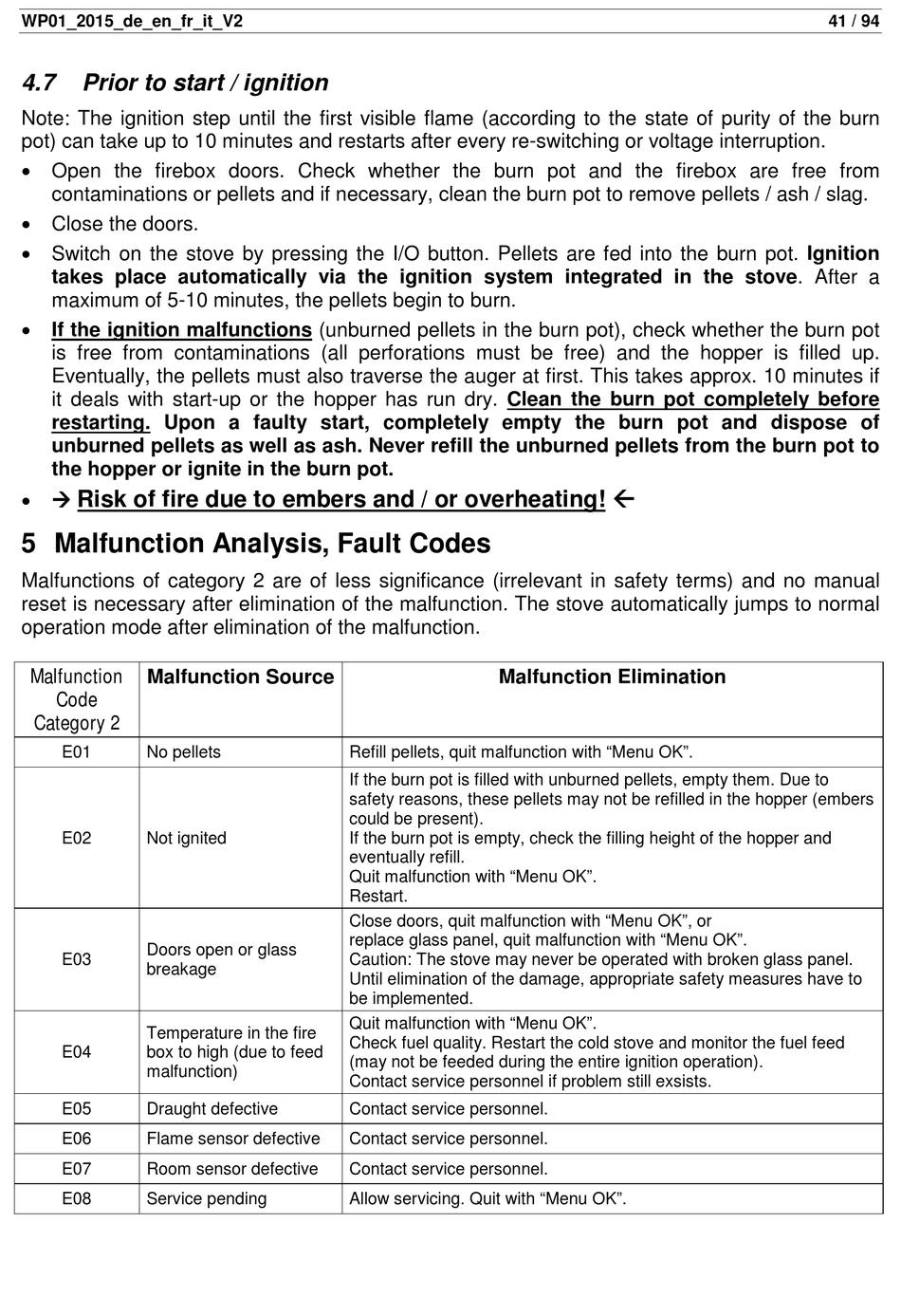

4.7

Prior to start / ignition

Note: The ignition step until the first visible flame (according to the state of purity of the burn
pot) can take up to 10 minutes and restarts after every re-switching or voltage interruption.
• Open the firebox doors. Check whether the burn pot and the firebox are free from
contaminations or pellets and if necessary, clean the burn pot to remove pellets / ash / slag.
• Close the doors.
• Switch on the stove by pressing the I/O button. Pellets are fed into the burn pot. Ignition
takes place automatically via the ignition system integrated in the stove. After a
maximum of 5-10 minutes, the pellets begin to burn.
• If the ignition malfunctions (unburned pellets in the burn pot), check whether the burn pot
is free from contaminations (all perforations must be free) and the hopper is filled up.
Eventually, the pellets must also traverse the auger at first. This takes approx. 10 minutes if
it deals with start-up or the hopper has run dry. Clean the burn pot completely before
restarting. Upon a faulty start, completely empty the burn pot and dispose of
unburned pellets as well as ash. Never refill the unburned pellets from the burn pot to
the hopper or ignite in the burn pot.
Risk of fire due to embers and / or overheating! 
• 

5 Malfunction Analysis, Fault Codes

Malfunctions of category 2 are of less significance (irrelevant in safety terms) and no manual
reset is necessary after elimination of the malfunction. The stove automatically jumps to normal
operation mode after elimination of the malfunction.
Malfunction
Malfunction Source
Code
Category 2
E01 No pellets
E02 Not ignited
Doors open or glass
E03
breakage
Temperature in the fire
E04 box to high (due to feed
malfunction)
E05 Draught defective
E06 Flame sensor defective
E07 Room sensor defective
E08 Service pending
Malfunction Elimination
Refill pellets, quit malfunction with "Menu OK".
If the burn pot is filled with unburned pellets, empty them. Due to
safety reasons, these pellets may not be refilled in the hopper (embers
could be present).
If the burn pot is empty, check the filling height of the hopper and
eventually refill.
Quit malfunction with "Menu OK".
Restart.
Close doors, quit malfunction with "Menu OK", or
replace glass panel, quit malfunction with "Menu OK".
Caution: The stove may never be operated with broken glass panel.
Until elimination of the damage, appropriate safety measures have to
be implemented.
Quit malfunction with "Menu OK".
Check fuel quality. Restart the cold stove and monitor the fuel feed
(may not be feeded during the entire ignition operation).
Contact service personnel if problem still exsists.
Contact service personnel.
Contact service personnel.
Contact service personnel.
Allow servicing. Quit with "Menu OK".
