KNF-MOTOR M 56 EX
1
Motorwelle
2
Klemmkastendeckel
3
Kabelverschraubung
(M 16 x 1,5)
4
Kabelverschraubung
(M 16 x 1,5)
5
Kondensator
6
Kondensatorbefestigungs-
schelle (Rohrschelle)
7
Motorfuß
8
Typenschild
9
Lüfterhaube
1
Motorwelle
2
Klemmkastendeckel
3
Kabelverschraubung
(M 16 x 1,5)
4
Verschlussstopfen
(M 16 x 1,5)
5
Motorfuß
6
Typenschild
7
Lüfterhaube
Original-Betriebs- und Montageanleitung, deutsch, KNF 121220-121647 09/17
5.
Aufbau

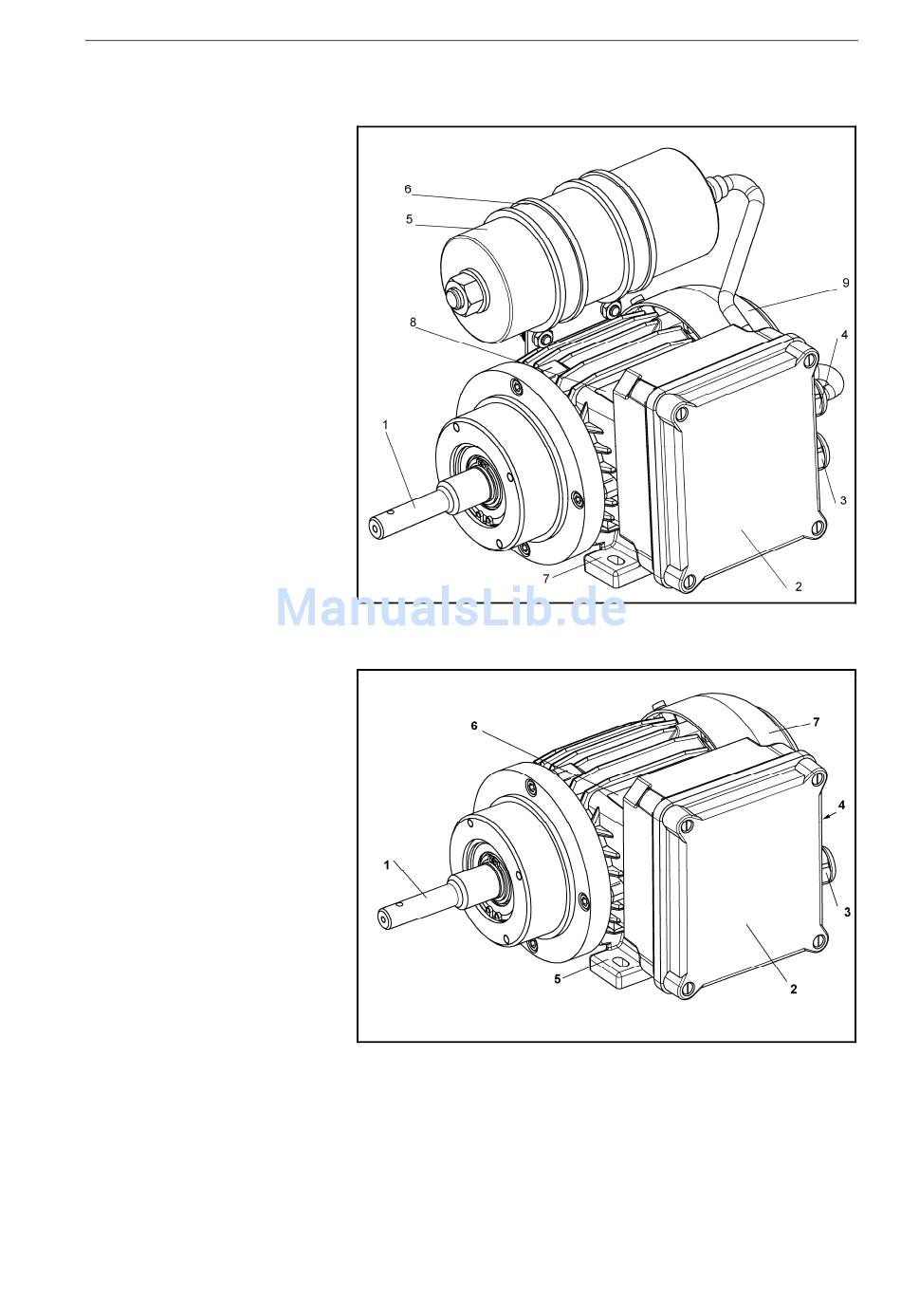

Fig. 1: KNF-Kondensatormotor M 56 Ex-Ausführung
Fig. 2: KNF-Drehstrommotor M 56 Ex-Ausführung
Aufbau
11
