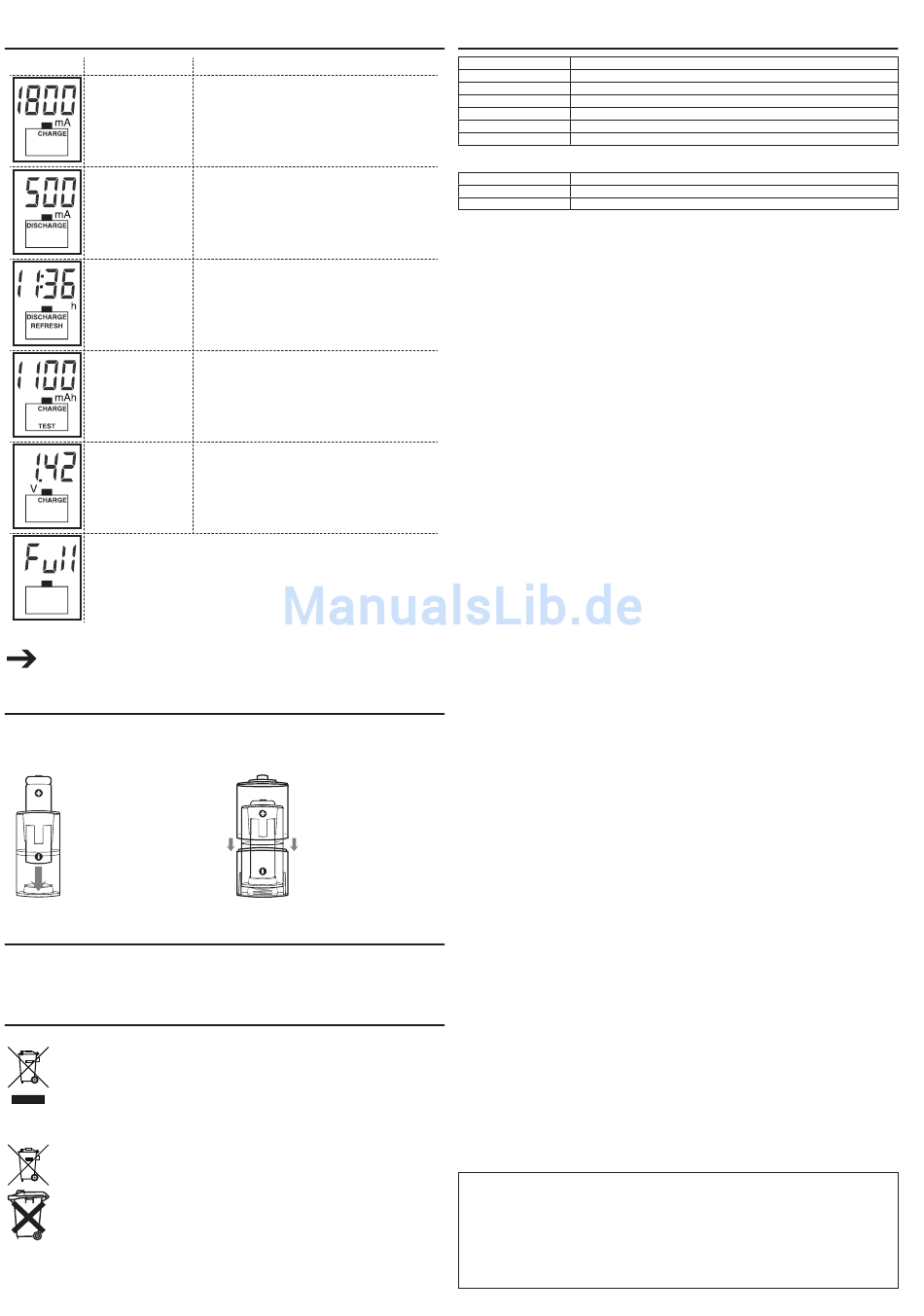

7. oPERATIoN MoDES AND DISPLAyS
Display Measured value
Charging current:
The instantaneous
charging current is
displayed.
Discharging current:
The instantaneous
discharging current is
displayed.
Time elapsed*:
The charging/ discharging
time of the last cycle is
displayed.
Accumulated capacities:
The accumulated battery
capacity is displayed in
mAh or Ah.
Charging voltage:
The instantaneous
charging voltage is
displayed.
After the rechargeable battery is fully charged in any of the operation modes, trickle
charging will be started automatically.
Trickle charging prevents the rechargeable batteries from being overcharged and
compensates for self-discharging of the rechargeable batteries.
The timer will resume and count from 00:00 again after the time elapsed is longer than 20 hours.
(For example, 1:45 will be shown if the time elapsed is 21 hours and 45 minutes)
8. TyPE C AND D BATTERy ADAPTERS
The battery adapters are used for connecting the AA battery to the electric devices requiring Size C or D
batteries. To apply the adapter:
Install the AA battery to Size C or Size D adapter as below.
The AA battery used with the
type C adapter
9.

MAINTENANCE

• The device is maintenance-free but should be cleaned occasionally.
• When cleaning, the device must be removed from any power source.
• Only use dry and soft cloth to clear the housing of the charger. Do not use abrasive or solvents!
10. DISPoSAL
General
In order to preserve, protect and improve the quality of environment, protect human health and
utilise natural resources prudently and rationally, the user should return unserviceable product to
relevant facilities in accordance with statutory regulations.
The crossed-out wheeled bin indicates the product needs to be disposed separately and not as
municipal waste.
Batteries / rechargeable batteries
The user is legally obliged (battery regulation) to return used batteries and rechargeable batteries.
Disposing used batteries in the household waste is prohibited! Batteries/ rechargeable
batteries containing hazardous substances are marked with the crossed-out wheeled bin. The
symbol indicates that the product is forbidden to be disposed via the domestic refuse. The
chemical symbols for the respective hazardous substances are Cd = Cadmium, Hg = Mercury,
Pb = Lead.
You can return used batteries/ rechargeable batteries free of charge to any collecting point of your
local authority, our stores or where batteries/ rechargeable batteries are sold.
Consequently you comply with your legal obligations and contribute to environmental protection!
Operation modes
Charging mode:
The rechargeable battery is charged up to its maximum
capacity. The process starts automatically at 200mA or select
500, 700, 1000, 1500 or 1800mA for faster charging times.
1500 and 1800mA are only available if one or two batteries
are inserted in slot 1 and/or slot 4.
Discharging mode:
It is used to reduce the memory effect. The rechargeable
battery is discharged to a preset battery voltage. The
discharging current can be set to 100, 250, 350 or 500mA.
Once discharging is nished, the battery will be charged at
double the selected discharging current.
Refresh mode:
The rechargeable battery is charged and discharged
repeatedly to optimise to its maximum capacity.
Old rechargeable batteries, or rechargeable batteries that
have not been used for a long period of time can be restored
to their rated capacity.
Test mode:
Checks the present capacity of a rechargeable battery.
The maximum capacity is determined by discharging the
rechargeable battery after it was fully charged.
If the maximum capacity is much lower than the rated
capacity then it may reach the end of its lifetime.
The AA battery used with the
type D adapter (place the
battery into the "C" adapter first
and then the "D" adapter)
11.

TECHNICAL DATA

Operating Voltage: 3 V
Charging current range: 200 to 1800 mA
Discharging current range: 100 to 500 mA
Max. charging capacity: 3000 mAh
Fuse: 250 V, 2 A
Operating temperature: 0 to +40 ºC
Dimensions (W x H x D): 75 +x 129 x 37 mm
Power adapter
Input voltage: 100 – 240 V/AC, 50/60 Hz
Output voltage: 3.0 V/DC
Output current: 4.0 A
These operating instructions are published by Voltcraft®,
Lindenweg 15, D-92242 Hirschau/ Germany, Phone +49 180 586 582 7.
All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the
capture in electronic data processing systems require the prior written approval by the editor. Reprinting,
also in part, is prohibited.
The operating instructions reflect the current technical specifications at time of print.
We reserve the right to change the technical or physical specifications.
© Copyright 2011 by Voltcraft®.
