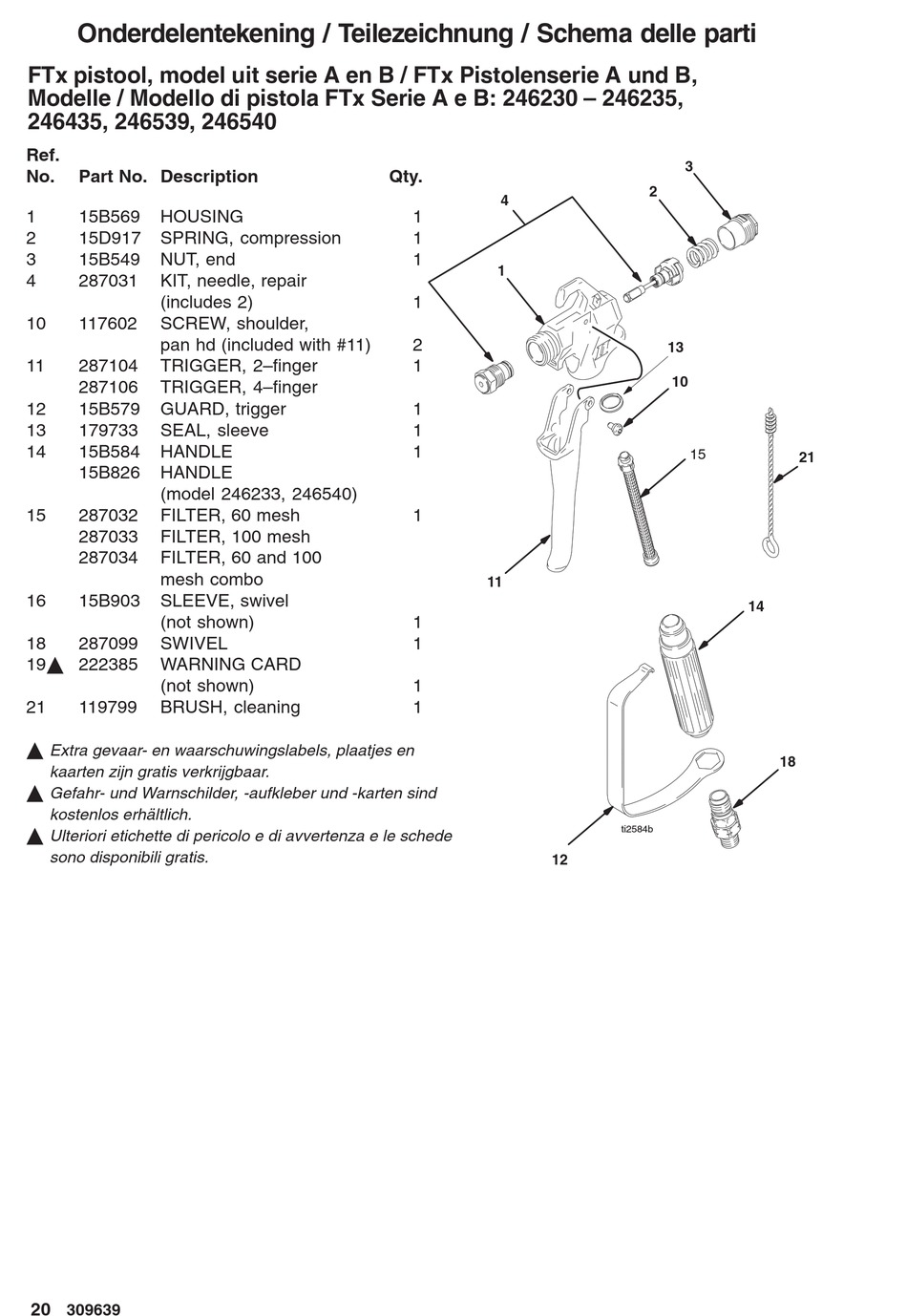

Onderdelentekening / Teilezeichnung / Schema delle parti
FTx pistool, model uit serie A en B / FTx Pistolenserie A und B,
Modelle / Modello di pistola FTx Serie A e B: 246230 – 246235,
246435, 246539, 246540
Ref.
No. Part No. Description
1 15B569 HOUSING
2 15D917 SPRING, compression
3 15B549 NUT, end
4 287031 KIT, needle, repair
(includes 2)
10 117602 SCREW, shoulder,
pan hd (included with #11)
11 287104 TRIGGER, 2–finger
287106 TRIGGER, 4–finger
12 15B579 GUARD, trigger
13 179733 SEAL, sleeve
14 15B584 HANDLE
15B826 HANDLE
(model 246233, 246540)
15 287032 FILTER, 60 mesh
287033 FILTER, 100 mesh
287034 FILTER, 60 and 100
mesh combo
16 15B903 SLEEVE, swivel
(not shown)
18 287099 SWIVEL
19Y 222385 WARNING CARD
(not shown)
21 119799 BRUSH, cleaning
Y
Extra gevaar- en waarschuwingslabels, plaatjes en
kaarten zijn gratis verkrijgbaar.
Y
Gefahr- und Warnschilder, -aufkleber und -karten sind
kostenlos erhältlich.
Y
Ulteriori etichette di pericolo e di avvertenza e le schede
sono disponibili gratis.
20
309639
Qty.
4
1
1
1
1
1
2
1
1
1
1
1
11
1
1
1
1
12
3
2
13
10
15
14
18
ti2584b
21
