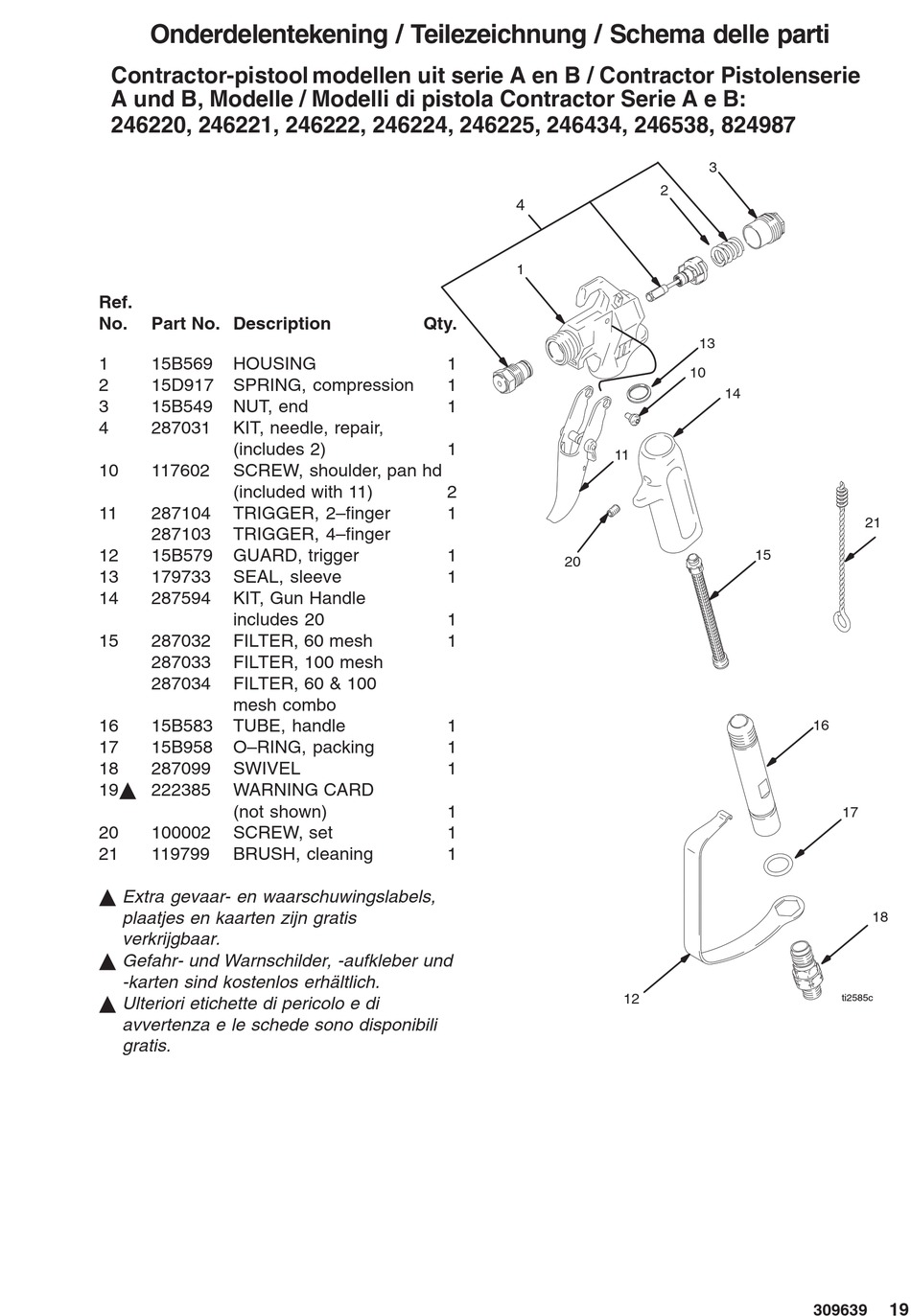

Onderdelentekening / Teilezeichnung / Schema delle parti
Contractor-pistool modellen uit serie A en B / Contractor Pistolenserie
A und B, Modelle / Modelli di pistola Contractor Serie A e B:
246220, 246221, 246222, 246224, 246225, 246434, 246538, 824987
Ref.
No. Part No. Description
1 15B569 HOUSING
2 15D917 SPRING, compression
3 15B549 NUT, end
4 287031 KIT, needle, repair,
(includes 2)
10 117602 SCREW, shoulder, pan hd
(included with 11)
11 287104 TRIGGER, 2–finger
287103 TRIGGER, 4–finger
12 15B579 GUARD, trigger
13 179733 SEAL, sleeve
14 287594 KIT, Gun Handle
includes 20
15 287032 FILTER, 60 mesh
287033 FILTER, 100 mesh
287034 FILTER, 60 & 100
mesh combo
16 15B583 TUBE, handle
17 15B958 O–RING, packing
18 287099 SWIVEL
19Y 222385 WARNING CARD
(not shown)
20 100002 SCREW, set
21 119799 BRUSH, cleaning
Y Extra gevaar- en waarschuwingslabels,
plaatjes en kaarten zijn gratis
verkrijgbaar.
Y Gefahr- und Warnschilder, -aufkleber und
-karten sind kostenlos erhältlich.
Y Ulteriori etichette di pericolo e di
avvertenza e le schede sono disponibili
gratis.
4
1
Qty.
1
1
1
1
2
1
1
20
1
1
1
1
1
1
1
1
1
3
2
13
10
14
11
15
12
21
16
17
18
