Configuration
Scale

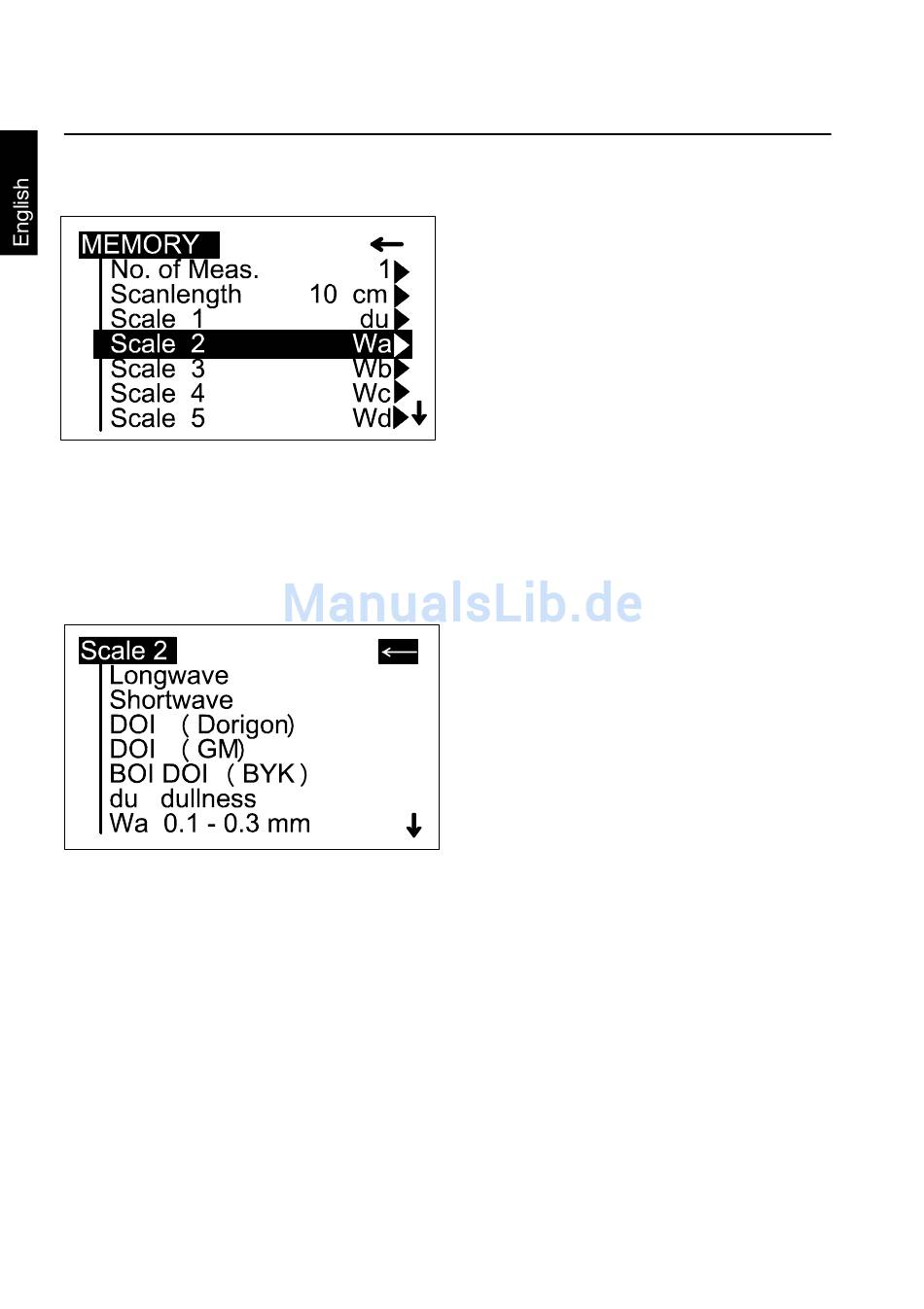

Up to 10 scales may be selected for
the display of the measurement
results.
Select the desired scale to be
changed and press the operate
button.
Following scales are available:
Longwave
Shortwave
The classical scales
Longwave (1,2 - 12 mm) and
Shortwave (0,3 - 1.2 mm)
DOI (Dorigon)
Correlation to ASTM E 430, value
range similar to 20° gloss.
DOI (GM)
GM specification
DOI (BYK)
Higher resolution but lower values than
DOI (Dorigon)
du
Dullness, fine structures smaller than
0.1 mm
Wa...We
The structure spectrum is evaluated by
applying filter functions to the
measured optical profile. The values
Wa...We stand for the respective
wavelength/range.
(0...100)
(0...100)
(47...96)
(47...96)
(30...100)
(1...100)
(0...100)
