Location Of Controls - Sharp PG-C20XU, PG-C20XE Handbuch

PG-C20XU
PG-C20XE
AN-Z7T

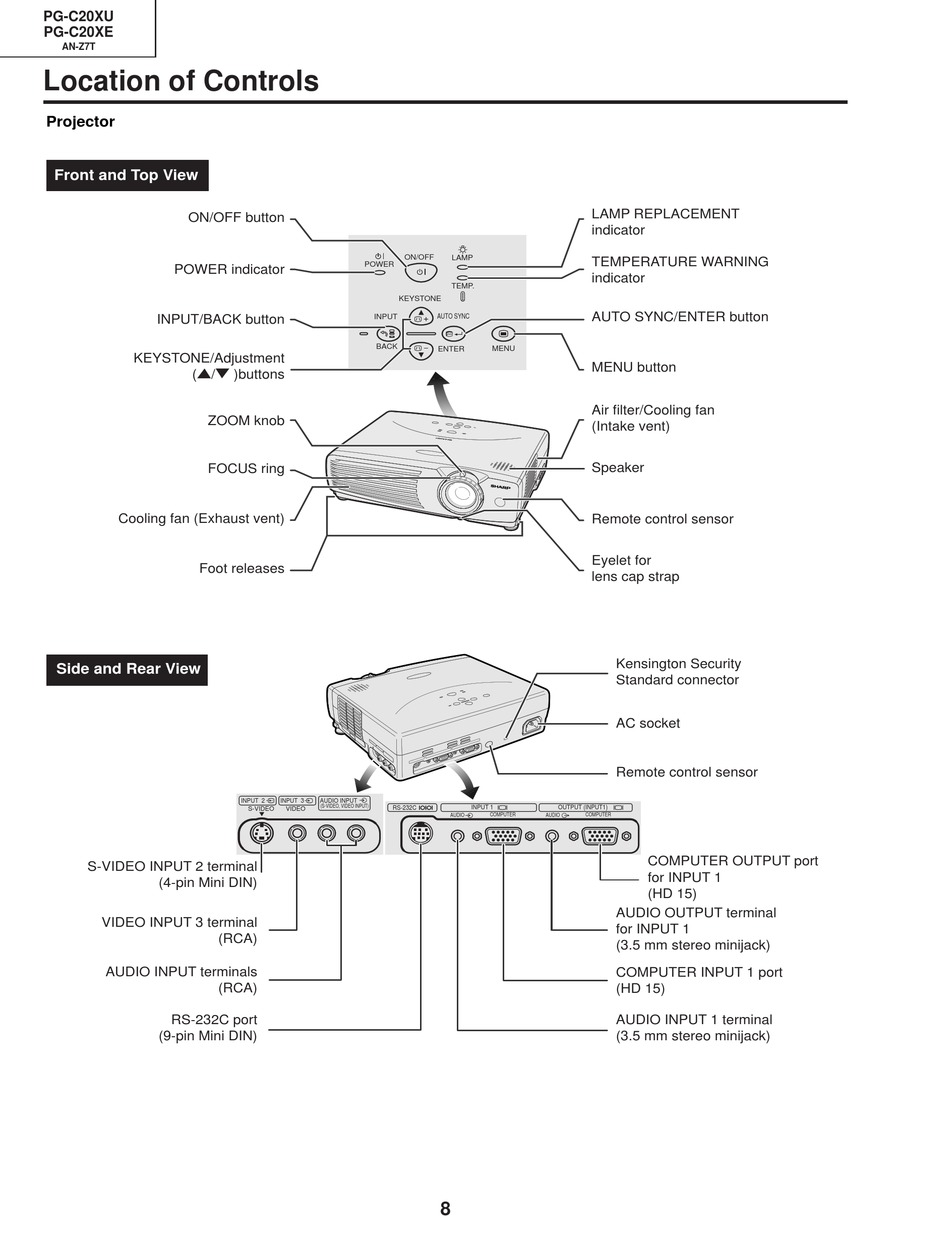

Location of Controls

Projector
Front and Top View
ON/OFF button
POWER indicator
INPUT/BACK button
KEYSTONE/Adjustment
(]/[ )buttons
ZOOM knob
FOCUS ring
Cooling fan (Exhaust vent)
Foot releases
Side and Rear View
S-VIDEO INPUT 2 terminal
(4-pin Mini DIN)
VIDEO INPUT 3 terminal
(RCA)
AUDIO INPUT terminals
(RCA)
RS-232C port
(9-pin Mini DIN)
ON/OFF
POWER
KEYSTONE
INPUT
BACK
INPUT 2 INPUT 3 AUDIO INPUT
(S-VIDEO, VIDEO INPUT)
RS-232C
S-VIDEO VIDEO
LAMP REPLACEMENT
indicator
LAMP
TEMPERATURE WARNING
indicator
TEMP.
AUTO SYNC/ENTER button
AUTO SYNC
MENU
ENTER
MENU button
Air filter/Cooling fan
(Intake vent)
Speaker
Remote control sensor
Eyelet for
lens cap strap
Kensington Security
Standard connector
AC socket
Remote control sensor
INPUT 1 OUTPUT (INPUT1)
COMPUTER COMPUTER
AUDIO AUDIO
AUDIO OUTPUT terminal
for INPUT 1
(3.5 mm stereo minijack)
COMPUTER INPUT 1 port
(HD 15)
AUDIO INPUT 1 terminal
(3.5 mm stereo minijack)
8
COMPUTER OUTPUT port
for INPUT 1
(HD 15)
