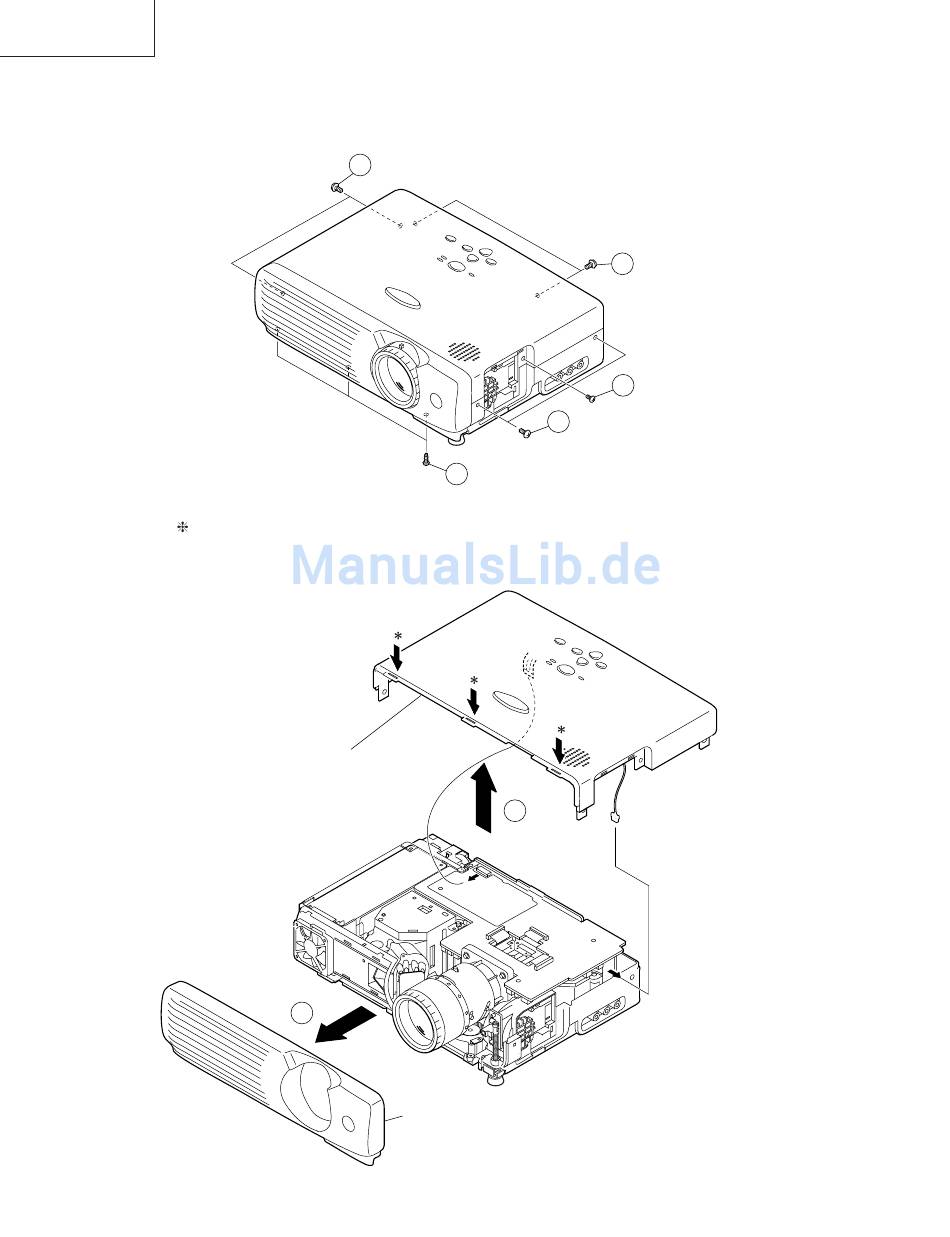

2. Removing the front and top panels
2-1. Remove the three lock screws (silver) from the front panel.
2-2. Remove the seven lock screws (silver) from the top panel.
2-3. Press the
-marked spots of the top panel to unhook the claws, and detach the top panel.
2-4. Slowly lift the top panel, disconnect the connectors from the control panel and speaker, and lift up the top
panel.
2-2
2-1
Top panel
2-3
Front Panel
14
2-2
2-2
2-2
2-4
