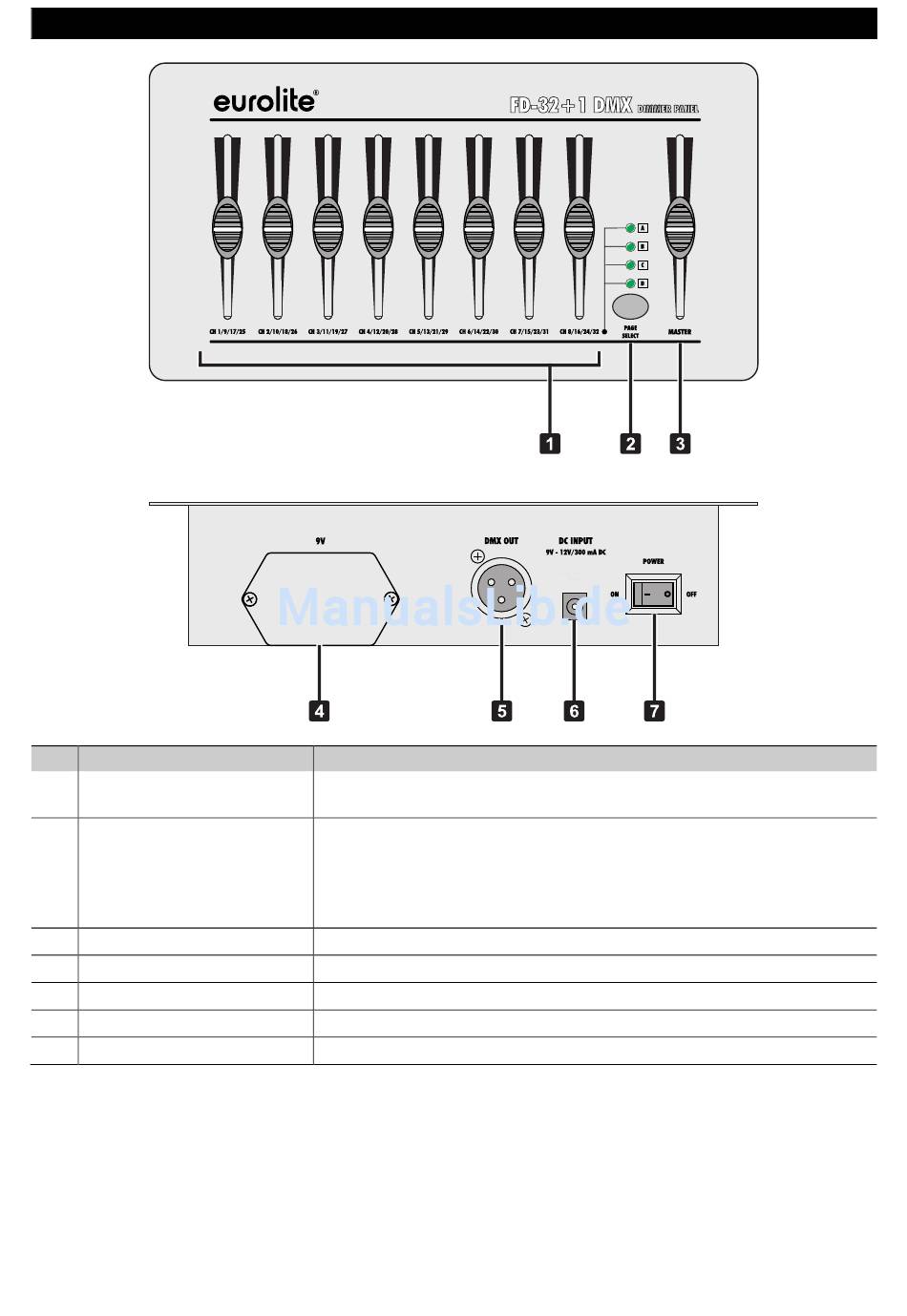

No. Element
1 Channel faders
2 PAGE SELECT button
3 Master fader
4 Battery compartment
5 DMX output
6 Power input
7 Power on/Off

OPERATING ELEMENTS AND CONNECTIONS

Function
For adjusting the DMX values of the connected DMX fixtures. The faders
are split into 4 pages so that a total of 32 DMX fixtures can be controlled.
To switch the channel faders between the four fixture pages.
• LED A lights: page A is selected (fixture 1-8).
• LED B lights: page B is selected (fixture 9-16).
• LED C lights: page C is selected (fixture 17-24).
• LED D lights: page D is selected (fixture 25-32).
This fader controls all channels simultaneously.
Insert a 9 V battery for battery operation here.
Connects the DMX input of the first fixture in the DMX chain.
Plug in the mains cable of the power adapter here.
Switches the controller on and off.
