Product- and functional description

Introduction This section will give you a description of the CDF 10 and its functionality.
Description of CDF 10 is working in accordance with the condensation principle. The humid air is
function drawn into the unit by a fan. When passing through the evaporator the air is cooled
down to below dew point and water vapor is condensed into water, which is drained
away. The now dry air is then passed over the condenser coil where the air is heated.
As a result of the released evaporator heat and the working energy of the compressor
being turned into heat energy, more heat is returned to the air than was previously ext-
racted. This extra heat corresponds to an approximate increase in temperature of 5 °C.
The repeated circulation of air through the unit reduces the relative humidity, giving ve-
ry rapid but gentle drying.

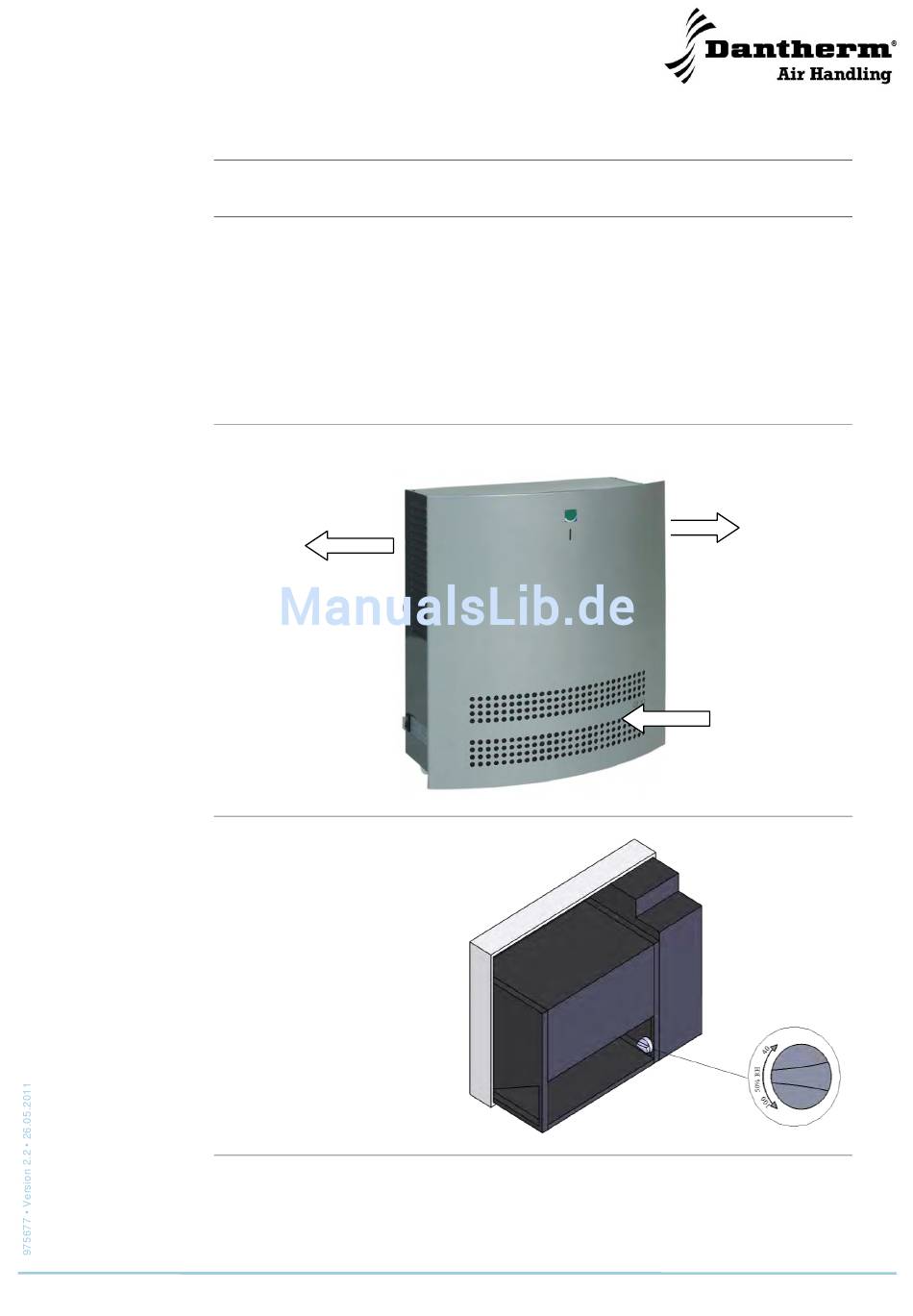

Air flow
The following illustrates the air flow:
Built-in hygrostat The dehumidifier is controlled by
a built-in hygrostat that is set to
approx. 50 % RH. When the hyg-
rostat registers a relative humidi-
ty of more than 50 %RH, the
compressor and the fan automa-
tically switch on and the dehumi-
difier starts to dehumidify.
The front panel has to be
removed before adjusting the
hygrostat. The hygrostat is
located under the control box and
can be adjusted by turning the
set screw.
Continued overleaf
