Start-up

4.1 Settings on the heat pump manager

ATTENTION!
For the evaluation of the pulses, the heat pump manager (WPM2006/2007)
requires software version H61 or higher. The current software version of
the heat pump manager can be checked in the "Operating data" menu. If
an older software version is present, an update is required.
The counting of the pulses if activated during pre-configuration
(see Fig 5: ). In the "Operating data" (see Fig 6: ) menu and the

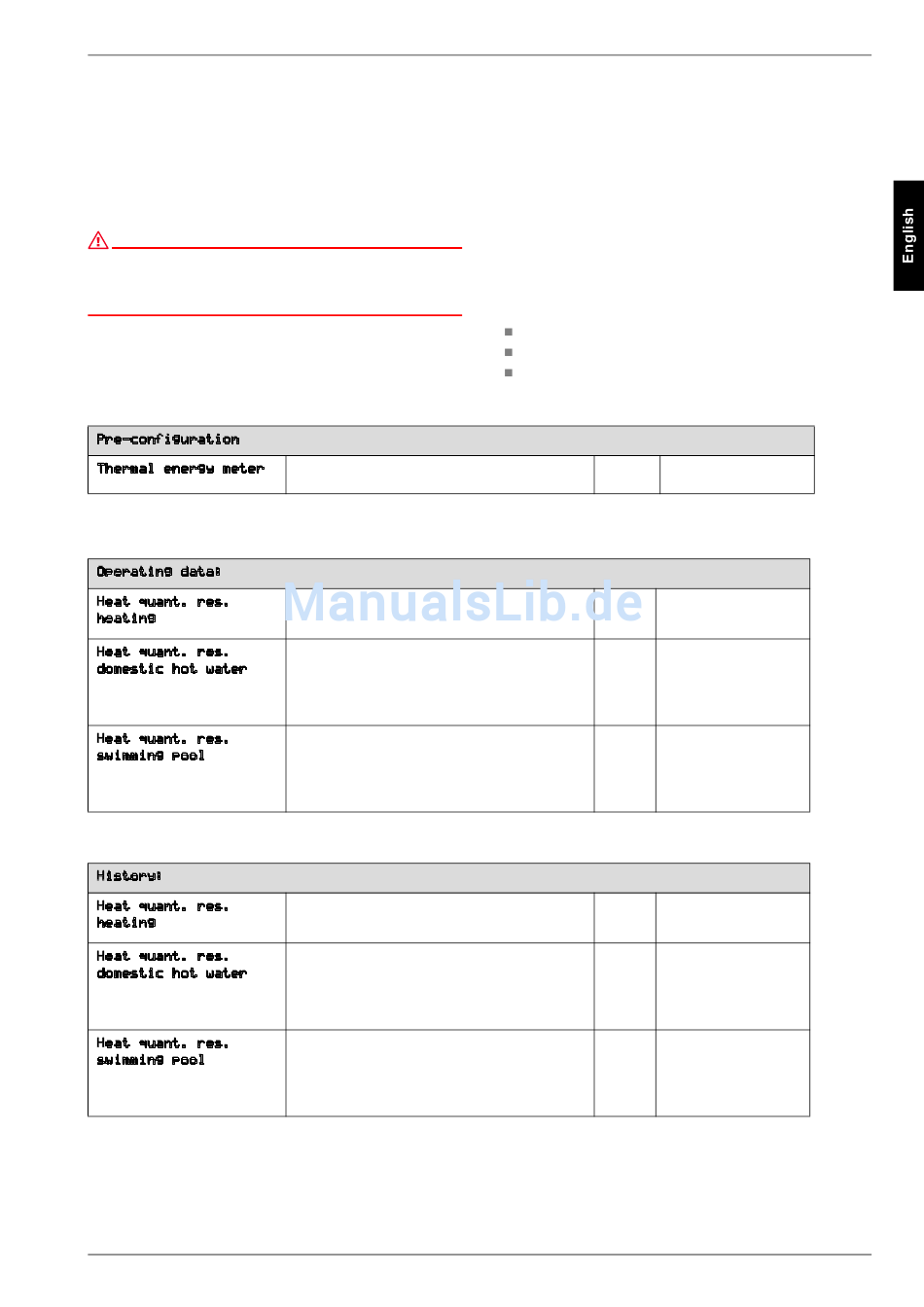

Fig 5: Heat pump manager display: Pre-configuration
Fig 6: Heat pump manager display, operating data:
Fig 7: Heat pump manager display: History
Has a WMZ 25 and/or WMZ 32 been installed in the heating
system?
The pulses detected at digital input N1/J7-ID12 are added
together when the heat pump is operating in heating mode.
The quantity of thermal energy displayed can be reset here
The pulses detected at digital input N1/J7-ID12 are added
together when the heat pump is operating in domestic hot
water mode. For heat pumps with additional heat exchanger,
the pulses at digital input N2/J5-ID6 are added together during
domestic hot water preparation. The quantity of thermal energy
displayed can be reset here
The pulses detected at digital input N1/J7-ID12 are added
together when the heat pump is operating in domestic hot
water mode. For heat pumps with additional heat exchanger,
the pulses at digital input N2/J5-ID6 are added together during
domestic hot water preparation. The quantity of thermal energy
displayed can be reset here.
The pulses detected at digital input N1/J7-ID12 are added
together when the heat pump is operating in heating mode.
The quantity of thermal energy displayed can be reset here
The pulses detected at digital input N1/J7-ID12 are added
together when the heat pump is operating in domestic hot
water mode. For heat pumps with additional heat exchanger,
the pulses at digital input N2/J5-ID6 are added together during
domestic hot water preparation. The quantity of thermal energy
displayed can be reset here
The pulses detected at digital input N1/J7-ID12 are added
together when the heat pump is operating in domestic hot
water mode. For heat pumps with additional heat exchanger,
the pulses at digital input N2/J5-ID6 are added together during
domestic hot water preparation. The quantity of thermal energy
displayed can be reset here.
"History" (see Fig 7: ) of the heat pump manager (user level), the
current total thermal energy is displayed in kWh.
The counter can be reset in the "Operating data" menu!
3 independent thermal energy meters are displayed by the heat
pump manager:
Thermal energy, heating
Thermal energy, domestic hot water
Thermal energy, swimming pool
No always
Yes
Thermal energy meter
Thermal energy meter,
domestic hot water
Thermal energy meter, swim-
ming pool
Thermal energy meter
Thermal energy meter,
domestic hot water
Thermal energy meter, swim-
ming pool
