3.4. ETHERNET port for programming and control

A RJ45 connector (13) allows to connect the device to an Ethernet network:
•
Management from the EclerNet Manager application. See the EclerNet Manager application
manual for more information.
•
Direct connection (point-to-point) of a computer/WPmSCREEN unit to a DUO-NET PLAYER unit.
•
One or more DUO-NET units and other EclerNet devices can be connected to a computer and
one or more WPmSCREEN units in order to create an EclerNet project through an Ethernet
network composed of one or more Ethernet switches and Ethernet network cabling.
•
Connecting to third party devices for remote management and integration to other electronic
systems (Crestron, AMX, Vity, Medialon, etc. Trademarks registered by their manufacturers).
Used protocol: Ecler TP-NET. Refer to the TP-NET protocol manual for more information.

3.5. GPI remote control ports

The rear panel of the DUO-NET PLAYER offers 4 GPI inputs (14) for 0-10VDC continuous
voltage control. Each of these inputs can be connected to an external physical device (contact closure,
switch, sensor, etc.) and assigned to a DUO-NET PLAYER function, such as:
•
MUTE or SOLO On/Off using a switch or contact closure
•
Recalling a preset using a switch or contact closure
•
Triggering pre-recorded messages with or without priority
•
Etc.
GPI connectors use 3-position screw terminal blocks (Euroblocks). The wiring is as follows:
Power
GPI terminal
Ground
Connecting cables can be up to 500 meters long with a minimum section of 0.5 mm
Please consult your ECLER dealer or www.ecler.com about the WPm series remote control wall
panels and other accessories available for connection to the GPI/REMOTE/VCA ports.
6
> Terminal +
> Terminal 1, 2, 3 or 4
Terminal ⊥
>

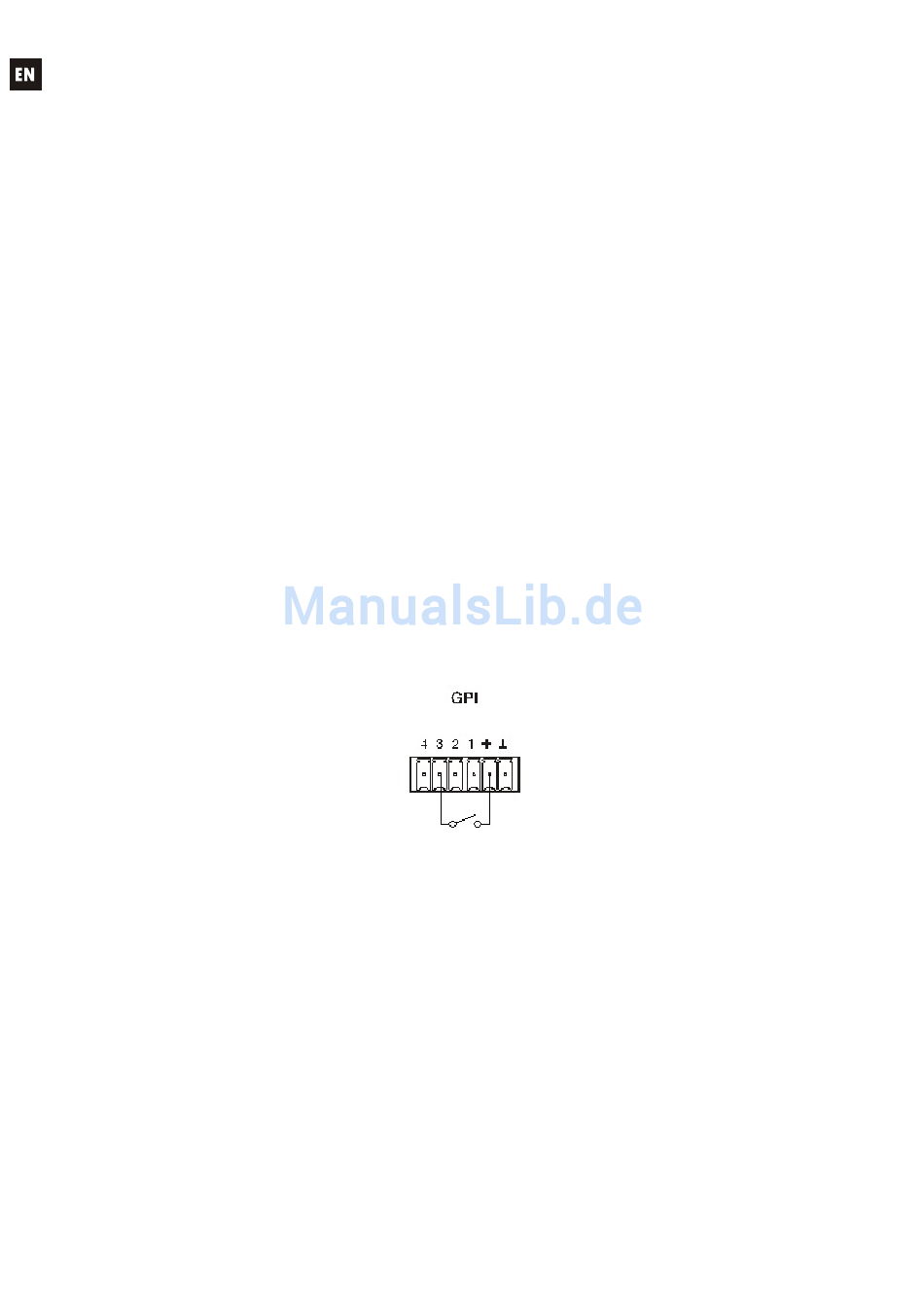

Example of connection: GPI 3
